TrakMotive

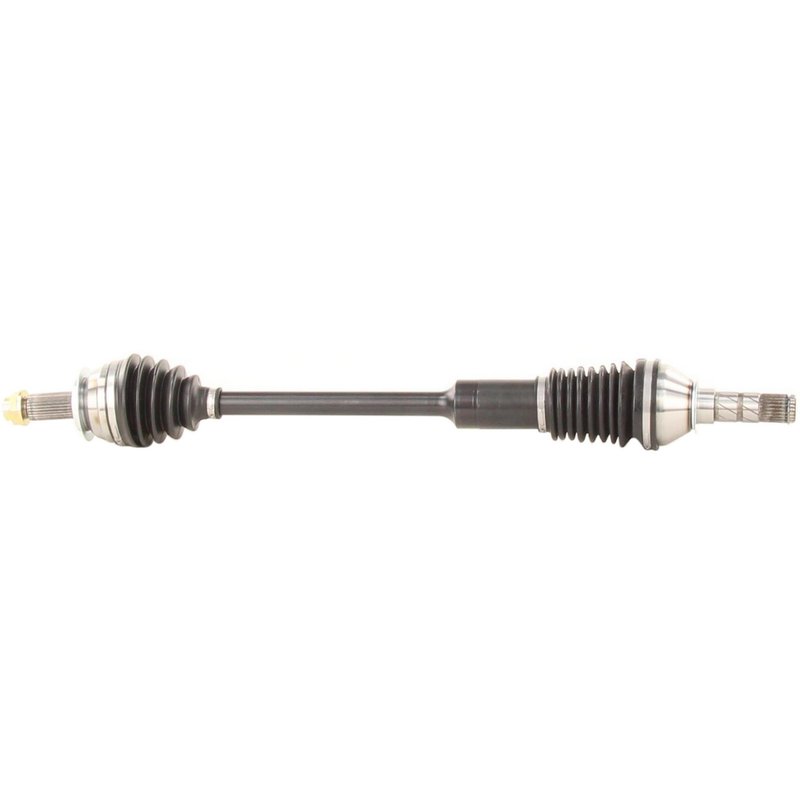

Extended Travel CV Axle ShaftTrakMotive SB-8047XTT CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SB-8047XTT |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.51 |
| Overall Compressed Length (mm) | 775 |
| Product line | Extended Travel CV Axle Shaft |
| Fits | Subaru · 58 vehicles |
Extended travel design. Sliding center bar adds up to 44mm more travel than a typical OEM CV shaft.
Greater articulation. CV joints reach up to 47 degrees for more suspension movement.
Includes axle nut. Comes with a hex nut with stake locking and M22 x 1.5 threads.
Cross-references TrakMotive SB-8047XTT for the same application. See all 1.
$172.39Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
Extended Travel CV Axle for Subaru Fitments
TrakMotive SB-8047XTT is an extended travel CV axle shaft built for Subaru applications that need more suspension movement than a standard OE axle can provide. It is designed for front left and front right positions on select Subaru Impreza, Legacy, and Outback models, including vehicles used for extreme articulation.
The Extended Travel CV Axle Shaft line adds a sliding center bar for up to 44 mm more travel than an OEM CV shaft, while the CV joints can reach up to a 47-degree articulation angle versus a typical 23-degree OE joint angle. That makes this TrakMotive SB-8047XTT a fitment-focused driveline part for Subaru Impreza, Legacy, and Outback front axle service where suspension travel is a priority.
- Extended travel design with a sliding center bar
- Up to 44 mm more travel than a standard OEM CV shaft
- Up to 47-degree CV joint articulation angle
- New CV axle shaft with neoprene boot material
- Includes axle nut with M22 x 1.5 thread size
- Male inboard shaft connection and conventional outboard shaft connection
- Overall compressed length: 30.51 in. (775 mm)
- Inboard splines: 25; outboard splines: 27
Use this extended travel axle when the vehicle needs additional driveline movement at the front suspension without binding at higher articulation angles. The TrakMotive SB-8047XTT is built for Subaru front axle applications where the OE shaft geometry is not enough for lifted or heavily articulated setups. This part cross-references TrakMotive SB-8047XTT for the same application.
Fitment Details
- Fits 2008-2011 Subaru Impreza, front right; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2008-2011 Subaru Impreza, front left; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2005-2009 Subaru Legacy, front right; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2005-2009 Subaru Legacy, front left; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2009 Subaru Legacy, front right; with Vehicle Dynamic Control; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2008-2009 Subaru Legacy, front left; with Vehicle Dynamic Control; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2005-2009 Subaru Outback, front right; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2005-2009 Subaru Outback, front left; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2008 Subaru Legacy, front right; except GT B-Spec; with Vehicle Dynamic Control; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2007 Subaru Legacy, front right; except B-Spec; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
- Fits 2007 Subaru Legacy, front left; except B-Spec; for extreme articulation; always replace in pairs; extended travel CV axle shaft.
Common Problems This Axle Can Address
- Front axle binding during suspension compression or droop
- CV joint angle limitations on lifted or articulated Subaru setups
- Noise or vibration from a worn front CV axle shaft
- Need for a replacement axle with extended travel geometry
- Front driveline service on Subaru Impreza, Legacy, or Outback models
Installation Notes
Verify axle nut thread size, spline count, and position before installation. This axle uses a hex axle nut with stake locking, and the included nut is M22 x 1.5. Confirm front left or front right application against the vehicle’s exact trim and equipment, especially on Legacy models with Vehicle Dynamic Control or B-Spec/GT B-Spec notes.
Quality Assurance
TrakMotive manufactures this as a new CV axle shaft in the Extended Travel CV Axle Shaft line, using an extended-travel design intended for higher articulation than a standard OE shaft. The part is built to match the listed Subaru fitments and driveline specifications.
This part fits 58 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2011 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Subaru | Impreza | 2.5i | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Subaru | Impreza | 2.5i | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Subaru | Impreza | — | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Subaru | Impreza | — | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5i | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5i | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | Outback Sport | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5i | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5i | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Impreza | 2.5 GT | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Manual | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Manual | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Right | w/ Vehicle Dynamic Control; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Left | w/ Vehicle Dynamic Control; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | WRX | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | Sport | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | Sport | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | Outback Sport | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Impreza | 2.5i | — | — | 2.5L | H4 | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Manual | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Manual | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Right | Exc. GT B-Spec; w/ Vehicle Dynamic Control; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Legacy | — | AWD | Automatic | — | — | Front Left | w/ Vehicle Dynamic Control; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | GT | — | — | — | — | Front Right | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | GT | — | — | — | — | Front Left | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | GT Limited | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | GT Limited | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i | AWD | Manual | — | — | Front Right | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i | AWD | Manual | — | — | Front Left | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i Special Edition | AWD | Manual | — | — | Front Right | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Legacy | 2.5i Special Edition | AWD | Manual | — | — | Front Left | Exc. B-Spec; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Legacy | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Legacy | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Legacy | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Legacy | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | — | — | — | Front Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | — | — | — | Front Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| No rows match your filter. | |||||||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — SB-8047XTT
