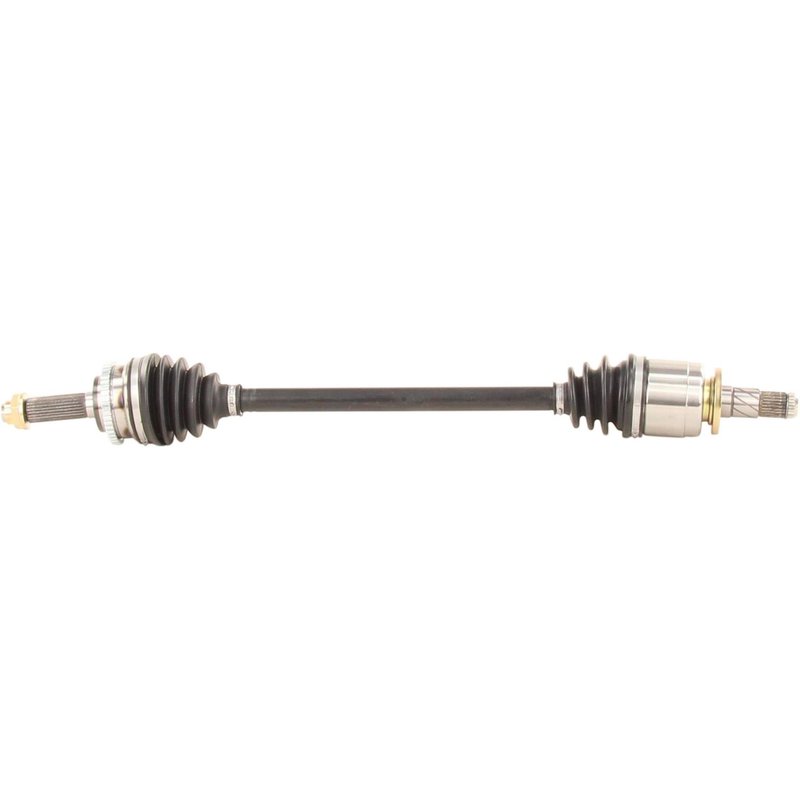

TrakMotive SB-8049 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft SB-8049

The TrakMotive CV Axle Shaft SB-8049 is engineered for reliable driveline performance in Subaru Legacy and Outback models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Subaru Legacy and Outback vehicles
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 44-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 30.04 inches (763 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes durability and precise engineering, including features such as ABS tone rings and robust boot materials. The SB-8049 model exemplifies these standards with its integrated ABS ring and neoprene boot, ensuring consistent performance and longevity in Subaru driveline applications.

Technical Specifications and Features

This CV axle shaft includes a 44-tooth toothed ABS ring with an included tone ring, which supports accurate wheel speed sensor readings for ABS systems. The axle nut is a hex type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to secure the nut firmly in place. Both inboard and outboard joints feature 25 splines, with the inboard joint designed as a male type and the outboard joint as conventional. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Subaru Legacy and Outback
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

Ensure compatibility by verifying the part number SB-8049 against your Subaru Legacy or Outback model year and drivetrain configuration. Use proper torque specifications when installing the axle nut to avoid damage. The stake locking type nut requires staking after tightening to prevent loosening. Inspect the CV boot for any damage during installation and replace if necessary to maintain joint integrity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SB-8049 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes an ABS tone ring for system compatibility and comes with an included axle nut to ensure a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
