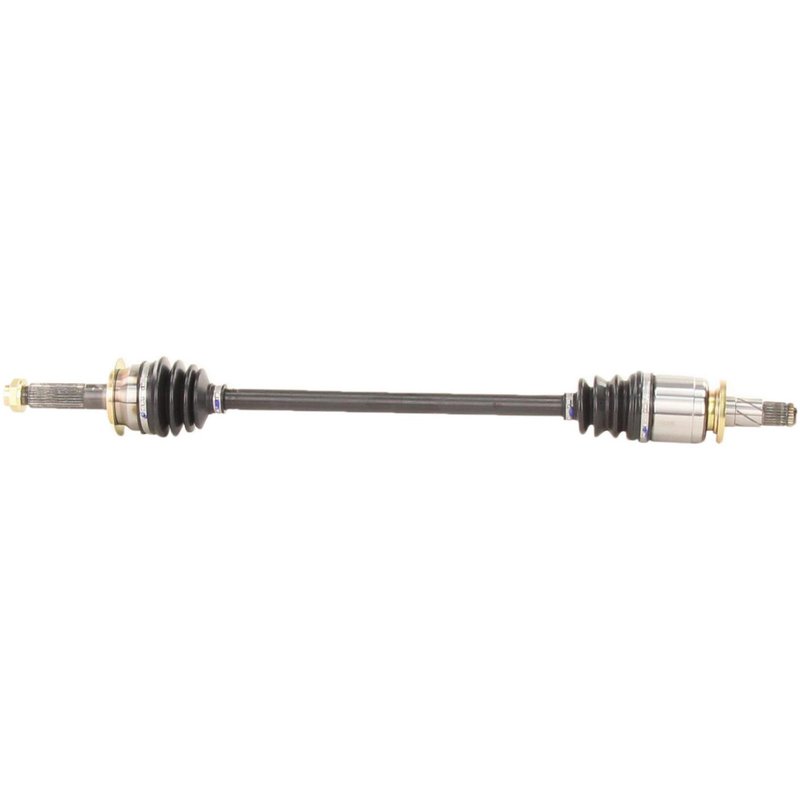

TrakMotive SB-8063 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft SB-8063

The TrakMotive CV Axle Shaft SB-8063 is designed specifically for Subaru models including Crosstrek, Forester, Impreza, WRX, WRX STI, and XV Crosstrek. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Subaru Crosstrek, Forester, Impreza, WRX, WRX STI, and XV Crosstrek
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut measuring 1 1/4 inch (31.8 mm) across flats
• Overall compressed length of 31.26 inches (794 mm)
• Male inboard joint with 25 splines and conventional outboard joint with 27 splines

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft SB-8063 is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components engineered for specific vehicle applications. This axle shaft is new and features a neoprene boot that resists wear and environmental damage. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring proper engagement and smooth power transfer.

The included axle nut is a hex head type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and a length of 1 1/3 inch (34.4 mm). It uses a stake locking mechanism and has an M22x1.5 thread size, providing secure fastening to the vehicle hub assembly. The overall compressed length of the axle shaft is 31.26 inches (794 mm), matching factory specifications for the listed Subaru models.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Subaru Crosstrek, Forester, Impreza, WRX, WRX STI, and XV Crosstrek
• Addressing clicking or popping noises during turns caused by failing CV joints
• Fixing vibration or shuddering issues related to axle shaft imbalance or joint wear
• Repairing torn or leaking CV boots to prevent further driveline damage
• Restoring proper driveline function after axle shaft bending or impact damage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SB-8063, ensure the axle nut is torqued to the manufacturer’s specifications and properly staked to prevent loosening. The neoprene boot should be inspected for any damage during installation and replaced if necessary. Verify spline engagement on both inboard and outboard joints to avoid driveline vibration or premature wear. This axle shaft is designed for direct fitment on compatible Subaru models, simplifying the replacement process.

Quality Assurance and Warranty Information

TrakMotive CV Axle Shafts are manufactured to meet or exceed OEM standards for fit, form, and function. The SB-8063 is a new part, ensuring reliable performance and longevity. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
