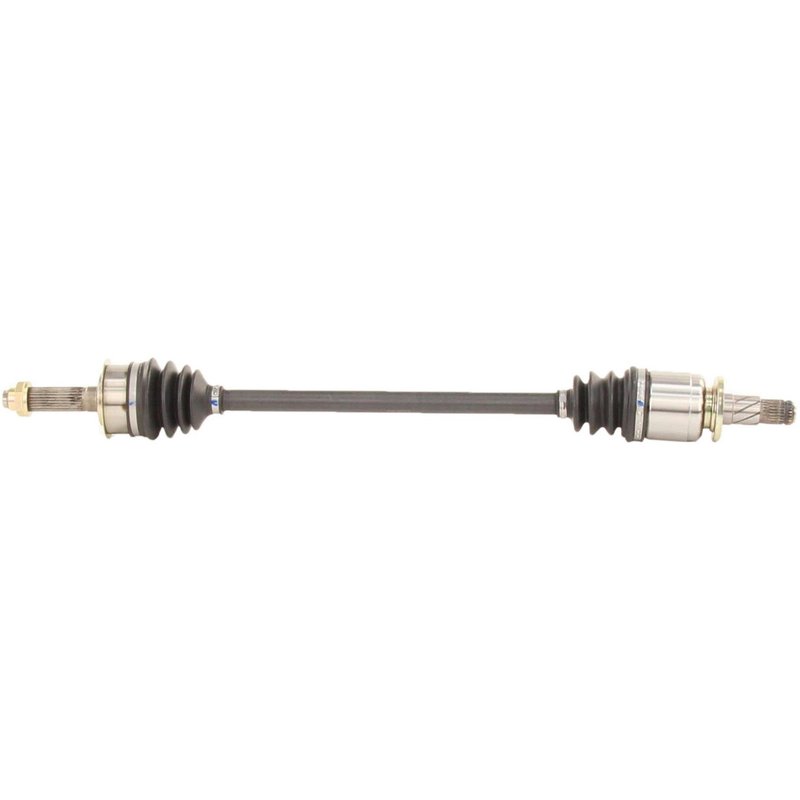

TrakMotive SB-8073 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive SB-8073 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.24 |
| Overall Compressed Length (mm) | 768 |
| Product line | CV Axle Shaft |
| Fits | Subaru · 20 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Conveniently supplied with a stake-locking hex nut.
Cross-references Cardone Reman 60-7375, TrakMotive SB-8073 and 28421AG00A for the same application. See all 6.
TrakMotive SB-8073 CV Axle Shaft
TrakMotive SB-8073 is a new CV axle shaft for rear applications on select Subaru Legacy and Subaru Outback models. It is built for direct replacement service with the correct spline counts, axle nut specification, and compressed length for the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SB-8073
- New axle shaft for rear right and rear left positions
- Overall compressed length: 30.24 in. (768 mm)
- 25 inboard splines and 25 outboard splines
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for rear driveline service on Subaru Legacy and Subaru Outback vehicles that match the listed fitment. The SB-8073 uses a male inboard connection, a conventional outboard shaft connection, and a 30.24-inch compressed length to match the original axle geometry for the specified applications. TrakMotive positions this CV axle shaft line as a new replacement solution backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
Fits 2008-2009 Subaru Legacy, rear right and rear left, w/o Vehicle Dynamic Control. Fits 2005-2009 Subaru Outback, rear right and rear left. Fits 2007 Subaru Legacy, rear right and rear left, exc. Outback. Fits 2005-2006 Subaru Legacy, rear right and rear left. This part cross-references Cardone Reman 60-7375 for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn boot conditions that expose the joint to contamination
- Excessive play in the rear driveline assembly
- Noise from a failing axle on Subaru Legacy or Subaru Outback rear positions
Installation Notes
Verify rear right or rear left placement, spline count, axle nut thread size, and compressed length before installation. Confirm whether the vehicle is equipped with Vehicle Dynamic Control, since 2008-2009 Legacy fitment excludes VDC-equipped models. The included axle nut uses a 1 1/4 in. hex size and stake locking design. ABS tone ring is not included.
Quality Assurance
TrakMotive identifies this CV axle shaft line as a new product and states that it is produced under ISO 9001:1007 and TS 16949:2009 certified quality systems. The SB-8073 is covered by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Subaru | Legacy | — | Automatic | Rear Right | w/o Vehicle Dynamic Control; CV Axle Shaft |
| 2009 | Subaru | Legacy | — | Automatic | Rear Left | w/o Vehicle Dynamic Control; CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | Rear Right | CV Axle Shaft |
| 2009 | Subaru | Outback | — | — | Rear Left | CV Axle Shaft |
| 2008 | Subaru | Legacy | — | Automatic | Rear Right | w/o Vehicle Dynamic Control; CV Axle Shaft |
| 2008 | Subaru | Legacy | — | Automatic | Rear Left | w/o Vehicle Dynamic Control; CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | Rear Right | CV Axle Shaft |
| 2008 | Subaru | Outback | — | — | Rear Left | CV Axle Shaft |
| 2007 | Subaru | Legacy | Wagon | Automatic | Rear Right | exc. Outback; CV Axle Shaft |
| 2007 | Subaru | Legacy | Sedan | Automatic | Rear Left | exc. Outback; CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | Rear Right | CV Axle Shaft |
| 2007 | Subaru | Outback | — | — | Rear Left | CV Axle Shaft |
| 2006 | Subaru | Legacy | — | Automatic | Rear Right | CV Axle Shaft |
| 2006 | Subaru | Legacy | — | Automatic | Rear Left | CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | Rear Right | CV Axle Shaft |
| 2006 | Subaru | Outback | — | — | Rear Left | CV Axle Shaft |
| 2005 | Subaru | Legacy | — | Automatic | Rear Right | CV Axle Shaft |
| 2005 | Subaru | Legacy | — | Automatic | Rear Left | CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | Rear Right | CV Axle Shaft |
| 2005 | Subaru | Outback | — | — | Rear Left | CV Axle Shaft |
