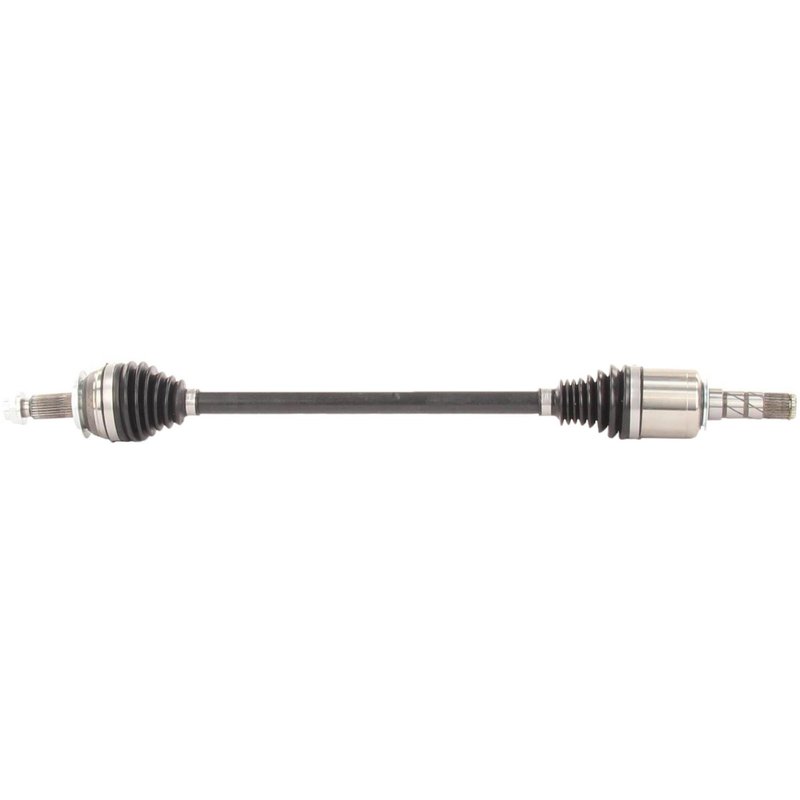

TrakMotive SB-8079HDX CV Axle Shaft - Front
Reliable CV Axle Shaft for Subaru Forester, Legacy, and Outback
The TrakMotive SB-8079HDX Extreme Climate CV Axle Shaft is engineered to provide dependable driveline performance for Subaru Forester, Legacy, and Outback models. Designed to withstand harsh conditions, this CV axle shaft ensures consistent power transfer and durability.
Key Features of the SB-8079HDX CV Axle Shaft
- Brand: TrakMotive, part of the Extreme Climate CV Axle Shaft line
- Compatible with Subaru Forester, Legacy, and Outback
- New, not remanufactured, for reliable performance
- Neoprene boot material for enhanced durability in extreme climates
- Axle nut included with stake locking type and hex head design
- Inboard joint type: Male with 25 splines
- Outboard joint type: Conventional with 27 splines
- Overall compressed length: 31.77 inches (807 mm)
- Overall extended length: 33.63 inches (854.5 mm)
About the Extreme Climate CV Axle Shaft Line
The Extreme Climate CV Axle Shaft line by TrakMotive is specifically designed to perform reliably in demanding weather and road conditions. This product line features components built with materials like neoprene boots that resist cracking and wear caused by temperature fluctuations, making it suitable for Subaru vehicles operating in colder or variable climates.
Detailed Product Description
The SB-8079HDX CV axle shaft is a precision-engineered driveline component tailored for Subaru Forester, Legacy, and Outback models. It features a male inboard joint with 25 splines and a conventional outboard joint with 27 splines, both connected via spline shaft styles to ensure secure fitment and smooth power transfer. The included axle nut has a hex head type with a 1.25-inch (31.8 mm) hex size and a stake locking mechanism, providing secure fastening. The neoprene boot material offers resistance to environmental damage, extending the service life of the axle shaft. With an overall compressed length of 31.77 inches and an extended length of 33.63 inches, this axle shaft fits the specified Subaru models accurately.
Common Applications and Issues Addressed
- Replacement for worn or damaged CV axle shafts on Subaru Forester, Legacy, and Outback
- Eliminates clicking or popping noises during turns caused by joint wear
- Resolves vibration or shuddering issues related to axle imbalance or joint failure
- Prevents grease leaks from torn or cracked CV boots
- Restores driveline integrity after axle shaft bending or breakage
Installation Notes and Tips
Ensure compatibility by verifying the part number SB-8079HDX with your Subaru Forester, Legacy, or Outback model year and specifications. Use proper tools to torque the included axle nut to manufacturer specifications, noting the stake locking type requires staking after tightening to prevent loosening. Inspect surrounding components such as wheel bearings and suspension parts during installation for optimal performance.
Quality Assurance and Warranty
The TrakMotive SB-8079HDX CV axle shaft is a new, high-quality replacement part manufactured to meet OEM standards. It is designed for durability and reliable operation under extreme climate conditions. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
| Brand | TrakMotive |
| Part Number | SB-8079HDX |
| Position | Extreme Climate CV Axle Shaft, Front |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.79 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.77 |
| Overall Compressed Length (mm) | 807 |
| Overall Extended Length (in) | 33.63 |
| Overall Extended Length (mm) | 854.5 |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Subaru | Forester | AWD | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2014 | Subaru | Legacy | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2014 | Subaru | Outback | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2013 | Subaru | Legacy | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2013 | Subaru | Outback | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2012 | Subaru | Legacy | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2012 | Subaru | Outback | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2011 | Subaru | Legacy | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2011 | Subaru | Outback | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2010 | Subaru | Legacy | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft | |
| 2010 | Subaru | Outback | Front | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
