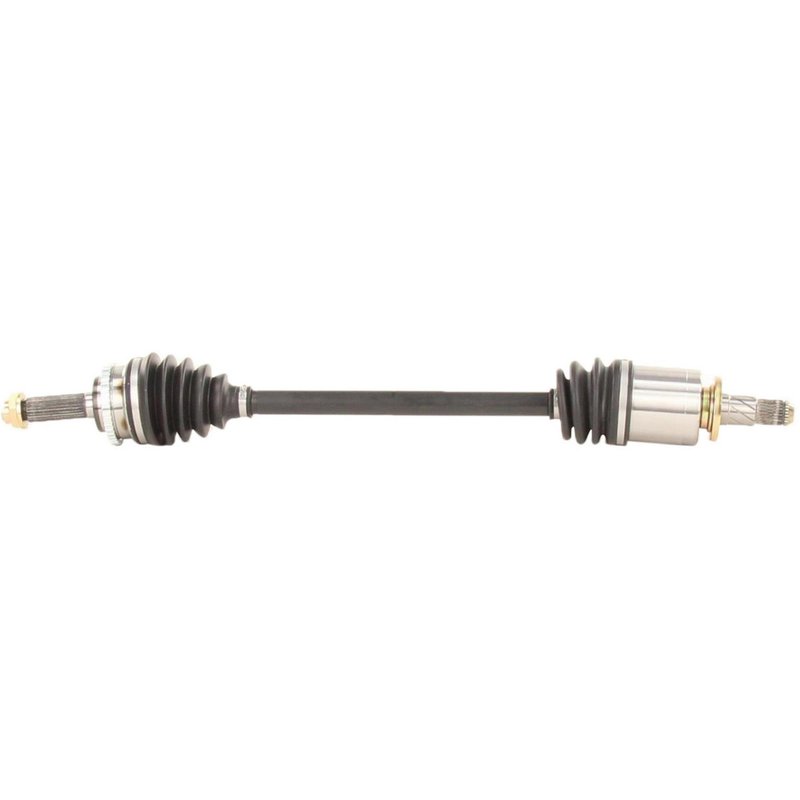

TrakMotive SB-8083 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft SB-8083

The TrakMotive CV Axle Shaft SB-8083 is engineered for reliable driveline performance in select Subaru vehicles. Designed specifically for Subaru Baja, Legacy, and Outback models, this CV axle shaft ensures proper fitment and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Subaru Baja, Legacy, and Outback models
• Includes a 44-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced durability and protection
• Axle nut included with stake locking type and hex head design
• Overall compressed length of 29.96 inches (761 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes durability and precise fitment, featuring components such as neoprene boots and ABS tone rings to maintain vehicle safety and driveline integrity. The SB-8083 model exemplifies these standards with its included axle nut and detailed spline counts for both inboard and outboard joints.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring with a toothed design, which is essential for accurate ABS sensor readings. The included ABS tone ring supports the vehicle's anti-lock braking system functionality. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to ensure secure installation. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. Both inboard and outboard joints have 25 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional type. The overall compressed length of 29.96 inches (761 mm) ensures compatibility with the specified Subaru models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Subaru Baja, Legacy, and Outback
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Addresses boot damage or leaks to prevent grease loss and joint failure
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before beginning installation. Verify the part number SB-8083 matches the vehicle application. Use proper torque specifications for the M22x1.5 axle nut and stake the nut as required to prevent loosening. Inspect the neoprene boot for any damage during installation and confirm the ABS tone ring is properly aligned with the sensor. Lubricate splines as recommended to facilitate smooth assembly.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SB-8083 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring and axle nut to ensure complete driveline functionality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
