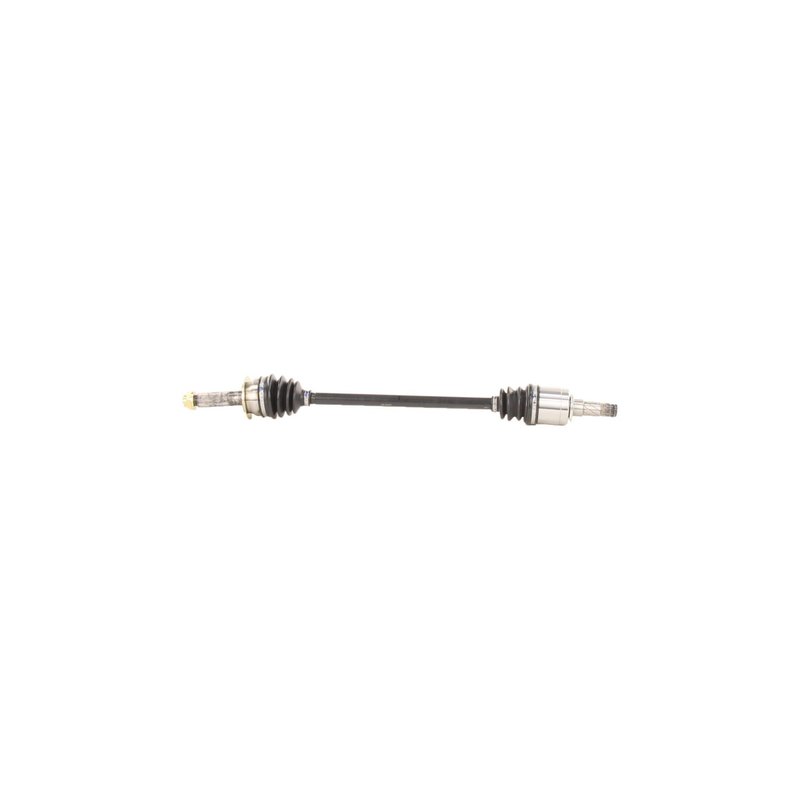

TrakMotive SB-8101 CV Axle Shaft - Rear Left or Rear Right

Brand	TrakMotive SB-8101
Position	Rear Right and Rear Left
Abs Tone Ring Included	No
Axle Nut Head Type	Hex
Axle Nut Height (in)	4/5
Axle Nut Height (mm)	20
Axle Nut Hex Size (in)	1 1/4
Axle Nut Hex Size (mm)	31.8
Axle Nut Included	Yes
Axle Nut Length (in)	1 1/3
Axle Nut Length (mm)	34.4
Axle Nut Locking Type	Stake
Axle Nut Thread Size	M22*1.5
Boot Material	Neoprene
Inboard Joint Type	Male
Inboard Shaft Connection Style	Male
New Or Remanufactured	New
Number Of Inboard Splines	25
Number Of Outboard Splines	27
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Spline
Overall Compressed Length (in)	30.63
Overall Compressed Length (mm)	778
Product line	CV Axle Shaft
Fits	Subaru · 15 vehicles

New replacement part. Built as a fresh CV axle shaft for dependable driveline service.

Neoprene boot. Helps protect the joint from dirt and moisture.

Axle nut included. Comes ready with a hex nut and stake-lock design.

Cross-references Cardone New 66-7425, TrakMotive SB-8101 and 60-7425 for the same application. See all 5.

$113.59Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

TrakMotive SB-8101 CV Axle Shaft

The TrakMotive SB-8101 CV axle shaft is a new rear axle assembly for select Subaru Impreza applications. It is built for 2012-2016 Subaru Impreza rear right and rear left positions, with fitment coverage that matches the listed vehicle configurations.

Key Features

New CV axle shaft for driveline replacement
Fits 2012-2016 Subaru Impreza, rear right
Fits 2012-2016 Subaru Impreza, rear left
Male inboard shaft connection with 25 inboard splines
Conventional outboard joint with spline connection and 27 outboard splines
Neoprene boot material for axle joint protection
Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
Overall compressed length: 30.63 in. (778 mm)
ABS tone ring not included

Product Details

TrakMotive CV Axle Shaft SB-8101 is a direct-fit driveline component for Subaru Impreza rear axle service. The axle uses a male inboard joint and a conventional outboard joint, with spline counts and compressed length specified to match the listed applications. This part cross-references Cardone New 66-7425 for the same application.

TrakMotive positions this CV axle shaft within its CV Axle Shaft line for replacement work where a new axle assembly is needed. The part is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company, and the product information notes a limited lifetime warranty.

Common Repair Uses

Restoring drivetrain operation after a worn or damaged axle shaft
Addressing clicking or popping noises during turns
Correcting vibration caused by CV joint wear
Replacing a leaking or torn axle boot assembly
Repairing axle-related noise in rear right or rear left Subaru Impreza applications

Installation Notes

Verify rear position, spline count, and axle nut specifications before installation. This axle includes the axle nut, which uses an M22 x 1.5 thread, 31.8 mm hex size, and stake-style locking design. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.

Quality Assurance

TrakMotive SB-8101 is a new part from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer information also lists a limited lifetime warranty.

This part fits 15 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Body Type	Transmission	Liters	Cylinders	Position	Notes
2016	Subaru	Impreza	Sedan	Manual	2.0L	H4	Rear Right	CV Axle Shaft
2016	Subaru	Impreza	Sedan	Manual	2.0L	H4	Rear Left	CV Axle Shaft
2016	Subaru	Impreza	Sedan	Automatic CVT	2.0L	H4	Rear Left	CV Axle Shaft
2016	Subaru	Impreza	Hatchback	Automatic CVT	2.0L	H4	Rear Right	CV Axle Shaft
2016	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Right	CV Axle Shaft
2016	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Left	CV Axle Shaft
2015	Subaru	Impreza	Sedan	Automatic CVT	2.0L	H4	Rear Left	CV Axle Shaft
2015	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Right	CV Axle Shaft
2015	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Left	CV Axle Shaft
2014	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Right	CV Axle Shaft
2014	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Left	CV Axle Shaft
2013	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Right	CV Axle Shaft
2013	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Left	CV Axle Shaft
2012	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Right	CV Axle Shaft
2012	Subaru	Impreza	—	Automatic	2.0L	H4	Rear Left	CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 5 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Cardone New — 66-7425TrakMotive — SB-810160-7425192R28421FJ000
