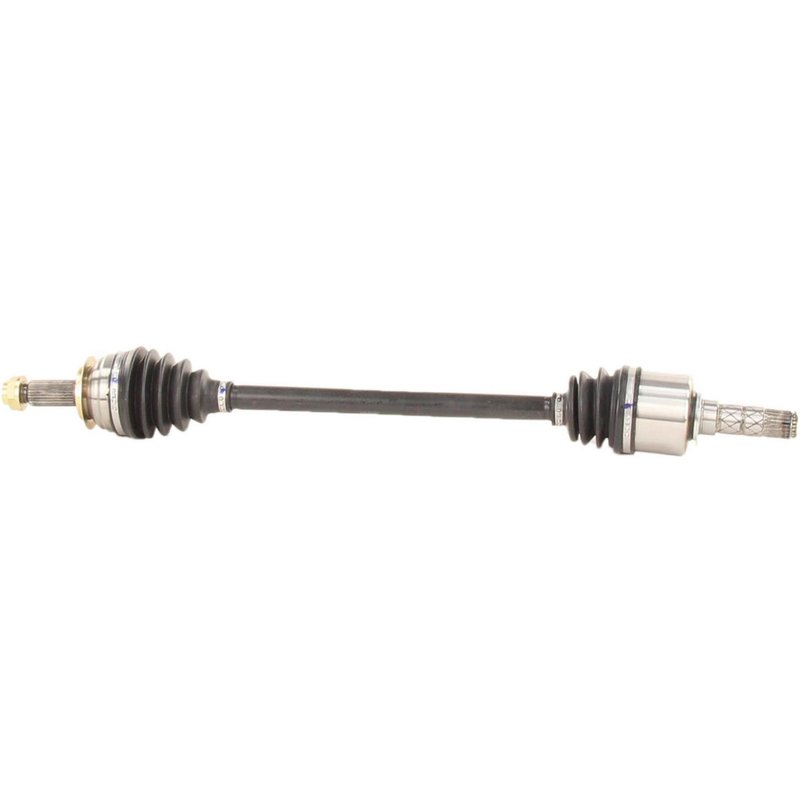

TrakMotive SB-8102 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SB-8102 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.75 |
| Overall Compressed Length (mm) | 781 |
| Product line | CV Axle Shaft |
| Fits | Subaru · 12 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable protection.
OE-style fitment. Includes the axle nut and uses a conventional outboard joint.
Certified quality. Made by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone New 66-7381, Cardone Reman 60-7381 and TrakMotive SB-8102 for the same application. See all 5.
TrakMotive CV Axle Shaft for Subaru Impreza
TrakMotive SB-8102 is a new CV axle shaft for select Subaru Impreza front applications. It is built for direct replacement use on front left and front right positions, with fitment coverage for 2012-2016 Subaru Impreza models and VIN-specific 2014 applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SB-8102
- New replacement axle shaft for front driveline service
- Fits front left and front right Subaru Impreza applications listed below
- Male inboard shaft connection style with 25 inboard splines
- Spline outboard connection with 27 outboard splines
- Neoprene boot material for axle joint protection
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 30.75 in. (781 mm)
- ABS tone ring not included
Product Details
SB-8102 is part of TrakMotive’s CV Axle Shaft line, a driveline and axle product range focused on replacement fitment for passenger vehicles. This axle uses a conventional outboard joint, a male inboard joint, and a spline-style outboard shaft connection to match the listed Subaru Impreza applications. The included axle nut and specified spline counts help support a direct-fit repair for front axle service on the Subaru Impreza.
This part cross-references Cardone New 66-7381 and Cardone Reman 60-7381 for the same application. It is also listed against OE-style references 191N and 28321FJ030.
Vehicle Fitment
- Fits 2015-2016 Subaru Impreza, front right.
- Fits 2012-2013 Subaru Impreza, front right.
- Fits 2015-2016 Subaru Impreza, front left.
- Fits 2012-2013 Subaru Impreza, front left.
- Fits 2014 Subaru Impreza, front right, from VIN 262384.
- Fits 2014 Subaru Impreza, front left, from VIN 262384.
- Fits 2014 Subaru Impreza, front right, from VIN 016710.
- Fits 2014 Subaru Impreza, front left, from VIN 016710.
Common Repair Uses
- Front axle noise during acceleration or turning
- Clicking or popping from a worn CV joint
- Vibration caused by a damaged axle shaft
- Torn axle boot or grease loss at the joint
- Driveline wear on Subaru Impreza front axle service
Installation Notes
Verify the vehicle’s position, spline count, axle nut thread size, and VIN breakpoints before installation. Compare the removed axle to the replacement part to confirm overall length, joint style, and connection details. Use the correct torque procedure for the axle nut and inspect related suspension and hub components during service.
Quality Assurance
TrakMotive lists this axle shaft as a new part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Subaru | Impreza | — | — | — | Front Right | CV Axle Shaft |
| 2016 | Subaru | Impreza | — | — | — | Front Left | CV Axle Shaft |
| 2015 | Subaru | Impreza | — | — | — | Front Right | CV Axle Shaft |
| 2015 | Subaru | Impreza | — | — | — | Front Left | CV Axle Shaft |
| 2014 | Subaru | Impreza | Hatchback | 2.0L | H4 | Front Right | From VIN 262384; CV Axle Shaft |
| 2014 | Subaru | Impreza | Hatchback | 2.0L | H4 | Front Left | From VIN 262384; CV Axle Shaft |
| 2014 | Subaru | Impreza | Sedan | 2.0L | H4 | Front Right | From VIN 016710; CV Axle Shaft |
| 2014 | Subaru | Impreza | Sedan | 2.0L | H4 | Front Left | From VIN 016710; CV Axle Shaft |
| 2013 | Subaru | Impreza | — | 2.0L | H4 | Front Right | CV Axle Shaft |
| 2013 | Subaru | Impreza | — | 2.0L | H4 | Front Left | CV Axle Shaft |
| 2012 | Subaru | Impreza | — | 2.0L | H4 | Front Right | CV Axle Shaft |
| 2012 | Subaru | Impreza | — | 2.0L | H4 | Front Left | CV Axle Shaft |
