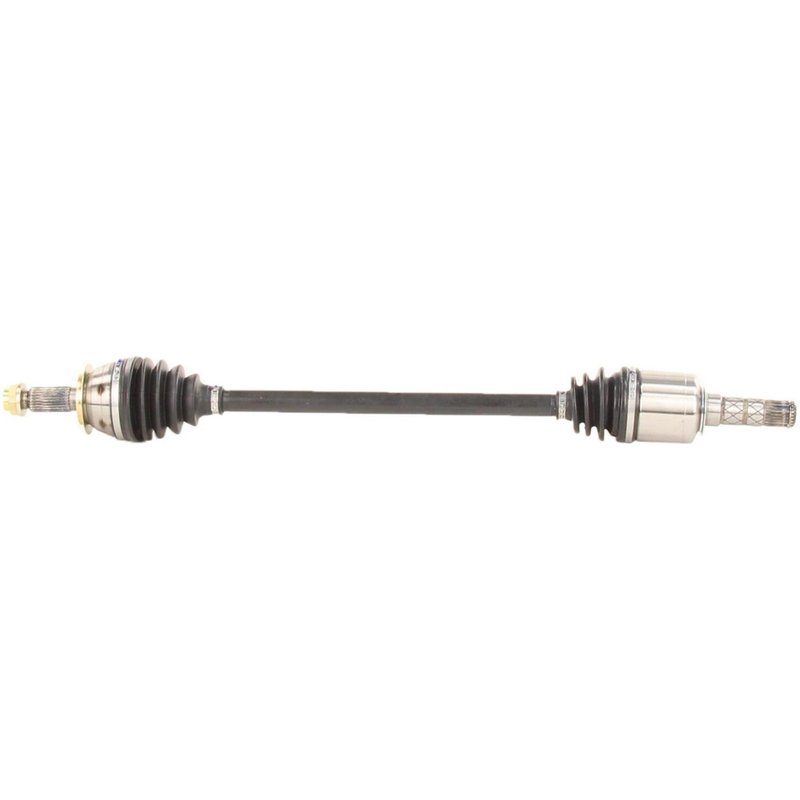

TrakMotive SB-8103 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive SB-8103 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.73 |
| Overall Compressed Length (mm) | 806 |
| Product line | CV Axle Shaft |
| Fits | Subaru · 15 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
Axle nut included. Conveniently supplied with a hex nut and stake locking type.
ISO certified company. Manufactured under ISO 9001 and TS 16949 quality standards.
Cross-references TrakMotive SB-8103, 28321SG010 and 40749060 for the same application. See all 4.
TrakMotive SB-8103 CV Axle Shaft for Subaru Forester
TrakMotive SB-8103 is a new CV axle shaft for front-wheel applications on the Subaru Forester. It is built with a neoprene boot, a male inboard joint, and a conventional outboard joint to support smooth driveline operation and consistent power transfer.
This CV axle shaft includes the axle nut and is engineered for direct replacement service on listed Subaru Forester front positions. The TrakMotive CV Axle Shaft line focuses on OE-style replacement fitment, and SB-8103 is a practical choice for restoring driveline function on 2014-2023 Subaru Forester applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SB-8103
- New axle shaft assembly
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type
- Axle nut included; M22 x 1.5 thread, stake locking type
- 31.73 in. overall compressed length
- 25 inboard splines and 27 outboard splines
- ABS tone ring not included
Detailed Description
TrakMotive SB-8103 is a front CV axle shaft for Subaru Forester models listed below. It is a new replacement axle with a 31.8 mm hex axle nut, 20 mm nut height, and 34.4 mm nut length, making it a straightforward service part for driveline repair. The axle uses a male inboard connection, spline-style outboard connection, and a neoprene boot to help protect the joint assembly during normal operation.
Fits 2022-2023 Subaru Forester, front. Fits 2019-2021 Subaru Forester, front. Fits 2015-2018 Subaru Forester, front right. Fits 2015-2018 Subaru Forester, front left. Fits 2014 Subaru Forester, front right from VIN 552206. Fits 2014 Subaru Forester, front left from VIN 552206. This part cross-references 28321SG010 and 40749060 for the same application.
Common Repair Uses
- Restores clicking or popping noises during turns caused by a worn CV joint
- Addresses vibration felt through the drivetrain during acceleration
- Replaces a torn boot or grease loss at the axle assembly
- Corrects axle wear that can lead to front-end driveline noise
- Supports repair of a damaged front axle on Subaru Forester models
Installation Notes and Tips
Verify the vehicle position, model year, and VIN notes before ordering, especially for 2014 Subaru Forester applications. Confirm spline count, axle nut thread size, and overall length against the original part before installation. Inspect related components such as wheel bearings, seals, and suspension hardware during axle replacement to help prevent repeat labor.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Subaru | Forester | Front | ID 28321SG010; CV Axle Shaft |
| 2022 | Subaru | Forester | Front | ID 28321SG010; CV Axle Shaft |
| 2021 | Subaru | Forester | Front | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Subaru | Forester | Front | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Subaru | Forester | Front | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Subaru | Forester | Front Right | CV Axle Shaft |
| 2018 | Subaru | Forester | Front Left | CV Axle Shaft |
| 2017 | Subaru | Forester | Front Right | CV Axle Shaft |
| 2017 | Subaru | Forester | Front Left | CV Axle Shaft |
| 2016 | Subaru | Forester | Front Right | CV Axle Shaft |
| 2016 | Subaru | Forester | Front Left | CV Axle Shaft |
| 2015 | Subaru | Forester | Front Right | CV Axle Shaft |
| 2015 | Subaru | Forester | Front Left | CV Axle Shaft |
| 2014 | Subaru | Forester | Front Right | From VIN 552206; CV Axle Shaft |
| 2014 | Subaru | Forester | Front Left | From VIN 552206; CV Axle Shaft |
