TrakMotivePart #: SB-8104XTT

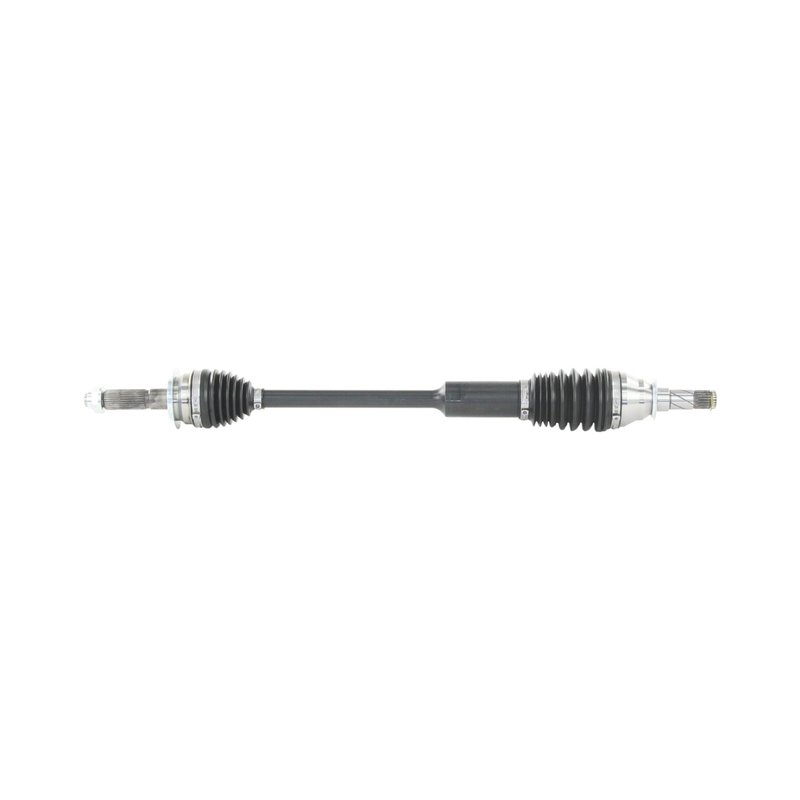

TrakMotive SB-8104XTT CV Axle Shaft - Rear
10 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$218.44Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Extended Travel CV Axle Shaft, Rear
Fitment: Subaru, Crosstrek, Forester, and XV Crosstrek
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive SB-8104XTT CV Axle Shaft - Rear
| Brand | TrakMotive |
|---|---|
| Part Number | SB-8104XTT |
| Position | Extended Travel CV Axle Shaft, Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.25 |
| Overall Compressed Length (mm) | 793 |
| Overall Extended Length (in) | 33.19 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Subaru | Forester | Automatic CVT | 2.5L | H4 | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2017 | Subaru | Crosstrek | Automatic CVT | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2017 | Subaru | Forester | Automatic CVT | 2.5L | H4 | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2016 | Subaru | Crosstrek | Automatic CVT | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2016 | Subaru | Forester | Automatic CVT | 2.5L | H4 | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Subaru | Forester | Automatic CVT | 2.5L | H4 | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2015 | Subaru | XV Crosstrek | Automatic CVT | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2014 | Subaru | Forester | Automatic CVT | 2.5L | H4 | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2014 | Subaru | XV Crosstrek | Automatic CVT | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2013 | Subaru | XV Crosstrek | Automatic CVT | Rear | Always Replace in Pairs; Extended Travel CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
SB-8104XTT
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
