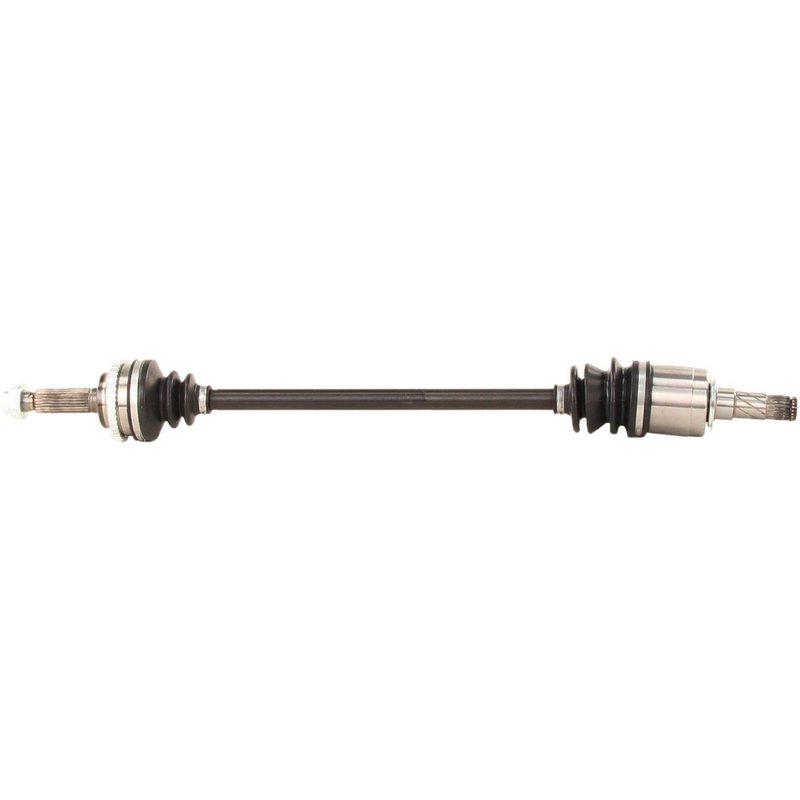

TrakMotive SB-8118 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft SB-8118

The TrakMotive CV Axle Shaft SB-8118 is engineered for reliable driveline performance in Subaru vehicles, specifically the Baja and Legacy models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Subaru Baja and Legacy models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 29.72 inches (755 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line includes shafts with integrated ABS tone rings and durable neoprene boots to protect against contaminants and wear. The SB-8118 model features a conventional outboard joint and a male inboard joint with spline connections, ensuring compatibility and smooth driveline operation for Subaru vehicles.

Technical Specifications and Features

The SB-8118 CV Axle Shaft is equipped with a 44-tooth ABS ring and includes the ABS tone ring for accurate wheel speed sensor readings. The axle nut features a hex head design measuring 1.25 inches (31.8 mm) across flats, with a height of 0.79 inches (20 mm) and a length of 1.45 inches (36.72 mm). It uses an M22x1.5 thread size and a stake locking mechanism to secure the nut firmly in place. The neoprene boot material provides resistance to environmental factors, extending the life of the joint. The inboard joint is male type with 22 splines, while the outboard joint is conventional with 25 splines, both connecting via spline shafts for a secure fit.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Subaru Baja and Legacy
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SB-8118, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Subaru Baja and Legacy models, requiring no modifications.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SB-8118 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
