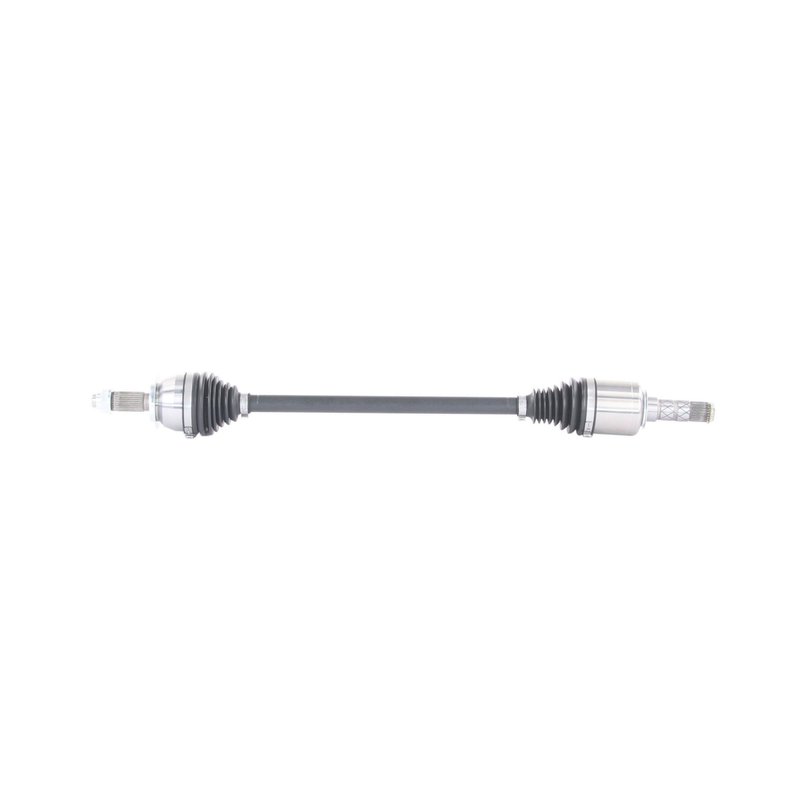

TrakMotive SB-86021 CV Axle Shaft - Front

TrakMotive SB-86021 CV Axle Shaft

The TrakMotive AAR CV Axle Shaft is a front driveline replacement for select Subaru Crosstrek models. Built as a premium-grade axle shaft, it is engineered for direct replacement service on 2018-2023 Subaru Crosstrek front applications.

The AAR CV Axle Shaft line focuses on application-specific driveline fitment and consistent replacement geometry. For Subaru Crosstrek owners needing a front CV axle shaft, SB-86021 provides the correct spline counts, compressed and extended lengths, and conventional outboard joint design for the listed vehicle coverage.

Key Features

• Front CV axle shaft for 2018-2023 Subaru Crosstrek
• Premium grade replacement part
• Inboard joint type: male
• Outboard joint type: conventional
• 25 inboard splines and 27 outboard splines
• Overall compressed length: 32.13 in (816 mm)
• Overall extended length: 34.13 in (867 mm)
• No ABS tone ring included
• Axle nut thread size: M22x1.5
• Axle nut hex/socket size: 32 mm

Detailed Description

TrakMotive SB-86021 is a CV axle shaft for front-position service on the 2018-2023 Subaru Crosstrek. It is built with a male inboard joint and a conventional outboard joint, along with the specified spline counts and shaft lengths needed for the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Use this axle shaft when replacing a worn or damaged front CV axle on a Subaru Crosstrek. The part number SB-86021 is also referenced as NCV66080.

What It Helps Address

• Clicking or popping during turns from a worn CV joint
• Vibration felt through the drivetrain during acceleration
• Grease leakage from a damaged axle boot or joint area
• Noise from a failing front axle assembly
• Loss of smooth power transfer to the front wheels

Installation Notes and Tips

Verify axle nut thread size, spline count, and overall length against the removed part before installation. This axle does not include an axle nut, and it does not include an ABS tone ring. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.

For best results, inspect related suspension and hub components during replacement and confirm the front application matches the vehicle’s drivetrain configuration.

Quality Assurance

TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification for its quality management systems.
