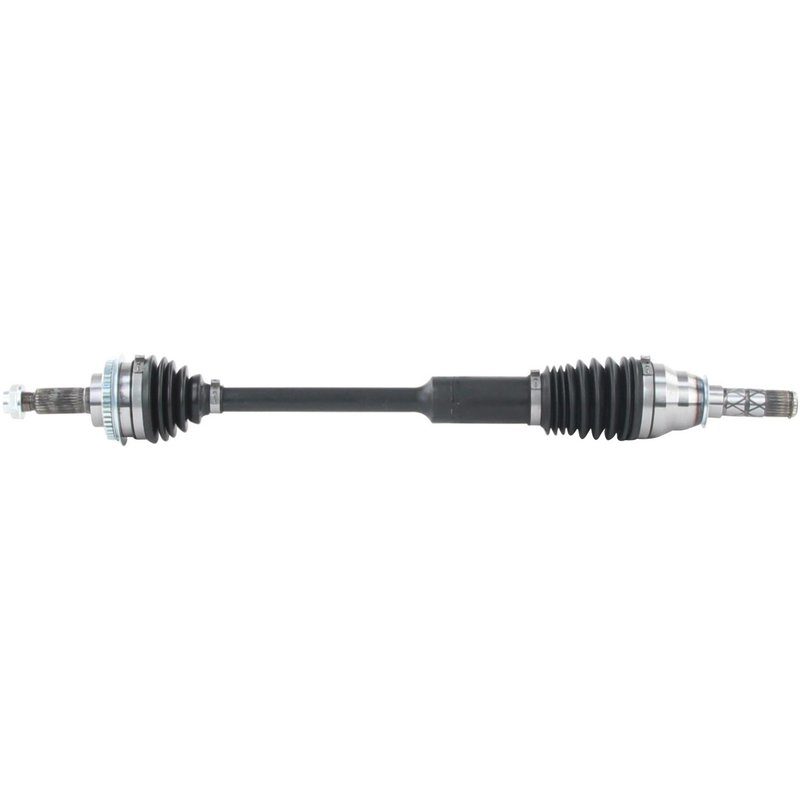

TrakMotive SB-9023XTT CV Axle Shaft - Front Left or Front Right

TrakMotive Extended Travel CV Axle Shaft Overview

The TrakMotive Extended Travel CV Axle Shaft SB-9023XTT is engineered for reliable driveline performance in Saab 9-2X and Subaru Impreza vehicles. Designed to accommodate extended suspension travel, this CV axle shaft ensures consistent power delivery and durability under demanding conditions.

• Compatible with Saab 9-2X and Subaru Impreza models
• Includes a 44-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a male inboard joint with 25 splines and a conventional outboard joint with 27 splines
• Comes with a hex head axle nut (M22*1.5 thread size) with stake locking for secure fitment
• Overall compressed length of 30.24 inches (768 mm) to fit extended travel suspension setups

Extended Travel CV Axle Shaft Product Line Details

The Extended Travel CV Axle Shaft line by TrakMotive is designed specifically for vehicles requiring longer axle shafts to accommodate suspension lift or extended travel modifications. This product line focuses on maintaining driveline integrity and ABS functionality while providing the necessary length and strength for off-road or modified suspension applications. The SB-9023XTT model is part of this line, offering precise fitment and robust construction for Saab 9-2X and Subaru Impreza owners.

Technical Specifications and Features

This CV axle shaft features a 44-tooth ABS ring with a toothed design, ensuring accurate ABS sensor readings. The included ABS tone ring supports proper wheel speed monitoring. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the specified vehicle models. The overall compressed length of 30.24 inches (768 mm) accommodates extended travel suspension setups.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Saab 9-2X and Subaru Impreza models
• Addresses issues related to extended suspension travel requiring longer axle shafts
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle nut loosening with stake locking design
• Prevents premature joint failure with durable neoprene boot protection

Installation Notes and Tips

Ensure compatibility with your specific Saab 9-2X or Subaru Impreza model before installation. The hex head axle nut requires a 1 1/4 inch (31.8 mm) socket for proper torque application. Verify the orientation of the male inboard joint and conventional outboard joint during installation. Inspect the ABS tone ring and sensor alignment to maintain accurate wheel speed readings. Properly seat the neoprene boot to prevent contamination and extend joint life.

Quality Assurance and Warranty

The TrakMotive SB-9023XTT CV axle shaft is a new, not remanufactured, component built to meet OEM specifications for fit and function. It undergoes quality control inspections to ensure durability and performance. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
