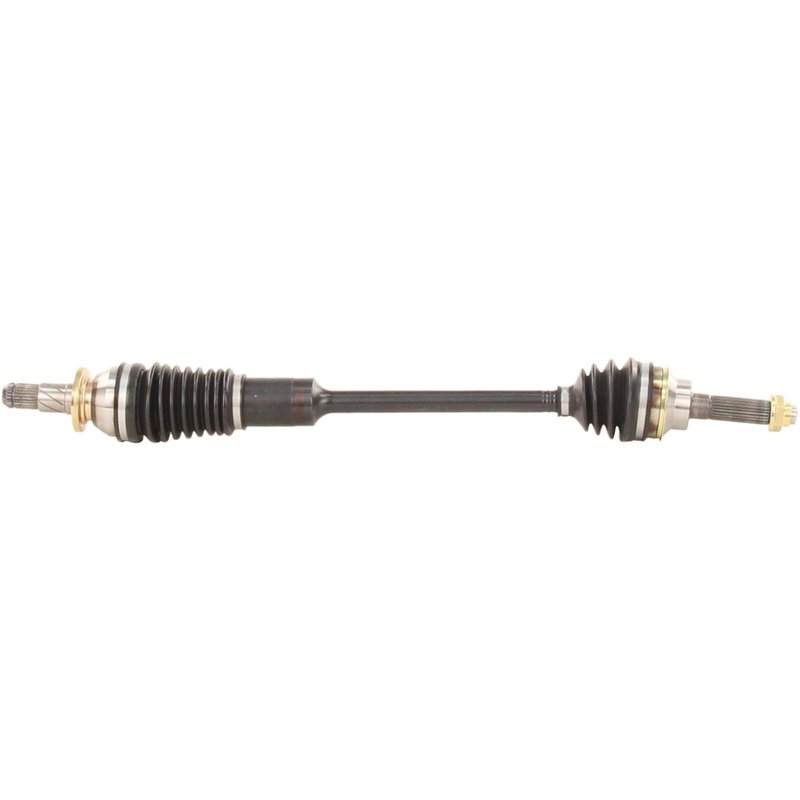

TrakMotive SB-9043XTT CV Axle Shaft - Rear Left or Rear Right
Overview of TrakMotive Extended Travel CV Axle Shaft SB-9043XTT
The TrakMotive Extended Travel CV Axle Shaft SB-9043XTT is engineered for reliable driveline performance in select Saab and Subaru vehicles. Designed to meet the specific requirements of models like the Subaru Forester, Impreza, Legacy, and Saab 9-2X, this CV axle shaft ensures proper fitment and durability.
- Compatible with Saab 9-2X and Subaru Forester, Impreza, Legacy
- Includes axle nut with stake locking type for secure installation
- Neoprene boot material for enhanced joint protection
- Hex head axle nut with 1 1/4 inch (31.8 mm) hex size
- Overall compressed length of 30.24 inches (768 mm)
- Male inboard joint and conventional outboard joint types
- New, not remanufactured, ensuring original quality
TrakMotive Extended Travel CV Axle Shaft Product Line
The Extended Travel CV Axle Shaft line by TrakMotive is designed to accommodate vehicles requiring longer axle shafts due to suspension lift or extended travel modifications. This product line provides precise engineering to maintain driveline integrity and proper fitment in vehicles like the Subaru Forester and Impreza, where extended axle length is necessary. The SB-9043XTT model offers a compressed length of 30.24 inches, making it suitable for applications demanding additional axle travel without compromising joint performance.
Detailed Product Description and Specifications
The SB-9043XTT CV axle shaft features a neoprene boot that offers resistance to environmental elements and helps maintain joint lubrication. It includes a hex head axle nut with a 1 1/4 inch (31.8 mm) hex size and a height of 4/5 inch (20 mm), designed for secure fastening with a stake locking mechanism. The axle nut length is 1 1/3 inches (34.4 mm), and the thread size is M22*1.5. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 24 splines, ensuring compatibility with the specified Saab and Subaru models. This CV axle shaft is new and built to OEM standards for reliable driveline operation.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts in Saab 9-2X and Subaru Forester, Impreza, Legacy
- Addressing axle shaft length issues in vehicles with extended suspension travel
- Resolving joint boot tears or leaks caused by environmental exposure
- Fixing axle nut loosening problems with included stake locking axle nut
- Improving driveline stability and reducing vibrations from faulty CV joints
Installation Notes and Tips
- Ensure compatibility with vehicle make and model before installation
- Use the included hex head axle nut with stake locking to secure the axle shaft
- Inspect surrounding suspension components during installation for wear
- Verify proper torque specifications for axle nut to prevent loosening
- Check boot condition and joint movement after installation for smooth operation
Quality Assurance and Warranty
The TrakMotive SB-9043XTT CV axle shaft is manufactured new to meet or exceed OEM specifications. It undergoes quality control inspections to ensure durability and fitment accuracy for Saab 9-2X and Subaru models including Forester, Impreza, and Legacy. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
| Brand | TrakMotive |
| Part Number | SB-9043XTT |
| Position | Extended Travel CV Axle Shaft, Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.24 |
| Overall Compressed Length (mm) | 768 |
This part fits 44 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2008 | Subaru | Forester | AWD | Rear Right | From 1/14/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2007 | Subaru | Forester | AWD | Rear Right | From 1/14/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2007 | Subaru | Impreza | WRX | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2007 | Subaru | Impreza | WRX TR | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2007 | Subaru | Impreza | WRX Limited | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2007 | Subaru | Impreza | Wagon | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||||
| 2007 | Subaru | Impreza | 2.5i | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2006 | Saab | 9-2X | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2006 | Subaru | Forester | AWD | Rear Right | From 1/14/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2006 | Subaru | Impreza | WRX | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2006 | Subaru | Impreza | WRX TR | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2006 | Subaru | Impreza | WRX Limited | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2006 | Subaru | Impreza | Wagon | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||||
| 2006 | Subaru | Impreza | 2.5i | Sedan | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 2005 | Saab | 9-2X | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2005 | Saab | 9-2X | AWD | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2005 | Subaru | Forester | AWD | Rear Right | From 1/14/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2005 | Subaru | Forester | AWD | Rear Left | Thru 1/13/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2005 | Subaru | Impreza | WRX | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2005 | Subaru | Impreza | RS | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2004 | Subaru | Forester | AWD | Rear Left | Thru 1/13/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2004 | Subaru | Impreza | WRX | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2004 | Subaru | Impreza | RS | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2003 | Subaru | Forester | AWD | Rear Left | Thru 1/13/05; For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2003 | Subaru | Impreza | WRX | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2003 | Subaru | Impreza | RS | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2002 | Subaru | Forester | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||||||
| 2002 | Subaru | Impreza | WRX | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2002 | Subaru | Impreza | RS | Rear Left | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 2001 | Subaru | Forester | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||||||
| 2000 | Subaru | Forester | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||||||
| 2000 | Subaru | Impreza | Manual | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1999 | Subaru | Forester | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1999 | Subaru | Impreza | Manual | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1999 | Subaru | Legacy | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1998 | Subaru | Forester | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1998 | Subaru | Impreza | Manual | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1998 | Subaru | Legacy | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1997 | Subaru | Impreza | Manual | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1997 | Subaru | Legacy | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1996 | Subaru | Impreza | AWD | Manual | 2.2L | H4 | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 1996 | Subaru | Legacy | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||||
| 1995 | Subaru | Impreza | AWD | 2.2L | H4 | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft | |||
| 1995 | Subaru | Legacy | AWD | Rear Right | For Extreme Articulation; Always Replace in Pairs; Extended Travel CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
