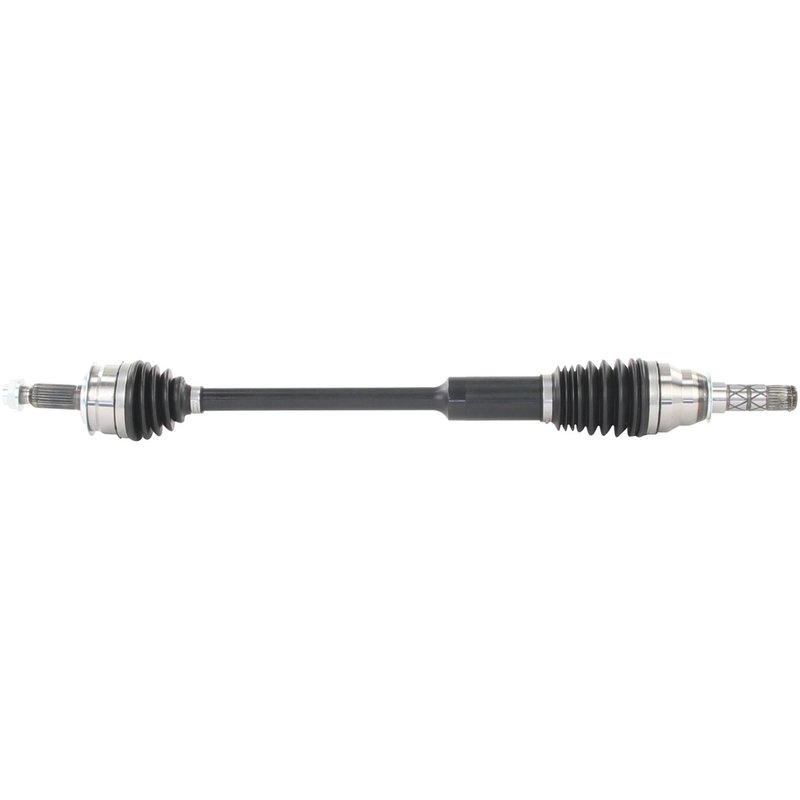

TrakMotive SB-9050XTT CV Axle Shaft - Front Left or Front Right

Extended Travel CV Axle for Subaru Tribeca

TrakMotive SB-9050XTT is an Extended Travel CV Axle Shaft built for Subaru Tribeca and B9 Tribeca front applications that need more suspension movement than a standard OE-style axle can provide. It uses a sliding center bar design to add travel and higher CV joint articulation for vehicles set up for extreme articulation.

The TrakMotive Extended Travel CV Axle Shaft line is focused on driveline movement where added suspension range matters. For Subaru Tribeca and B9 Tribeca front right or front left fitments, this design helps maintain axle engagement through greater suspension travel than a typical OEM CV shaft.

Key Features

• Part number: SB-9050XTT
• Extended travel CV axle shaft for front axle applications
• Sliding center bar design adds up to 44 mm more travel than an OEM CV shaft
• CV joints provide up to 47 degrees of articulation versus a typical 23 degrees on OE joints
• New axle assembly with neoprene boot material
• Includes axle nut with M22 x 1.5 thread size, 31.8 mm hex size, and stake locking type
• Inboard joint type: male
• Outboard joint type: conventional
• Inboard splines: 25; outboard splines: 27
• Overall compressed length: 32.28 in. (820 mm)

Detailed Description

TrakMotive SB-9050XTT is engineered for Subaru Tribeca and Subaru B9 Tribeca front right and front left positions where extreme articulation is required. The extended travel design uses a sliding center bar to allow more suspension movement, while the CV joints are built to operate at a greater angle than a standard OE joint. This makes it a direct-fit driveline solution for vehicles with increased suspension travel demands.

This part cross-references no listed alternate part numbers beyond TrakMotive SB-9050XTT for the same application. Search terms such as Subaru Tribeca front right CV axle shaft, Subaru Tribeca front left extended travel axle, and B9 Tribeca extreme articulation CV axle shaft align with this application.

What This Part Helps Address

• Axle binding during increased suspension travel
• CV joint angle limitations in lifted or articulated front suspension setups
• Driveline movement issues on Subaru Tribeca front axle applications
• Wear concerns from operating a standard axle near its articulation limit
• Front axle replacement needs for Subaru B9 Tribeca and Tribeca models

Installation Notes and Tips

• Fits 2006-2007 Subaru B9 Tribeca, front right and front left.
• Fits 2008-2014 Subaru Tribeca, front right and front left.
• Always replace in pairs when servicing the front axle on these applications.
• Verify spline count, axle nut thread size, and compressed length before installation.
• Confirm the vehicle is set up for the correct front position before ordering.

Quality Assurance

TrakMotive manufactures this as a new CV axle shaft with application-specific dimensions and joint geometry for the listed Subaru fitments. The extended travel design is built around increased articulation and suspension movement for the confirmed front applications.
