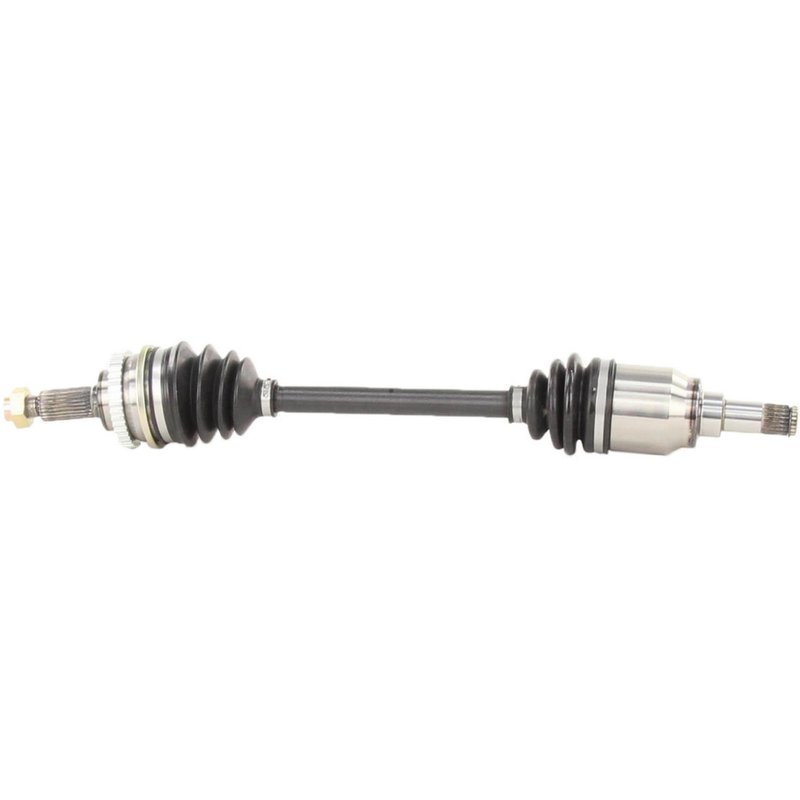

TrakMotive SK-8002 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft SK-8002 for Suzuki Esteem

The TrakMotive CV Axle Shaft SK-8002 is engineered specifically for Suzuki Esteem models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Suzuki Esteem
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included (M18*1.5 thread size)
• Overall compressed length of 23.74 inches (603 mm)
• Male inboard joint and conventional outboard joint types
• 22 inboard splines and 25 outboard splines for secure shaft connection

Detailed Features and Specifications

The TrakMotive CV Axle Shaft SK-8002 features a toothed ABS ring with 42 teeth, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The axle nut is a standard locking type with a hex head measuring 30 mm (1 1/6 inch) across flats and a height of 19 mm (3/4 inch), included for a complete installation. The shaft has a male inboard joint connection style with 22 splines and a conventional outboard joint with 25 splines, ensuring a secure and precise fit. The overall compressed length of 23.74 inches (603 mm) matches OEM dimensions for the Suzuki Esteem.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to meet or exceed factory specifications. This line includes shafts engineered for specific vehicle applications, such as the SK-8002 for Suzuki Esteem, ensuring compatibility and performance. Each CV axle shaft in this line is built with quality materials and precise manufacturing processes to maintain driveline integrity and vehicle safety.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Suzuki Esteem
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boots
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8002 on a Suzuki Esteem, verify the axle nut torque specifications according to the vehicle manufacturer. The included hex head axle nut (M18*1.5 thread) should be tightened to the recommended torque to ensure proper locking. Inspect the CV boots for any damage during installation and ensure the ABS tone ring is properly aligned with the wheel speed sensor. Use appropriate tools to avoid damaging splines or joints during assembly.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft SK-8002 is a new, not remanufactured, component manufactured to meet OEM standards. It undergoes quality control inspections to ensure durability and fitment accuracy. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
