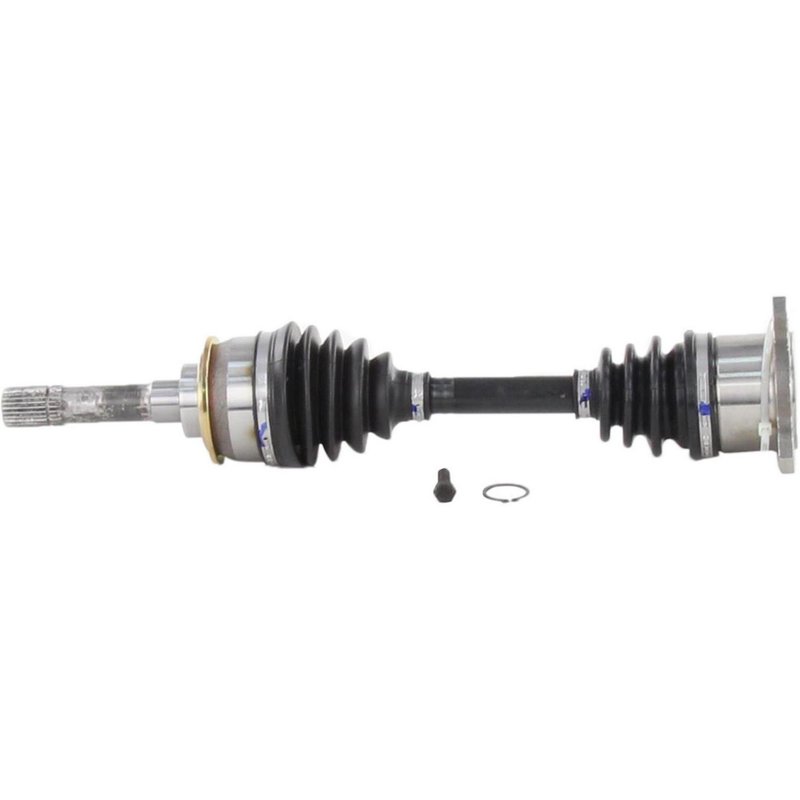

TrakMotive SK-8013 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft SK-8013

The TrakMotive CV Axle Shaft SK-8013 is designed for reliable driveline performance in select Chevrolet, Geo, GMC, Pontiac, and Suzuki vehicles. This new axle shaft is engineered to meet the specific requirements of models like the Sidekick, Sunrunner, Tracker, and X-90, ensuring proper fit and function.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: SK-8013
• Boot Material: Durable Neoprene
• Inboard Joint Type: Flange with flange shaft connection
• Outboard Joint Type: Male with male shaft connection
• Axle Bolt Hex Size: 13 mm
• Axle Bolt Length: 45.3 mm
• Axle Bolt Thread Size: M8*1.25
• Number of Bolt Holes: 1
• Number of Outboard Shaft Bolts: 1
• Number of Outboard Splines: 26
• Overall Compressed Length: 492 mm (19.37 in)
• New, not remanufactured

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, precision-engineered constant velocity axle shafts designed to maintain driveline integrity and vehicle handling. This line emphasizes exact fitment and durable materials such as neoprene boots to protect joints from contaminants. The SK-8013 model exemplifies these qualities, providing a direct replacement for compatible vehicles without the need for modifications.

Detailed Product Description

The SK-8013 CV Axle Shaft features a neoprene boot that offers resistance to wear and environmental damage, helping to extend the life of the axle. The inboard joint uses a flange type connection, while the outboard joint is a male type, both designed for secure and stable attachment. With a single bolt hole and one outboard shaft bolt, installation is straightforward. The axle bolts have a 13 mm hex size, 45.3 mm length, and M8*1.25 thread size, matching factory specifications. The axle shaft has 26 outboard splines and an overall compressed length of 492 mm (19.37 inches), ensuring proper engagement and fitment in the driveline assembly.

Compatible Vehicles and Common Applications

• Replacement for worn or damaged CV axle shafts on Chevrolet Sidekick models
• Suitable for Geo Sunrunner driveline repairs
• Used in GMC Tracker axle shaft replacements
• Fits Pontiac X-90 vehicles requiring new CV axle shafts
• Compatible with Suzuki Sidekick and Tracker models

Installation Notes and Tips

• Verify vehicle compatibility with Chevrolet, Geo, GMC, Pontiac, and Suzuki models listed
• Ensure axle bolt specifications (hex size, length, thread) match factory hardware
• Inspect surrounding components such as wheel bearings and seals during installation
• Use proper torque settings for axle bolts to avoid damage or loosening
• Check boot condition and joint movement after installation for smooth operation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SK-8013 is a new part manufactured to meet OEM standards for fit and function. It does not include an ABS tone ring or axle nut, consistent with original equipment design. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in compatible Chevrolet, Geo, GMC, Pontiac, and Suzuki vehicles.
