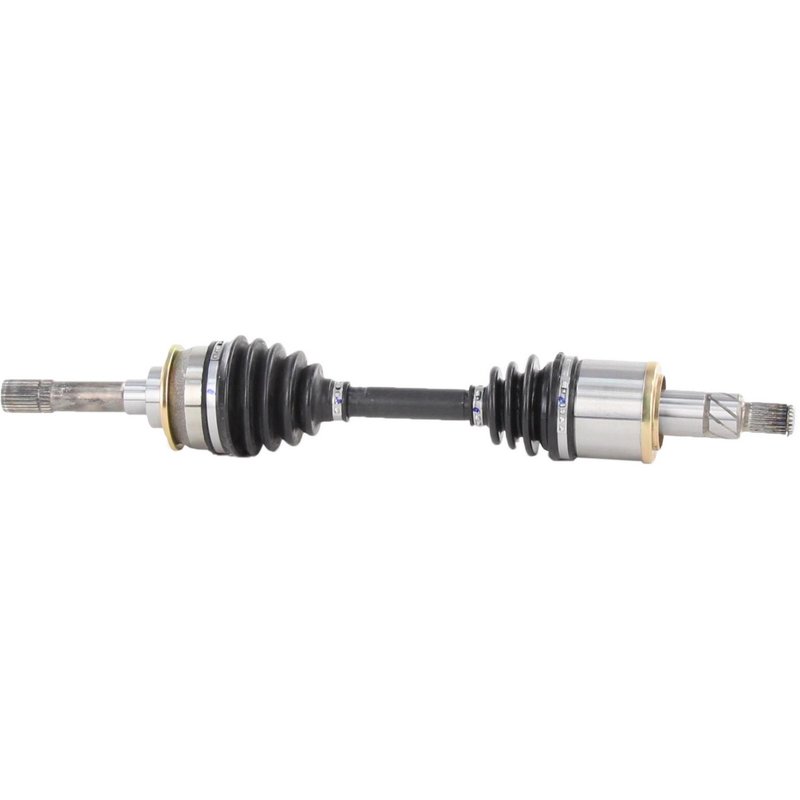

TrakMotive SK-8014 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft SK-8014

The TrakMotive CV Axle Shaft SK-8014 is designed for reliable driveline performance in select Geo, GMC, Pontiac, and Suzuki vehicles. This new axle shaft is engineered to meet the specific requirements of models like the Sidekick, Sunrunner, and Tracker, ensuring proper fit and function.

• Compatible with Geo Sidekick, GMC Tracker, Pontiac Sunrunner, and Suzuki models
• New, not remanufactured, for consistent durability
• Neoprene boot material for enhanced flexibility and protection
• Male inboard and outboard joint types with 22 and 26 splines respectively
• Axle bolt hex size of 13 mm and bolt length of 45.3 mm
• Overall compressed length of 595 mm (23.43 inches)
• Single bolt hole and single outboard shaft bolt for secure installation

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. The SK-8014 model exemplifies this approach by offering a new axle shaft with carefully matched spline counts and connection styles to ensure compatibility and performance in Geo, GMC, Pontiac, and Suzuki vehicles. This line emphasizes quality materials such as neoprene boots and exact bolt specifications to maintain driveline integrity.

Technical Specifications and Features

The SK-8014 CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to protect the joint from contaminants. Both the inboard and outboard joints utilize a male connection style, with 22 splines on the inboard side and 26 splines on the outboard side, ensuring a secure fit. The axle bolt specifications include a 13 mm hex size, 45.3 mm length, and M8*1.25 thread size, designed for proper torque and fastening. The overall compressed length of 595 mm (23.43 inches) matches OEM requirements for the compatible vehicles.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Geo Sidekick, GMC Tracker, Pontiac Sunrunner, and Suzuki models
• Addresses issues such as axle vibration or clicking noises during turns
• Solves grease leakage problems caused by torn or degraded boots
• Restores driveline stability and smooth power transfer to the wheels
• Prevents premature joint failure due to corrosion or wear

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8014, ensure the axle bolt hex size (13 mm) and thread specifications (M8*1.25) match the vehicle’s hardware. Verify the single bolt hole alignment and spline counts (22 inboard, 26 outboard) for proper engagement. Use appropriate torque settings to avoid over-tightening or loosening during operation. Inspect the neoprene boot for any damage before installation to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and reliability in driveline applications.
