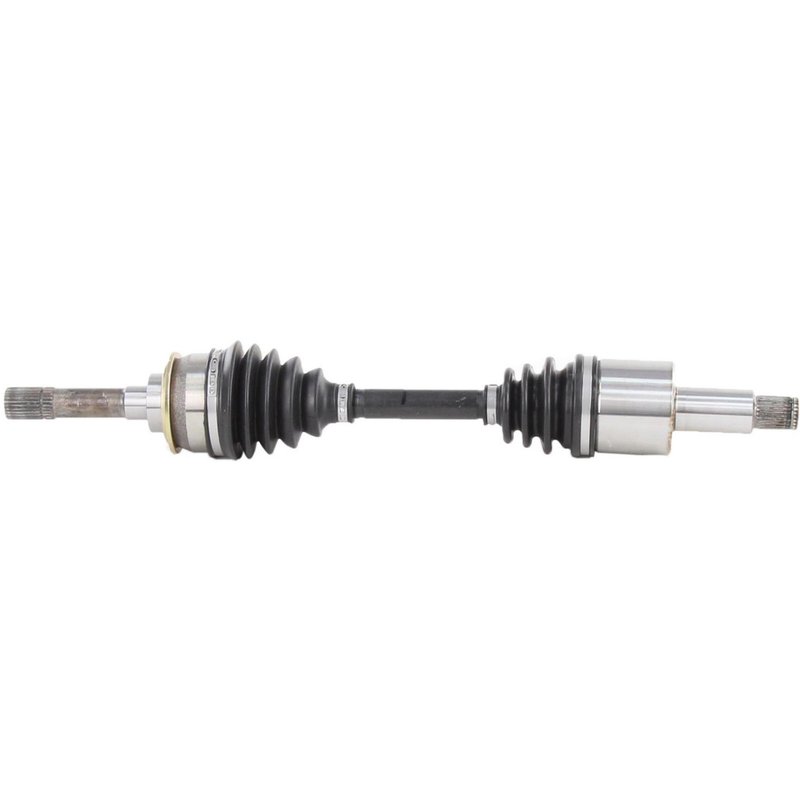

TrakMotive SK-8020 CV Axle Shaft - Front Right
| Brand | TrakMotive SK-8020 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 13 |
| Axle Bolt Length (mm) | 45.3 |
| Axle Bolt Thread Size | M8*1.25 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Male |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.02 |
| Overall Compressed Length (mm) | 610 |
| Product line | CV Axle Shaft |
| Fits | Suzuki and Chevrolet · 24 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Built by a quality-managed manufacturer.
Cross-references BBB Industries 7798, Cardone New 66-1443 and Cardone Reman 60-1341 for the same application. See all 30.
CV Axle Shaft for Front Right Applications
TrakMotive SK-8020 is a new CV axle shaft for front right driveline service on select Suzuki and Chevrolet applications. It is built with a neoprene boot, 26 inboard splines, 26 outboard splines, and a male inboard/outboard joint configuration for the listed fitments.
Key Features
- New CV axle shaft for front right placement
- Neoprene boot material for joint protection
- 26 inboard splines and 26 outboard splines
- Male inboard joint type and male outboard joint type
- Overall compressed length: 24.02 in. (610 mm)
- Axle bolt thread size: M8 x 1.25
- Axle bolt hex size: 13 mm
- Axle bolt length: 45.3 mm
- No axle nut included
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft, part number SK-8020, is specified for front right service on 1996-1998 Suzuki Sidekick, 1999-2004 Chevrolet Tracker, 1999-2004 Suzuki Vitara, 1999-2005 Suzuki Grand Vitara, and 2002-2003 Suzuki XL-7 applications. The axle is engineered to match the listed spline count and compressed length for direct replacement use in the confirmed positions. TrakMotive SK-8020 is also cross-referenced to BBB Industries 7798 for the same application.
What It Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or worn axle shaft
- Grease leakage from a deteriorated axle boot
- Driveline noise from excessive axle wear
- Front right axle failure on the listed Suzuki and Chevrolet models
Installation Notes
Verify spline count, axle length, bolt thread size, and front right position before installation. Confirm whether the vehicle uses ABS or non-ABS equipment, since ABS axles fit non-ABS applications unless otherwise noted. Inspect the hub, seals, and related suspension components during replacement to help prevent repeat service.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part and backs it with a limited lifetime warranty. The company states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2004 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 2004 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2004 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2003 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 2003 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2003 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2003 | Suzuki | XL-7 | 4WD | — | — | Front Right | CV Axle Shaft |
| 2002 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 2002 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2002 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2002 | Suzuki | XL-7 | 4WD | — | — | Front Right | CV Axle Shaft |
| 2001 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 2001 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2001 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2000 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 2000 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 2000 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 1999 | Chevrolet | Tracker | 4WD | — | — | Front Right | CV Axle Shaft |
| 1999 | Suzuki | Grand Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 1999 | Suzuki | Vitara | 4WD | — | — | Front Right | CV Axle Shaft |
| 1998 | Suzuki | Sidekick | 4WD | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1997 | Suzuki | Sidekick | 4WD | 1.6L | L4 | Front Right | CV Axle Shaft |
| 1996 | Suzuki | Sidekick | 4WD | 1.6L | L4 | Front Right | CV Axle Shaft |
