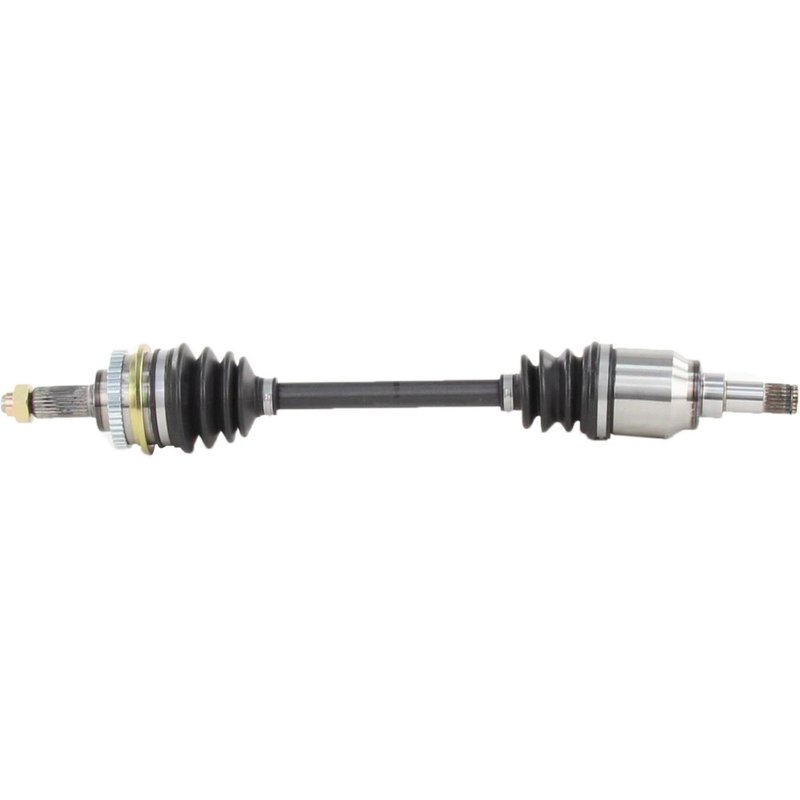

TrakMotive SK-8027 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft SK-8027 for Suzuki Esteem

The TrakMotive CV Axle Shaft SK-8027 is engineered specifically for Suzuki Esteem models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Suzuki Esteem vehicles
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M18*1.5 thread size
• Overall compressed length of 23.35 inches (593 mm)
• Inboard joint type: Male with 22 splines
• Outboard joint type: Conventional with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components tailored to specific vehicle applications. This product line emphasizes quality materials and accurate specifications, such as ABS ring tooth count and boot construction, to maintain vehicle safety and performance. The SK-8027 model exemplifies this approach by matching exact fitment requirements for the Suzuki Esteem.

Technical Specifications and Features

The SK-8027 CV axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The included ABS tone ring with 42 teeth and a toothed ring type supports proper ABS sensor function. The axle nut is a standard locking type with a hex head measuring 1 1/6 inches (30 mm) across flats and a height of 3/4 inch (19 mm), ensuring secure installation. The inboard joint uses a male connection style with 22 splines, while the outboard joint is conventional with 25 splines, providing compatibility with the Suzuki Esteem's driveline system. The overall compressed length of 23.35 inches (593 mm) matches factory specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Suzuki Esteem
• Restoring ABS sensor functionality with included tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot tears or leaks to prevent joint contamination
• Ensuring secure axle nut fitment with included hardware

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8027, verify compatibility with your Suzuki Esteem model year and drivetrain configuration. Use the included axle nut with the specified M18*1.5 thread size and torque to manufacturer specifications. Inspect the neoprene boot for proper seating to prevent premature wear. Ensure the ABS tone ring is correctly positioned to maintain accurate sensor readings. Professional installation is recommended to guarantee safety and performance.

Quality Assurance and Warranty Information

This CV axle shaft is a new, direct replacement part manufactured to meet OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. While specific warranty details are not provided here, new TrakMotive CV axle shafts typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or your supplier for exact warranty terms.
