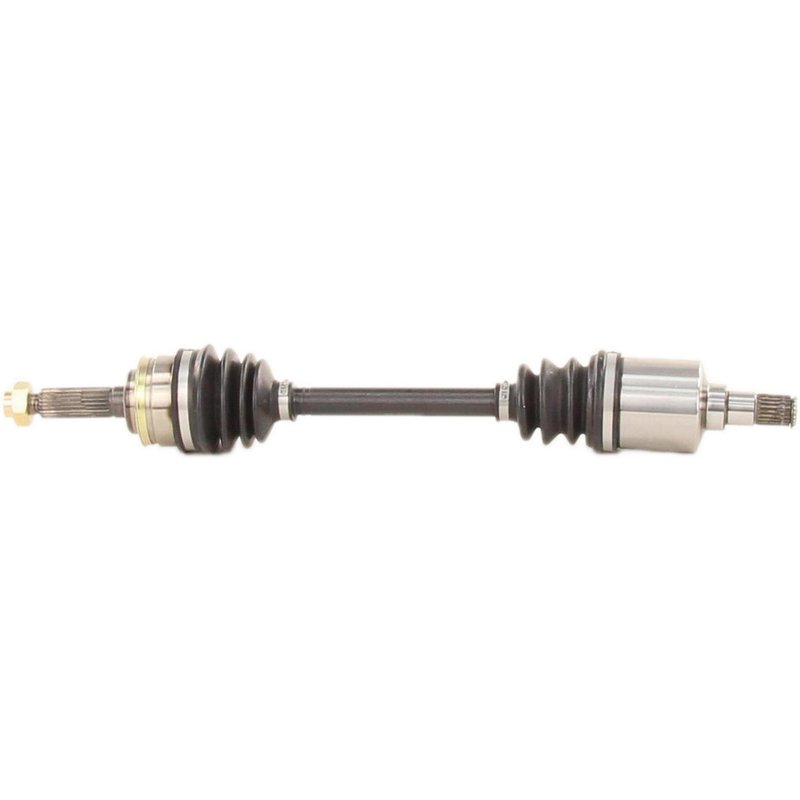

TrakMotive SK-8036 CV Axle Shaft - Front Left
| Brand | TrakMotive SK-8036 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M18*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.17 |
| Overall Compressed Length (mm) | 563 |
| Product line | CV Axle Shaft |
| Fits | Suzuki · 6 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Conveniently supplied with the hardware needed for installation.
Cross-references NGK 7781, TrakMotive SK-8036 and 60-7094 for the same application. See all 13.
CV Axle Shaft for Suzuki Swift Front Left
TrakMotive SK-8036 is a new CV axle shaft for the front left position on 1989-1994 Suzuki Swift models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 1989-1994 Suzuki Swift, front left
- TrakMotive CV Axle Shaft, part number SK-8036
- New replacement axle for driveline repair
- Neoprene boot material for joint protection
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- Includes axle nut with M18 x 1.5 thread size
- 22 inboard splines and 23 outboard splines
- Overall compressed length: 22.17 in. (563 mm)
- No ABS tone ring included
Product Details
SK-8036 is a TrakMotive CV axle shaft engineered for the front left side of the Suzuki Swift from 1989 through 1994. The axle uses a male inboard joint and a conventional outboard joint, with a 30 mm axle nut hex size and standard locking type. This part cross-references NGK 7781 for the same application.
TrakMotive positions this CV axle shaft within its CV Axle Shaft line for direct replacement service. The part is manufactured as a new component and is backed by the brand’s limited lifetime warranty. TrakMotive also states that its manufacturing is supported by ISO 9001:1007 and TS 16949:2009 certification.
Common Repair Uses
- Restores a worn or noisy front left CV axle on a Suzuki Swift
- Addresses clicking during turns caused by joint wear
- Replaces a damaged axle boot or contaminated CV joint assembly
- Corrects vibration or driveline shudder from axle wear
- Supports repair after axle shaft damage from road impact or age
Installation Notes
Verify spline count, axle nut thread size, and compressed length before installation. This axle includes an axle nut, and the axle nut uses an M18 x 1.5 thread with a 30 mm hex size. Confirm whether the vehicle is equipped for a non-ABS application, since no ABS tone ring is included. Always inspect related hub, seal, and suspension components during axle replacement.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing processes for this part line.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
| 1993 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
| 1992 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
| 1991 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
| 1990 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
| 1989 | Suzuki | Swift | Automatic | Front Left | CV Axle Shaft |
