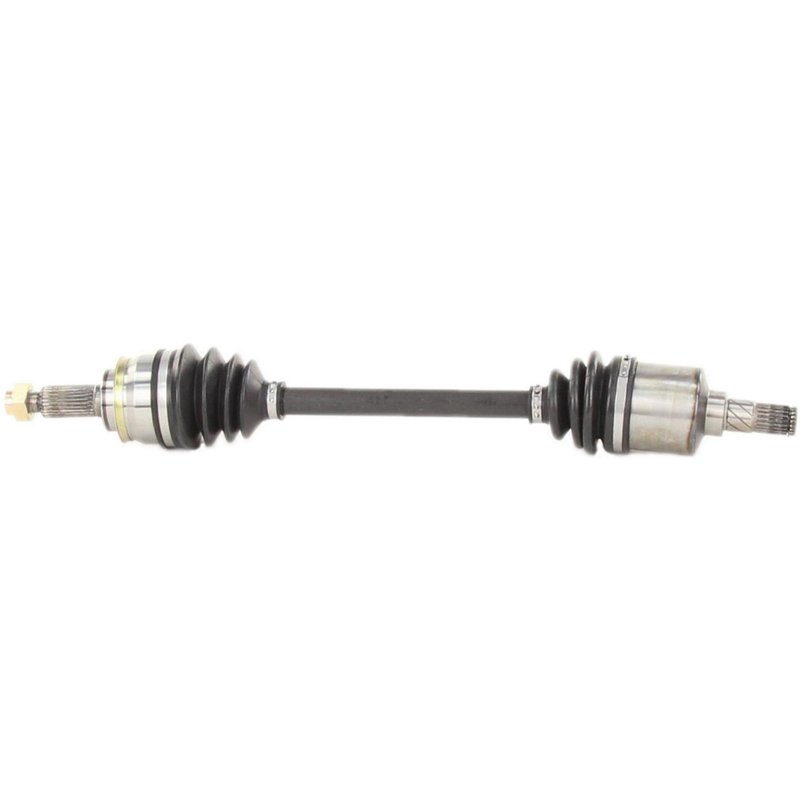

TrakMotive SK-8040 CV Axle Shaft - Front Left
| Brand | TrakMotive SK-8040 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M18*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.27 |
| Overall Compressed Length (mm) | 591 |
| Product line | CV Axle Shaft |
| Fits | Suzuki · 6 vehicles |
New axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot. Flexible material helps protect the joint from wear.
Axle nut included. Conveniently supplied for a more complete installation.
Cross-references BBB Industries 7769, Cardone Reman 60-7095 and TrakMotive SK-8040 for the same application. See all 11.
CV Axle Shaft for Suzuki Swift
TrakMotive SK-8040 is a new CV axle shaft for the front left position on 1989-1994 Suzuki Swift models. It is built for direct replacement service and includes the axle nut specified for the application.
Key Features
- TrakMotive CV Axle Shaft, part number SK-8040
- Fits 1989-1994 Suzuki Swift, front left
- New axle assembly with male inboard shaft connection
- Conventional outboard joint type
- Neoprene boot material for driveline protection
- ABS tone ring not included
- Axle nut included; M18 x 1.5 thread size, 30 mm hex
- Overall compressed length: 23.27 in. (591 mm)
Product Details
TrakMotive SK-8040 is a front left CV axle shaft for Suzuki Swift applications from 1989 through 1994. This axle uses a 22-spline inboard connection and a 25-spline outboard connection, with a male inboard shaft connection style and a conventional outboard joint design. The neoprene boot helps protect the joint area, while the included axle nut supports proper service replacement. This part cross-references BBB Industries 7769 and Cardone Reman 60-7095 for the same application.
Common Replacement Uses
- Replacing a worn or noisy front left CV axle on a Suzuki Swift
- Addressing clicking during turns caused by joint wear
- Correcting vibration from a damaged or imbalanced axle shaft
- Restoring driveline operation after boot failure or grease loss
- Servicing a front axle with damaged splines or axle nut threads
Installation Notes
Verify front left fitment against the vehicle’s year and drivetrain configuration before installation. Confirm spline count, axle nut thread size, and compressed length match the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and torque the axle nut to the vehicle manufacturer’s specification.
Quality Assurance
TrakMotive manufactures this axle as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The SK-8040 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
| 1993 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
| 1992 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
| 1991 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
| 1990 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
| 1989 | Suzuki | Swift | Manual | Front Left | CV Axle Shaft |
