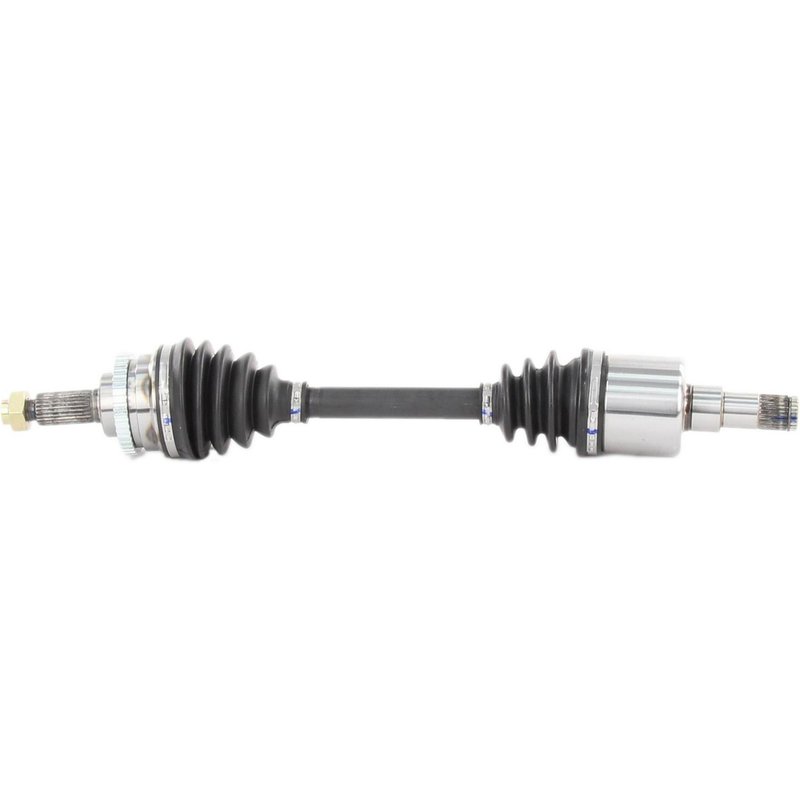

TrakMotive SK-8055 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft SK-8055

The TrakMotive CV Axle Shaft SK-8055 is engineered for reliable driveline performance in compatible vehicles. Designed with precision, this new CV axle shaft includes essential components such as a neoprene boot and a toothed ABS tone ring to ensure smooth operation and durability.

• Includes a 42-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a standard locking hex axle nut (M18*1.5 thread size) included
• Features male inboard joint and conventional outboard joint types
• Overall compressed length of 23.31 inches (592 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to meet OEM specifications. This line emphasizes quality materials and accurate fitment, making it suitable for vehicles requiring precise axle shaft replacements. The SK-8055 model exemplifies this approach by integrating a robust ABS tone ring and durable neoprene boot to maintain driveline integrity.

Technical Specifications and Features

The SK-8055 CV axle shaft features a 42-tooth ABS ring with a toothed design, which is included to support ABS functionality. The axle nut is a hex head type measuring 3/4 inch (19 mm) in height and 1 1/6 inch (30 mm) across the flats, with a length of 1 1/3 inch (34.6 mm). The nut uses a standard locking mechanism and an M18*1.5 thread size. The inboard joint is male type with 26 splines, while the outboard joint is conventional with 25 splines. The neoprene boot material offers resistance to wear and environmental factors, contributing to the longevity of the axle shaft assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts in compatible vehicles
• Restoring proper ABS sensor function with the included toothed ABS tone ring
• Eliminating axle vibrations caused by joint wear or boot failure
• Preventing grease leakage and contamination with durable neoprene boots
• Addressing axle nut thread or locking issues with included standard locking nut

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. The SK-8055 axle shaft’s overall compressed length of 23.31 inches (592 mm) should match OEM specifications. Use proper torque settings for the M18*1.5 axle nut to maintain secure fitment and avoid premature wear. Inspect the ABS tone ring alignment during installation to ensure accurate sensor readings. Replacement of the axle nut is recommended as it is included with the part.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SK-8055 is a new, not remanufactured, component built to meet industry standards. It includes a neoprene boot and ABS tone ring to maintain performance and durability. While specific warranty details are not provided, TrakMotive products typically adhere to manufacturer quality controls to ensure reliability in driveline applications.
