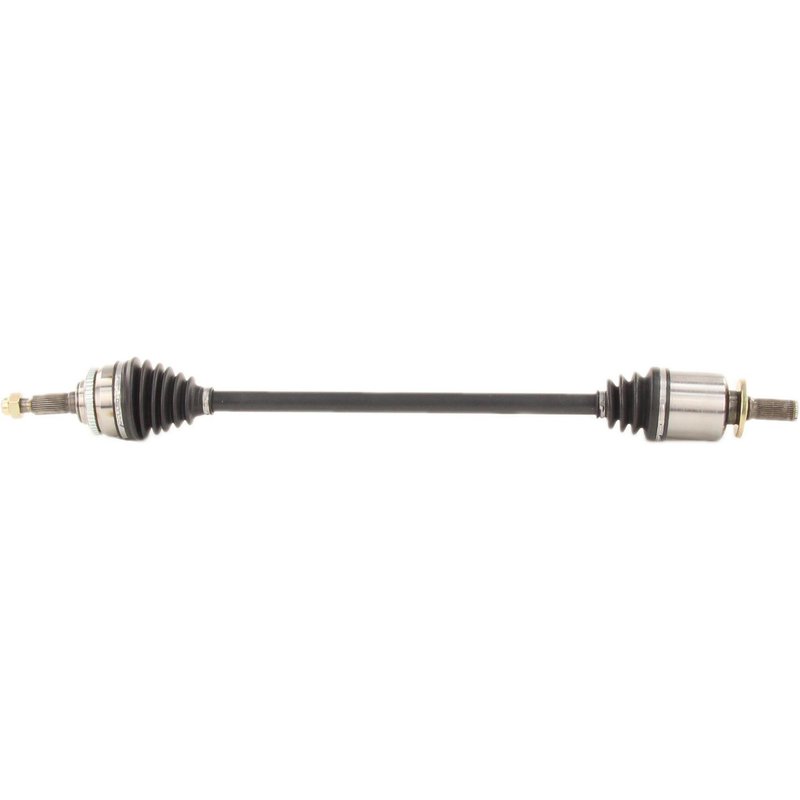

TrakMotive SK-8059 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft SK-8059 for Suzuki Forenza

The TrakMotive CV Axle Shaft SK-8059 is engineered specifically for Suzuki Forenza models, providing reliable driveline performance. Designed with precision, this new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Suzuki Forenza vehicles
• Includes a neoprene boot for enhanced durability
• Equipped with a 47-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 36.89 inches (937 mm)

Detailed Features and Specifications

This TrakMotive CV Axle Shaft SK-8059 belongs to the CV Axle Shaft product line, known for delivering precise driveline components tailored to specific vehicle applications. The axle shaft features a male inboard joint type with 34 splines and a conventional outboard joint with 33 splines, ensuring secure and efficient power transfer. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint.

The included ABS ring is a toothed type with 47 teeth, and the tone ring is included to maintain proper ABS sensor function. The axle nut is a hex head type measuring 30 mm across flats, with a length of 34.6 mm and a height of 21.5 mm. It uses an M20x1.5 thread size and a stake locking mechanism to prevent loosening during operation.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Suzuki Forenza models
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Addresses boot damage to prevent grease leakage and contamination
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8059, verify compatibility with your Suzuki Forenza model year and drivetrain configuration. Use proper torque specifications for the M20x1.5 axle nut and ensure the stake locking mechanism is correctly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation and replace if necessary to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. Please refer to TrakMotive's warranty policy for specific coverage details.
