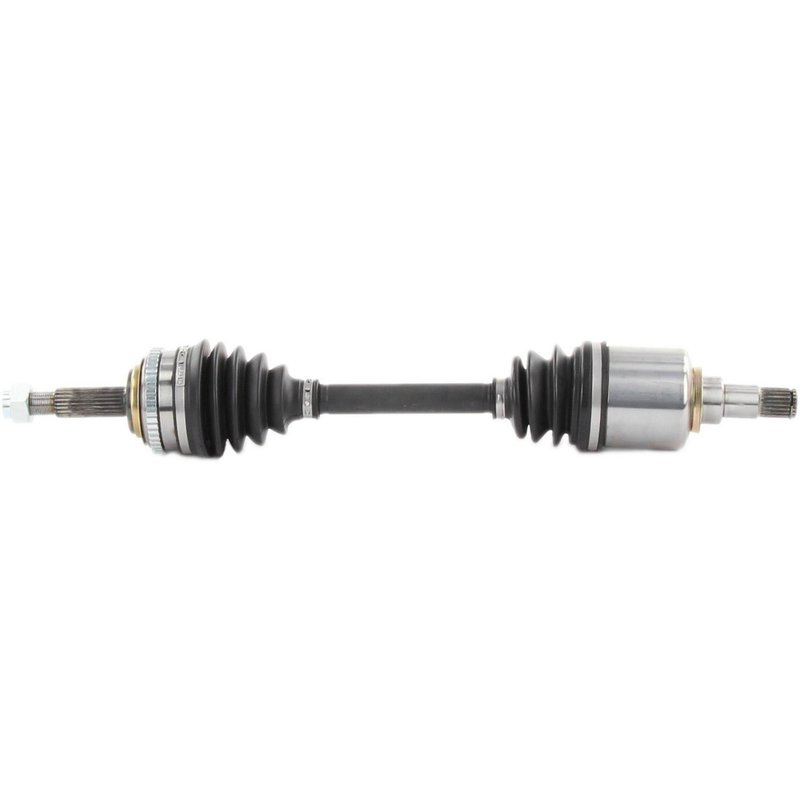

TrakMotive SK-8060 CV Axle Shaft - Front Left
| Brand | TrakMotive SK-8060 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 22 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.7 |
| Overall Compressed Length (mm) | 602 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet, Pontiac, and Suzuki · 31 vehicles |
OE-style replacement. New CV axle shaft with included axle nut and tone ring.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
ABS-ready design. Toothed ring and 47-tooth tone ring are included.
Cross-references Cardone New 66-1420, Cardone Reman 60-1419 and Cardone Reman 60-1420 for the same application. See all 19.
CV Axle Shaft for Aveo, Aveo5, G3, and Swift+
TrakMotive SK-8060 is a new front left CV axle shaft built for specific Chevrolet, Pontiac, and Suzuki applications. It is engineered with a 22-spline inboard connection, 22-spline outboard connection, and a 23.7 in. compressed length for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: SK-8060
- Front left position
- New axle assembly
- 22 inboard splines and 22 outboard splines
- Overall compressed length: 23.7 in. (602 mm)
- Neoprene boot material
- Male inboard shaft connection and conventional outboard shaft connection
- ABS tone ring included with 47-tooth toothed ring
- Axle nut included: M20 x 1.5, 30 mm hex, stake lock type
Product Details
TrakMotive SK-8060 is a CV axle shaft for front left driveline repair on the Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, Pontiac G3 Wave, Pontiac Wave, Pontiac Wave5, and Suzuki Swift+. This axle uses a neoprene boot and includes the ABS tone ring, making it a direct-fit replacement for applications that require the specified sensor ring configuration. The axle nut is also included and matches the listed thread, hex size, and locking style. This part cross-references Cardone New 66-1420 for the same application.
Vehicle Fitment
- Fits 2004-2011 Chevrolet Aveo, front left.
- Fits 2006-2011 Chevrolet Aveo5, front left.
- Fits 2009-2010 Pontiac G3, front left.
- Fits 2004-2010 Suzuki Swift+, front left.
- Fits 2009 Pontiac G3 Wave, front left.
- Fits 2006-2008 Pontiac Wave, front left.
- Fits 2005-2007 Pontiac Wave5, front left.
- Fits 2005 Pontiac Wave, front left, automatic.
Installation Notes
Verify spline count, axle length, ABS ring style, and axle nut specifications before installation. This front left CV axle shaft is listed for non-ABS applications unless otherwise noted, and ABS-equipped applications should be matched to the vehicle’s original configuration. Confirm the stake-style axle nut and 30 mm hex requirement during service on Chevrolet Aveo, Aveo5, Pontiac G3, and Suzuki Swift+ models.
Quality Assurance
TrakMotive identifies this axle as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2011 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2010 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2010 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2010 | Pontiac | G3 | Automatic | Front Left | CV Axle Shaft |
| 2010 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2009 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2009 | Pontiac | G3 | Automatic | Front Left | CV Axle Shaft |
| 2009 | Pontiac | G3 Wave | Automatic | Front Left | CV Axle Shaft |
| 2009 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2008 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2008 | Pontiac | Wave | Automatic | Front Left | CV Axle Shaft |
| 2008 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2007 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2007 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2007 | Pontiac | Wave | Automatic | Front Left | CV Axle Shaft |
| 2007 | Pontiac | Wave5 | Automatic | Front Left | CV Axle Shaft |
| 2007 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2006 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2006 | Chevrolet | Aveo5 | Automatic | Front Left | CV Axle Shaft |
| 2006 | Pontiac | Wave | Automatic | Front Left | CV Axle Shaft |
| 2006 | Pontiac | Wave5 | Automatic | Front Left | CV Axle Shaft |
| 2006 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2005 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2005 | Pontiac | Wave | — | Front Left | Automatic; CV Axle Shaft |
| 2005 | Pontiac | Wave5 | — | Front Left | CV Axle Shaft |
| 2005 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
| 2004 | Chevrolet | Aveo | Automatic | Front Left | CV Axle Shaft |
| 2004 | Suzuki | Swift+ | Automatic | Front Left | CV Axle Shaft |
