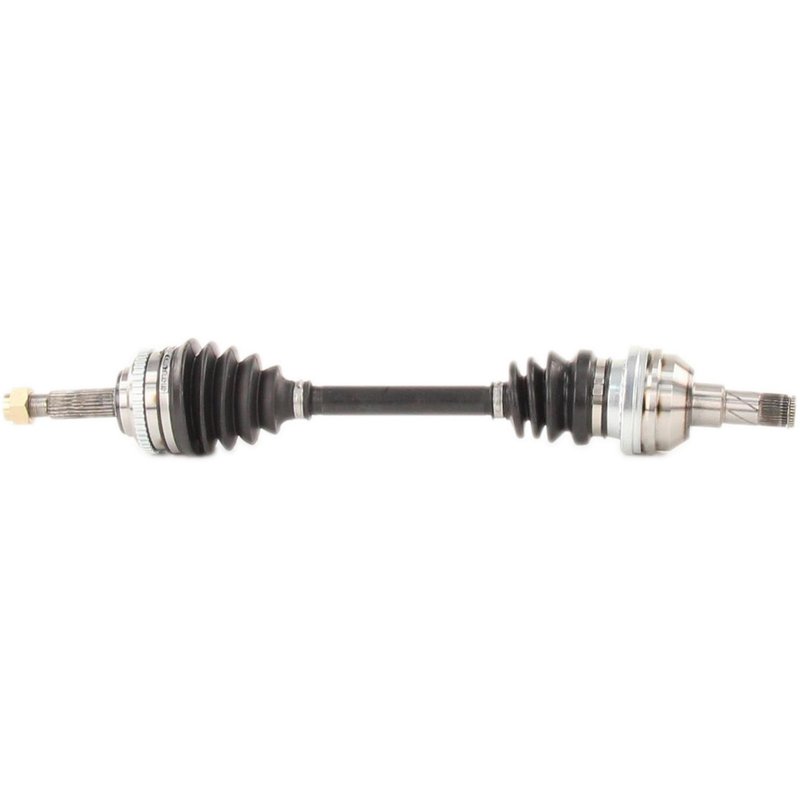

TrakMotive SK-8062 CV Axle Shaft - Front Left

TrakMotive CV Axle Shaft SK-8062 Overview

The TrakMotive CV Axle Shaft SK-8062 is engineered for reliable driveline performance in select Chevrolet, Pontiac, and Suzuki models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Chevrolet Aveo, Pontiac G3, and Suzuki Swift+.

• Compatible with Chevrolet Aveo, Aveo5, Pontiac G3, G3 Wave, and Suzuki Swift+, Wave, Wave5
• Includes a neoprene boot for enhanced durability and protection
• Equipped with a 47-tooth ABS ring and included ABS tone ring for accurate wheel speed sensing
• Features a hex head axle nut with stake locking for secure installation
• Overall compressed length of 24.09 inches (612 mm) for precise fitment

Detailed Product Features and Specifications

The SK-8062 CV Axle Shaft from TrakMotive's CV Axle Shaft product line is a new, direct replacement part designed to restore driveline integrity. It features a male inboard joint and conventional outboard joint, with 34 inboard splines and 22 outboard splines to ensure proper engagement and torque transfer. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex type with a 30 mm hex size, 21.5 mm height, and a thread size of M20x1.5, secured by a stake locking mechanism to prevent loosening during operation.

Applications and Common Repair Solutions

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Restores proper ABS sensor function with included toothed ABS tone ring
• Fixes axle nut issues related to thread wear or locking failure
• Addresses boot damage or leaks to prevent joint contamination
• Ensures correct driveline length and spline engagement for smooth power delivery

Installation Notes and Tips

When installing the TrakMotive SK-8062 CV Axle Shaft, verify compatibility with your vehicle’s make and model, specifically Chevrolet Aveo, Pontiac G3, or Suzuki Swift+ variants. Use the included hex axle nut and stake locking method to secure the axle properly. Inspect the neoprene boot for any damage during installation and ensure the ABS tone ring is correctly positioned for accurate sensor readings. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty Information

TrakMotive CV Axle Shafts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. This SK-8062 part is new and includes all necessary components such as the axle nut and ABS tone ring. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
