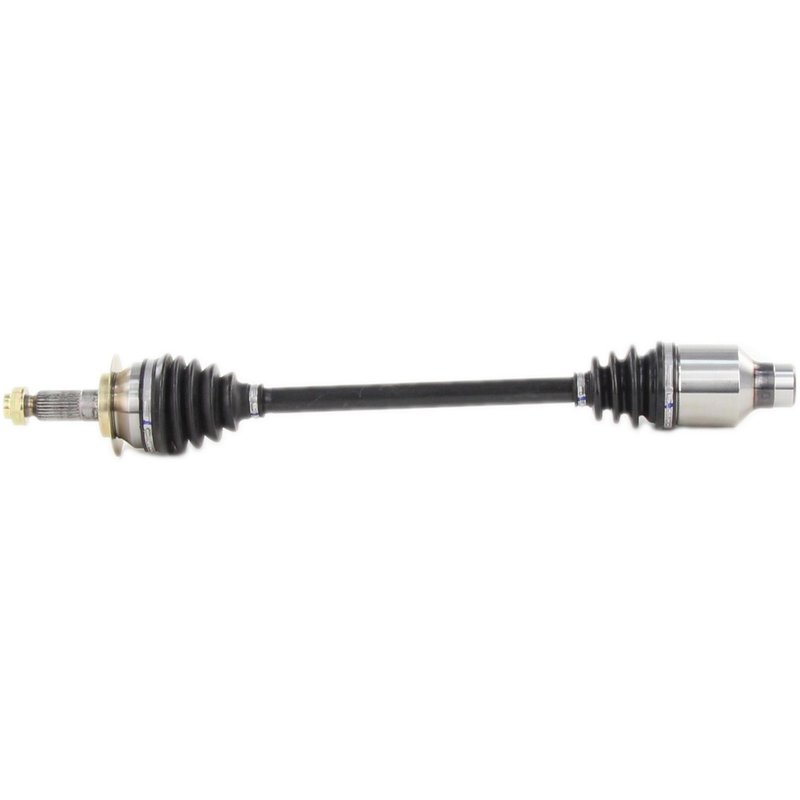

TrakMotive SK-8086 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft SK-8086

The TrakMotive CV Axle Shaft SK-8086 is designed specifically for Suzuki SX4 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Suzuki SX4 vehicles
• New, not remanufactured, for consistent quality
• Includes axle nut with stake locking type
• Neoprene boot material for durability and protection
• Hex head axle nut with M22*1.5 thread size
• Overall compressed length of 27.42 inches (696.5 mm)
• Female inboard joint and conventional outboard joint types
• 26 inboard splines and 28 outboard splines for secure fitment

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft SK-8086 is part of the CV Axle Shaft product line, which focuses on delivering precise fit and reliable driveline components. This axle shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a female connection style with 26 splines, while the outboard joint is conventional with 28 splines, ensuring compatibility with the Suzuki SX4's drivetrain. The included axle nut has a hex head measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). The stake locking type nut secures the axle firmly in place, preventing loosening during operation. The overall compressed length of 27.42 inches (696.5 mm) matches OEM specifications for proper installation and function.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Suzuki SX4
• Resolving clicking or popping noises during turns caused by joint wear
• Fixing vibration or shuddering issues related to axle imbalance
• Addressing grease leaks from torn or damaged CV boots
• Restoring driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8086 on a Suzuki SX4, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. The neoprene boot should be inspected for any damage during installation to maintain joint protection. Verify spline engagement on both inboard and outboard connections for a secure fit. It is recommended to replace the axle nut included with the shaft to ensure proper locking and safety.

Quality Assurance and Warranty Information

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. TrakMotive provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, new parts typically carry a limited warranty against defects in materials and workmanship. Always consult product documentation or supplier information for exact warranty terms.
