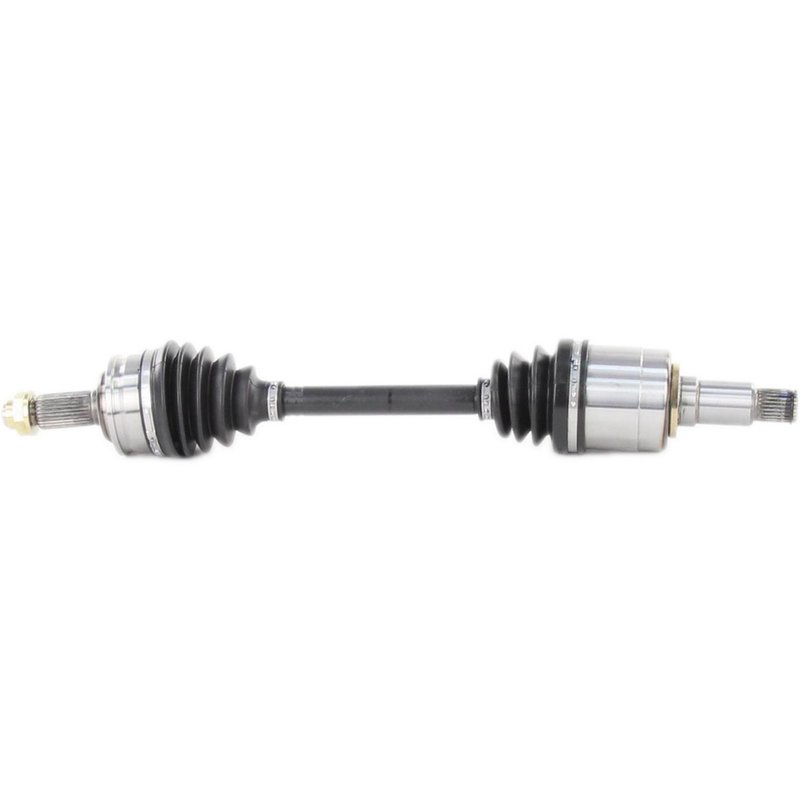

TrakMotive SK-8089 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft SK-8089 for Suzuki Grand Vitara

The TrakMotive CV Axle Shaft SK-8089 is designed specifically for Suzuki Grand Vitara models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Suzuki Grand Vitara
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut with M22*1.5 thread size
• Overall compressed length of 24.25 inches (616 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fit and function. The SK-8089 model features a conventional outboard joint and a male inboard joint with spline shaft connections, ensuring smooth power transfer and compatibility with the Suzuki Grand Vitara's driveline system.

Technical Specifications and Features

This CV axle shaft includes a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut is a hex head type measuring 1.25 inches (31.8 mm) across the flats, with a height of 0.79 inches (20 mm) and a length of 1.45 inches (36.72 mm). It uses a stake locking mechanism to secure the nut firmly in place. The inboard shaft connection features 26 splines, while the outboard shaft has 28 splines, both designed for spline-style connections to ensure a secure fit.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Suzuki Grand Vitara
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded boots
• Fixes axle shaft failure due to joint wear or corrosion
• Restores driveline integrity for smooth power delivery

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SK-8089, ensure the axle nut is torqued to manufacturer specifications and properly stake the locking nut to prevent loosening. Inspect the axle splines for damage before installation and verify the neoprene boot is seated correctly to avoid premature wear. This part is designed for direct replacement on compatible Suzuki Grand Vitara models.

Quality Assurance and Warranty

The SK-8089 CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards. It includes the axle nut and features durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
