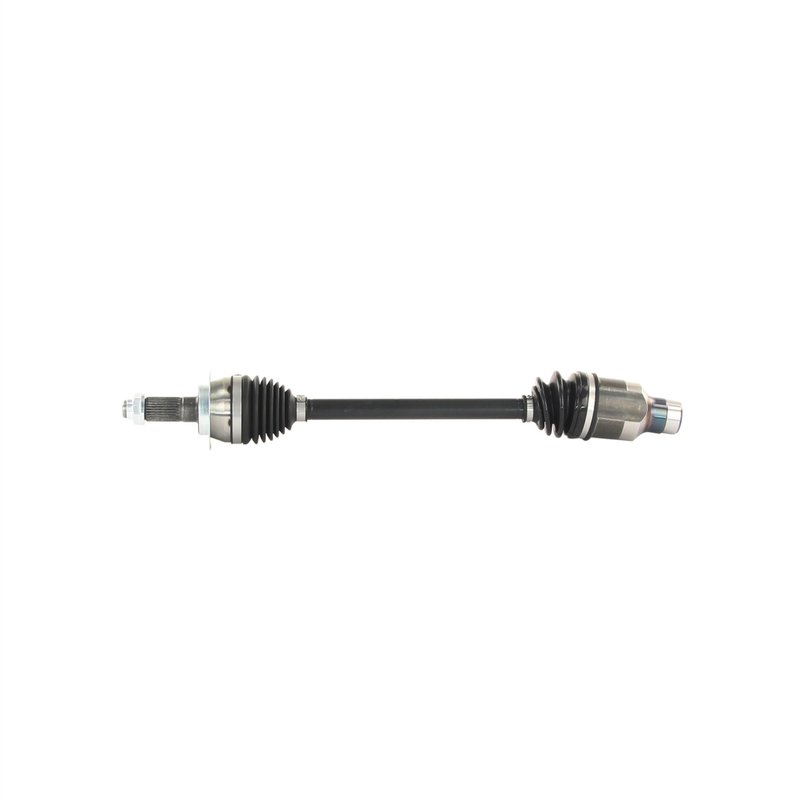

TrakMotive SK-86001 CV Axle Shaft - Front Right
| Brand | TrakMotive SK-86001 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.56 |
| Overall Compressed Length (mm) | 624 |
| Overall Extended Length (in) | 26.31 |
| Overall Extended Length (mm) | 668 |
| Product line | CV Axle Shaft |
| Fits | Suzuki · 3 vehicles |
OE direct replacement. Built as a CV axle shaft for straightforward replacement.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Premium grade. ISO 9001:2008 and TS 16949:2009 certified manufacturing.
Cross-references TrakMotive SK-86001 for the same application. See all 1.
TrakMotive SK-86001 Front Right CV Axle Shaft
The TrakMotive SK-86001 CV axle shaft is a premium driveline replacement for the front right position on select Suzuki SX4 models. It is built for 2007-2009 Suzuki SX4 applications and matches the required axle dimensions, spline counts, and joint configuration for the listed fitment.
Key Features
- Front right CV axle shaft for 2007-2009 Suzuki SX4
- Premium grade replacement from TrakMotive
- Inboard joint type: female
- Outboard joint type: conventional
- 26 inboard splines and 28 outboard splines
- Overall compressed length: 24.56 in (624 mm)
- Overall extended length: 26.31 in (668 mm)
- Axle nut thread size: M22x1.5
- Axle nut socket size: 32 mm
- ABS tone ring not included
Product Details
TrakMotive CV Axle Shaft SK-86001 is engineered for direct replacement use on the front right side of the Suzuki SX4. The shaft uses a female inboard joint and a conventional outboard joint, with 26 inboard splines and 28 outboard splines to match the listed vehicle application. This part is a standard duty replacement for the 2007, 2008, and 2009 Suzuki SX4 and is built to the dimensional and connection requirements of that platform. TrakMotive SK-86001 is also identified by part number SK-86001 for cross-reference and catalog lookup.
TrakMotive’s CV axle shaft line focuses on driveline replacement parts for passenger vehicles, with ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. The brand notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle is listed without an ABS tone ring.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Axle shaft wear that affects driveline smoothness
- Front right driveline replacement needs on the Suzuki SX4
Installation Notes and Tips
Confirm the front right position, spline count, axle nut thread size, and overall length before installation. Verify whether the vehicle uses ABS hardware, since this axle is listed without an ABS tone ring. Use the correct 32 mm axle nut socket and M22x1.5 axle nut specification during service, and inspect related suspension and hub components for wear before completing the repair.
Quality Assurance
TrakMotive SK-86001 is backed by a limited lifetime warranty. It is produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for driveline replacement parts.
| Year | Make | Model | Body Type | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Suzuki | SX4 | Hatchback | AWD | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Suzuki | SX4 | Hatchback | AWD | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Suzuki | SX4 | Hatchback | AWD | Manual | Front Right | Standard Duty Replacement; CV Axle Shaft |
