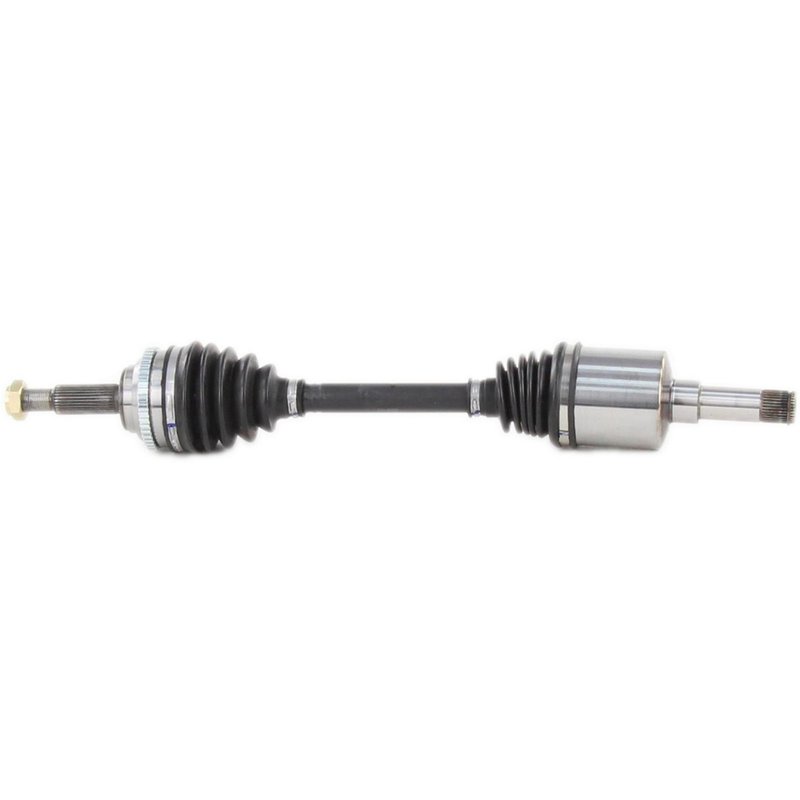

TrakMotive SN-8002 CV Axle Shaft - Front Left
| Brand | TrakMotive SN-8002 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.72 |
| Overall Compressed Length (mm) | 628 |
| Product line | CV Axle Shaft |
| Fits | Saturn · 15 vehicles |
OE-style replacement. New CV axle shaft with included axle nut and tone ring.
Neoprene boot. Helps resist wear while keeping the joint protected.
Certified quality. Made by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone Reman 60-1119, Cardone Reman 60-1150 and TrakMotive SN-8002 for the same application. See all 16.
TrakMotive SN-8002 CV Axle Shaft
TrakMotive SN-8002 is a new front left CV axle shaft for select Saturn compact cars, including 1991-1993 Saturn SL, SL1, and SL2, plus 1991-1992 Saturn SC and 1993 Saturn SC1, SC2, SW1, and SW2. It is built for direct replacement service with application-specific spline counts, ABS tone ring details, and included axle nut specifications.
Key Features
- New CV axle shaft for front left driveline service
- Fits Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 applications listed below
- Inboard male shaft connection with 34 inboard splines
- Conventional outboard joint with 31 outboard splines
- Neoprene boot material for driveline protection
- ABS tone ring included; 47-tooth toothed ring design
- Axle nut included with M20 x 1.5 thread, 30 mm hex, self-locking style
- Overall compressed length: 24.72 in (628 mm)
Product Details
TrakMotive CV Axle Shaft SN-8002 is a direct-fit driveline replacement engineered for the front left position on select Saturn models. The axle uses a male inboard shaft connection, a conventional outboard joint, and the specified spline counts to match the original application. The included ABS tone ring and toothed 47-tooth design support vehicles equipped for wheel speed sensing, while ABS axles also fit non-ABS applications unless otherwise noted by the vehicle setup. TrakMotive SN-8002 is a practical choice when replacing a worn Saturn CV axle shaft on SC, SL, and SW platform vehicles.
This part cross-references Cardone Reman 60-1119 and 60-1150 for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder caused by axle wear or imbalance
- Grease leakage from a damaged axle boot
- Noise from excessive play in the driveline shaft
- ABS-related wheel speed signal issues when the tone ring is damaged
Installation Notes
Verify front left fitment by year, model, spline count, and axle nut specifications before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle hardware. Inspect the hub, seals, and suspension components during replacement to help prevent repeat axle wear. Always compare the overall compressed length and ABS tone ring configuration to the original axle on the vehicle.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
- Fits 1993 Saturn SC1, front left
- Fits 1993 Saturn SC2, front left
- Fits 1991-1993 Saturn SL, front left
- Fits 1991-1993 Saturn SL1, front left
- Fits 1991-1993 Saturn SL2, front left
- Fits 1993 Saturn SW1, front left
- Fits 1993 Saturn SW2, front left
- Fits 1991-1992 Saturn SC, front left
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Saturn | SC1 | Front Left | CV Axle Shaft |
| 1993 | Saturn | SC2 | Front Left | CV Axle Shaft |
| 1993 | Saturn | SL | Front Left | CV Axle Shaft |
| 1993 | Saturn | SL1 | Front Left | CV Axle Shaft |
| 1993 | Saturn | SL2 | Front Left | CV Axle Shaft |
| 1993 | Saturn | SW1 | Front Left | CV Axle Shaft |
| 1993 | Saturn | SW2 | Front Left | CV Axle Shaft |
| 1992 | Saturn | SC | Front Left | CV Axle Shaft |
| 1992 | Saturn | SL | Front Left | CV Axle Shaft |
| 1992 | Saturn | SL1 | Front Left | CV Axle Shaft |
| 1992 | Saturn | SL2 | Front Left | CV Axle Shaft |
| 1991 | Saturn | SC | Front Left | CV Axle Shaft |
| 1991 | Saturn | SL | Front Left | CV Axle Shaft |
| 1991 | Saturn | SL1 | Front Left | CV Axle Shaft |
| 1991 | Saturn | SL2 | Front Left | CV Axle Shaft |
