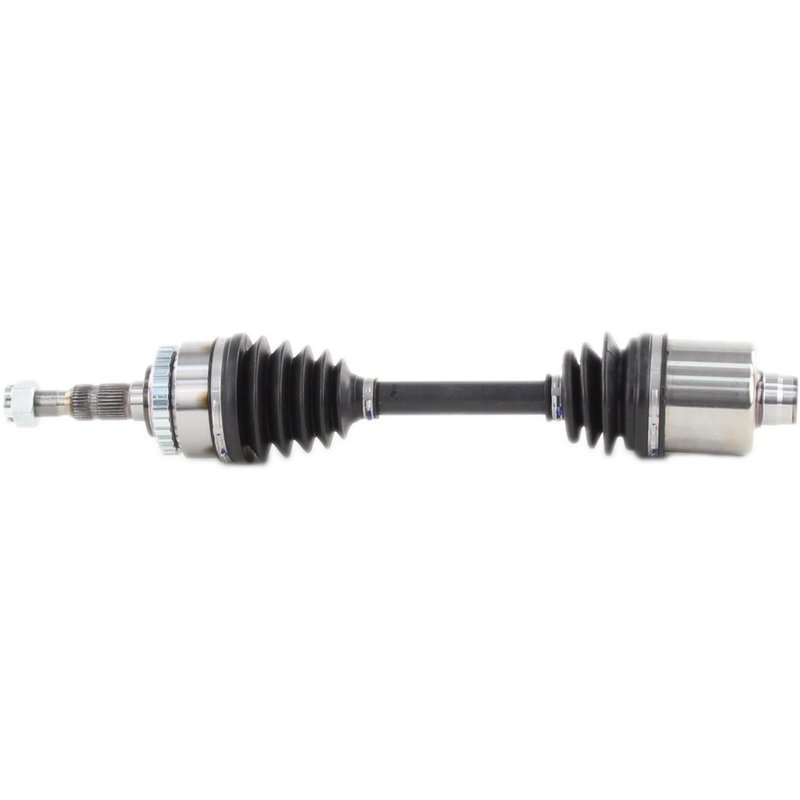

TrakMotive SN-8005 CV Axle Shaft - Front Left or Front Right
Overview of the TrakMotive CV Axle Shaft SN-8005
The TrakMotive CV Axle Shaft SN-8005 is engineered for reliable driveline performance in Saturn vehicles. Designed specifically for models including the L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300, this axle shaft ensures precise fitment and durability.
- Compatible with multiple Saturn models: L100, L200, L300, LS series, and LW series
- Includes a neoprene boot for enhanced protection and longevity
- Equipped with a 29-tooth ABS ring and included tone ring for accurate wheel speed sensing
- Features a hex head axle nut with cotter pin locking for secure installation
- Overall compressed length of 21.61 inches (549 mm) for exact fitment
TrakMotive CV Axle Shaft Product Line Details
The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes durability and precise engineering, including features such as female inboard joint connections and conventional outboard joints, ensuring compatibility and performance for Saturn driveline systems.
Technical Specifications and Features
The SN-8005 CV Axle Shaft includes a neoprene boot material that resists wear and environmental damage. It has a female inboard joint type with 34 splines and a conventional outboard joint with 33 splines, providing smooth power transfer. The axle nut is a hex type, measuring 30 mm across flats, 22 mm in height, and 34.6 mm in length, secured with a cotter pin locking mechanism. The ABS ring is toothed with 29 teeth and includes a tone ring to maintain accurate ABS sensor readings.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Saturn L100, L200, L300, LS, and LW models
- Resolves issues related to torn or leaking CV boots
- Addresses axle shaft vibration or clicking noises during turns
- Restores proper ABS sensor function with included tone ring
- Fixes axle nut loosening problems with cotter pin locking design
Installation Notes and Tips
Ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the correct orientation of the female inboard joint and conventional outboard joint during installation. Inspect the neoprene boot for any damage before installation to maintain protection against contaminants. The overall compressed length of 21.61 inches (549 mm) should match the vehicle’s original axle shaft length for proper fitment.
Quality Assurance and Warranty
The TrakMotive CV Axle Shaft SN-8005 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring for reliable sensor performance and comes with the necessary axle nut for secure installation. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
| Brand | TrakMotive |
| Part Number | SN-8005 |
| Position | CV Axle Shaft, Front Left |
| Abs Ring Tooth Count | 29 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M20*1 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.61 |
| Overall Compressed Length (mm) | 549 |
This part fits 46 vehicles. Search below:
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Saturn | L300 | Front Right | CV Axle Shaft | ||
| 2005 | Saturn | L300 | Front Left | CV Axle Shaft | ||
| 2004 | Saturn | L300 | 3 | Front Right | CV Axle Shaft | |
| 2004 | Saturn | L300 | 3 | Front Left | CV Axle Shaft | |
| 2004 | Saturn | L300 | 2 | Front Right | CV Axle Shaft | |
| 2004 | Saturn | L300 | 2 | Front Left | CV Axle Shaft | |
| 2004 | Saturn | L300 | 1 | Front Right | CV Axle Shaft | |
| 2004 | Saturn | L300 | 1 | Front Left | CV Axle Shaft | |
| 2003 | Saturn | L200 | Automatic | Front Right | CV Axle Shaft | |
| 2003 | Saturn | L200 | Automatic | Front Left | CV Axle Shaft | |
| 2003 | Saturn | L300 | Automatic | Front Right | CV Axle Shaft | |
| 2003 | Saturn | L300 | Automatic | Front Left | CV Axle Shaft | |
| 2003 | Saturn | LW200 | Automatic | Front Right | CV Axle Shaft | |
| 2003 | Saturn | LW200 | Automatic | Front Left | CV Axle Shaft | |
| 2003 | Saturn | LW300 | Automatic | Front Right | CV Axle Shaft | |
| 2003 | Saturn | LW300 | Automatic | Front Left | CV Axle Shaft | |
| 2002 | Saturn | L100 | Automatic | Front Right | CV Axle Shaft | |
| 2002 | Saturn | L100 | Automatic | Front Left | CV Axle Shaft | |
| 2002 | Saturn | L200 | Automatic | Front Right | CV Axle Shaft | |
| 2002 | Saturn | L200 | Automatic | Front Left | CV Axle Shaft | |
| 2002 | Saturn | L300 | Automatic | Front Right | CV Axle Shaft | |
| 2002 | Saturn | L300 | Automatic | Front Left | CV Axle Shaft | |
| 2002 | Saturn | LW200 | Automatic | Front Right | CV Axle Shaft | |
| 2002 | Saturn | LW200 | Automatic | Front Left | CV Axle Shaft | |
| 2002 | Saturn | LW300 | Automatic | Front Right | CV Axle Shaft | |
| 2002 | Saturn | LW300 | Automatic | Front Left | CV Axle Shaft | |
| 2001 | Saturn | L100 | Automatic | Front Right | CV Axle Shaft | |
| 2001 | Saturn | L100 | Automatic | Front Left | CV Axle Shaft | |
| 2001 | Saturn | L200 | Automatic | Front Right | CV Axle Shaft | |
| 2001 | Saturn | L200 | Automatic | Front Left | CV Axle Shaft | |
| 2001 | Saturn | L300 | Automatic | Front Right | CV Axle Shaft | |
| 2001 | Saturn | L300 | Automatic | Front Left | CV Axle Shaft | |
| 2001 | Saturn | LW200 | Automatic | Front Right | CV Axle Shaft | |
| 2001 | Saturn | LW200 | Automatic | Front Left | CV Axle Shaft | |
| 2001 | Saturn | LW300 | Automatic | Front Right | CV Axle Shaft | |
| 2001 | Saturn | LW300 | Automatic | Front Left | CV Axle Shaft | |
| 2000 | Saturn | LS | Automatic | Front Right | CV Axle Shaft | |
| 2000 | Saturn | LS | Automatic | Front Left | CV Axle Shaft | |
| 2000 | Saturn | LS1 | Automatic | Front Right | CV Axle Shaft | |
| 2000 | Saturn | LS1 | Automatic | Front Left | CV Axle Shaft | |
| 2000 | Saturn | LS2 | Automatic | Front Right | CV Axle Shaft | |
| 2000 | Saturn | LS2 | Automatic | Front Left | CV Axle Shaft | |
| 2000 | Saturn | LW1 | Automatic | Front Right | CV Axle Shaft | |
| 2000 | Saturn | LW1 | Automatic | Front Left | CV Axle Shaft | |
| 2000 | Saturn | LW2 | Automatic | Front Right | CV Axle Shaft | |
| 2000 | Saturn | LW2 | Automatic | Front Left | CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
