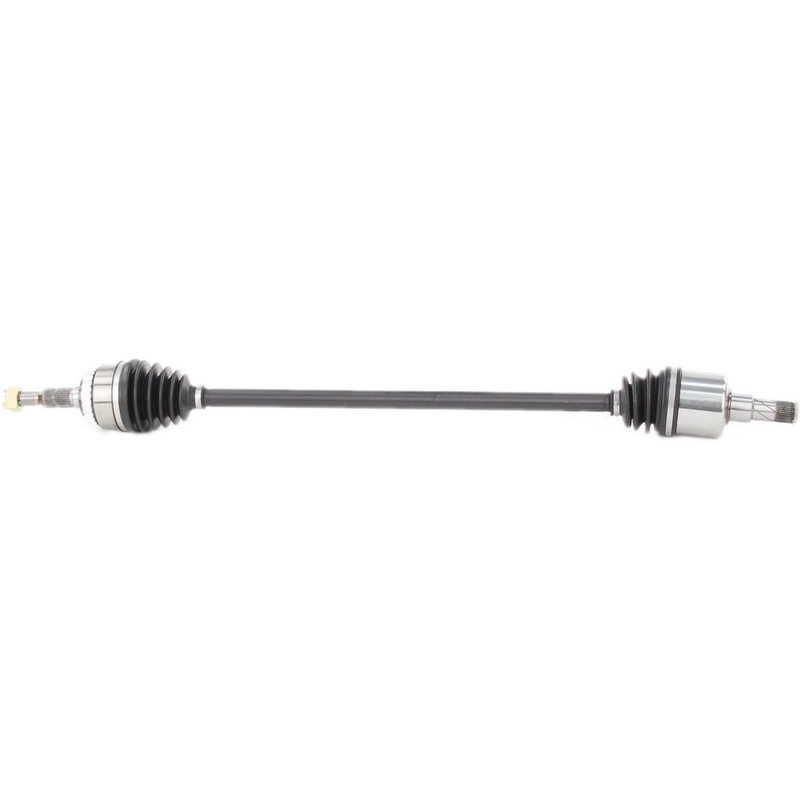

TrakMotive SN-8007 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Saturn L-Series Vehicles

The TrakMotive CV Axle Shaft SN-8007 is engineered to provide dependable driveline performance for Saturn L100, L200, L300, LS, LS1, LW200, and LW300 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Saturn L100, L200, L300, LS, LS1, LW200, and LW300 models
• Includes a 29-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut features a hex head, cotter pin locking, and M20*1 thread size for secure installation
• Overall compressed length of 38.37 inches (974.5 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This CV Axle Shaft SN-8007 is part of that line, offering precise engineering with features such as a male inboard joint and conventional outboard joint types, ensuring compatibility and reliable driveline operation for Saturn vehicles.

Technical Specifications and Features

This CV Axle Shaft includes a 29-tooth ABS tone ring, which is essential for the vehicle's anti-lock braking system to function correctly. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is included and features a 30 mm hex size with a 22 mm height, secured by a cotter pin locking mechanism to maintain safety and stability during operation. The shaft has 34 inboard splines and 33 outboard splines, with a male inboard shaft connection style and a conventional outboard connection style, ensuring a precise and secure fit.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Saturn L-series vehicles
• Resolves issues related to clicking or popping noises during turns
• Eliminates vibrations caused by faulty or imbalanced axles
• Restores proper ABS sensor function with included toothed ABS ring
• Prevents grease leaks and joint contamination with durable neoprene boot

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SN-8007, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the correct orientation of the male inboard joint and conventional outboard joint for proper alignment. Use appropriate torque specifications for the M20*1 threaded axle nut and inspect the neoprene boot for any damage before installation to maintain joint integrity.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. It includes the axle nut and ABS tone ring to provide a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance.
