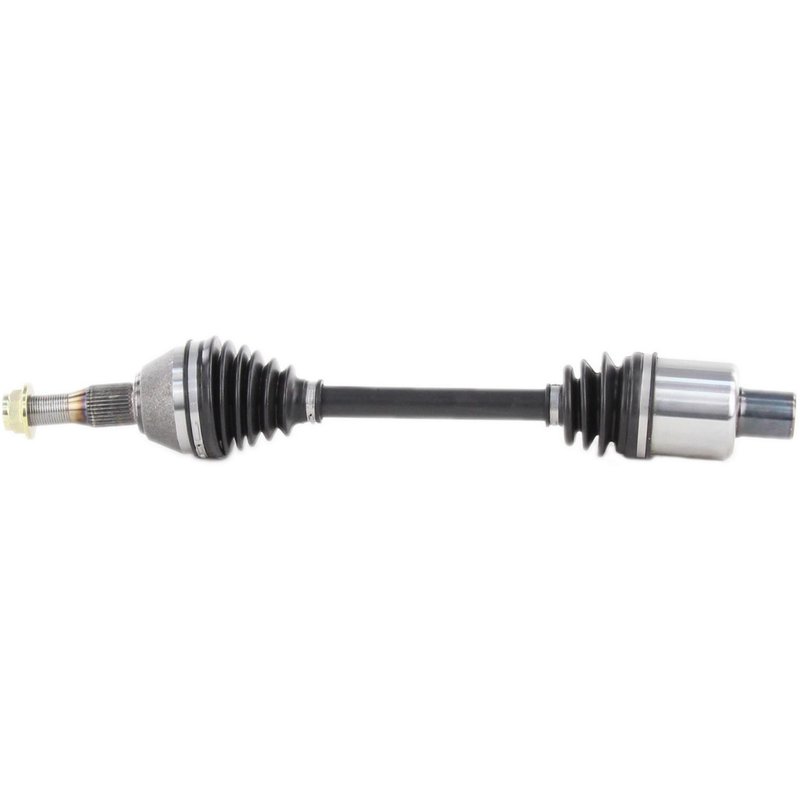

TrakMotive SN-8012 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft SN-8012 for Saturn Vue

The TrakMotive CV Axle Shaft SN-8012 is designed specifically for Saturn Vue models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Saturn Vue vehicles
• New, not remanufactured, for consistent quality
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 24.13 inches (613 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fit and function. This CV Axle Shaft model SN-8012 features a female inboard joint type with 34 splines and a conventional outboard joint with 33 splines, ensuring compatibility with the Saturn Vue's driveline system. The included axle nut is a self-locking type with a 32.8 mm hex size, designed to maintain secure installation under operating conditions.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot to protect the joints from contaminants and wear. The inboard shaft connection style is female, matching the vehicle's design requirements. The axle nut included measures 1 1/2 inches (37.9 mm) in length and features a hex head for ease of installation. The thread size is M27*2, and the nut height is approximately 22 mm (6/7 inch). The overall compressed length of the shaft is 24.13 inches (613 mm), ensuring proper fitment within the Saturn Vue's driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Saturn Vue
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage with durable neoprene boot
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SN-8012, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the female inboard joint aligns correctly with the transmission splines. Inspect the neoprene boot for any damage during installation to prevent premature joint failure. Proper lubrication and clean mating surfaces will aid in a smooth installation process.

Quality Assurance and Warranty

This CV axle shaft is a new component manufactured to meet OEM standards for fit and function. The included self-locking axle nut is designed to maintain secure attachment under normal operating conditions. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability for Saturn Vue applications.
