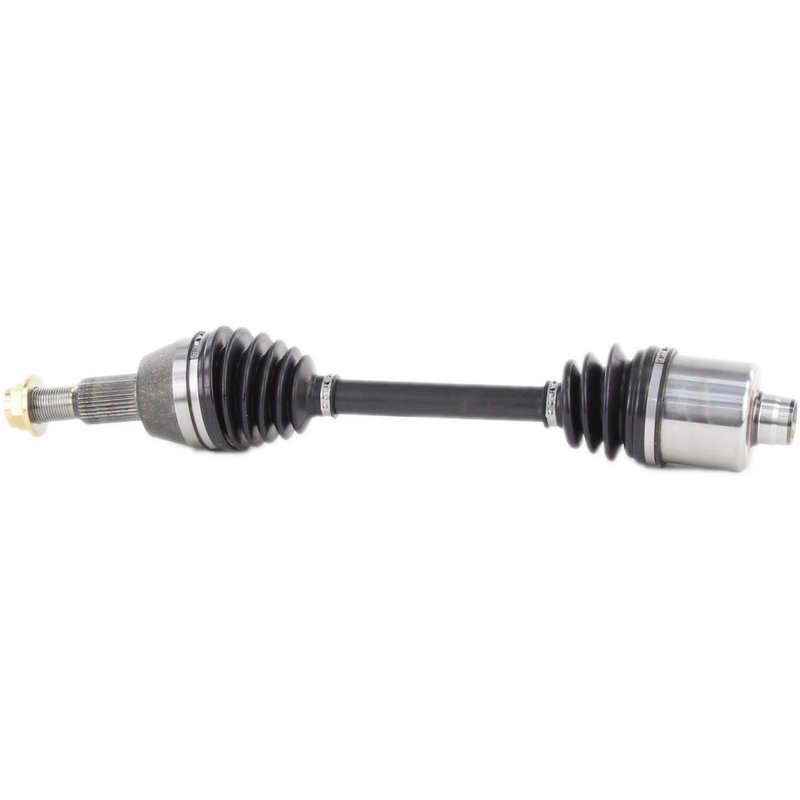

TrakMotive SN-8023 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft SN-8023 for Saturn Vue

The TrakMotive CV Axle Shaft SN-8023 is designed specifically for Saturn Vue models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Saturn Vue vehicles
• Includes self-locking axle nut with hex head
• Neoprene boot material for enhanced joint protection
• Female inboard joint with 34 splines and conventional outboard joint with 33 splines
• Overall compressed length of 22.09 inches (561 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. This CV Axle Shaft SN-8023 is part of that line, featuring a neoprene boot for durability and a self-locking axle nut to maintain secure installation. The product line emphasizes compatibility with specific vehicle makes and models, such as the Saturn Vue, ensuring reliable driveline operation.

Technical Specifications and Features

This CV axle shaft includes a hex head axle nut measuring 1 2/7 inches (32.8 mm) across flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37.9 mm). The axle nut features a self-locking design with an M27*2 thread size, enhancing safety and preventing loosening during operation. The inboard joint is female type with 34 splines, while the outboard joint is conventional with 33 splines, both designed for secure shaft connection. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Saturn Vue
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or degraded CV boots
• Fixes axle shaft failure due to joint wear or spline damage
• Improves driveline stability and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft SN-8023, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle shaft splines and joint connections for proper engagement. The neoprene boot should be checked for secure seating to prevent contamination. This part is designed for direct replacement on compatible Saturn Vue models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SN-8023 is a new component manufactured to meet OEM standards for fit and function. It includes a self-locking axle nut and durable neoprene boot to enhance longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in driveline applications.
