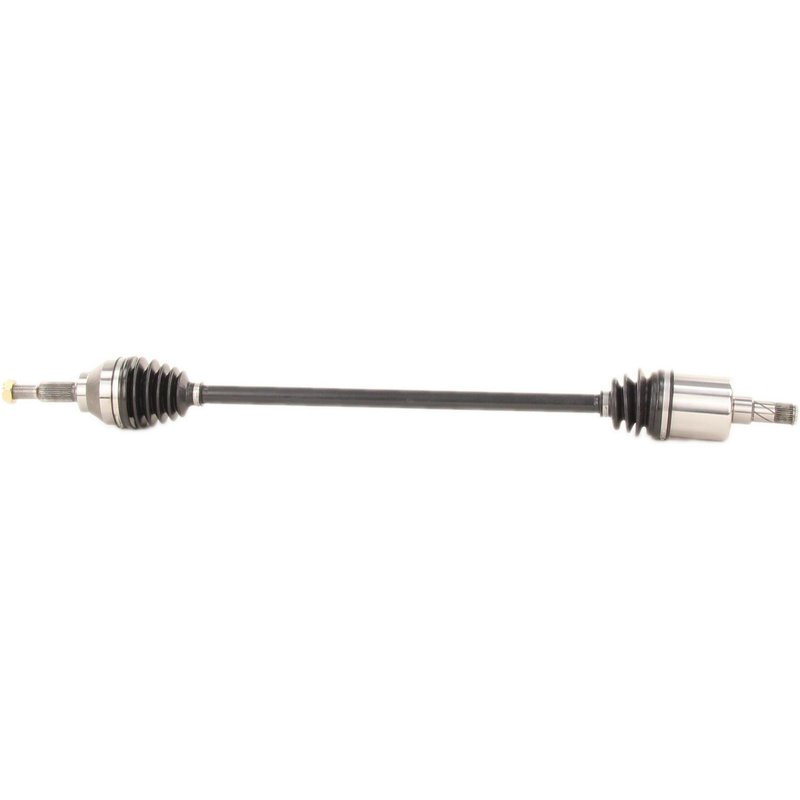

TrakMotive SN-8025 CV Axle Shaft - Front Right
| Brand | TrakMotive SN-8025 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/9 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.95 |
| Overall Compressed Length (mm) | 964 |
| Product line | CV Axle Shaft |
| Fits | Saturn · 5 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps protect the joint from wear and contamination.
Included axle nut. Self-locking design with a hex head for secure installation.
Cross-references Cardone New 66-1373, Cardone Reman 60-1373 and Four Seasons 1352N for the same application. See all 11.
CV Axle Shaft for Saturn Ion Front Right
TrakMotive SN-8025 is a new CV axle shaft for the front right position on 2003-2004 Saturn Ion models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2003-2004 Saturn Ion, front right
- TrakMotive CV Axle Shaft, part number SN-8025
- New replacement axle shaft for driveline repair
- Neoprene boot material for joint protection
- Male inboard joint type with conventional outboard joint type
- Includes axle nut with M20 x 1.5 thread size
- 30 mm axle nut hex size with self-locking design
- 34 inboard splines and 33 outboard splines
- Overall compressed length: 37.95 in (964 mm)
Product Details
SN-8025 is a front right CV axle shaft engineered for the Saturn Ion platform in 2003 and 2004. The axle uses a male inboard shaft connection and a conventional outboard shaft connection, with 34 inboard splines and 33 outboard splines for the listed fitment. The included axle nut features a hex head, self-locking design, and M20 x 1.5 thread size. TrakMotive SN-8025 is also referenced by Cardone New 66-1373, Cardone Reman 60-1373, Four Seasons 1352N, and other listed cross-reference numbers for the same application.
Common Repair Symptoms
- Clicking or popping during turns
- Vibration during acceleration
- Grease leakage around the axle boot
- Worn or damaged CV joint components
- Noise from the front right driveline area
Installation Notes
Verify front right fitment before installation on the 2003-2004 Saturn Ion. Confirm spline count, axle length, and axle nut thread size against the original part before assembly. ABS tone ring is not included. ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. Limited lifetime warranty coverage is provided by the manufacturer.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Saturn | Ion | 3 | Automatic CVT | 2.2L | L4 | Front Right | CV Axle Shaft |
| 2004 | Saturn | Ion | 2 | Automatic CVT | 2.2L | L4 | Front Right | CV Axle Shaft |
| 2003 | Saturn | Ion | 3 | Automatic CVT | 2.2L | L4 | Front Right | CV Axle Shaft |
| 2003 | Saturn | Ion | 2 | Automatic CVT | 2.2L | L4 | Front Right | CV Axle Shaft |
| 2003 | Saturn | Ion | 1 | Automatic CVT | 2.2L | L4 | Front Right | CV Axle Shaft |
