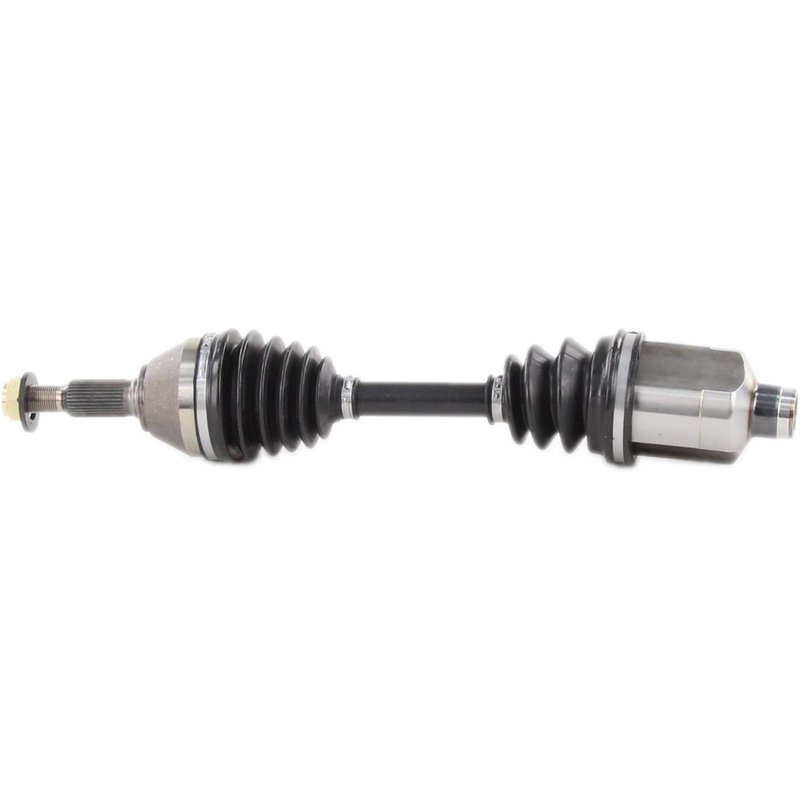

TrakMotive SN-8026 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft SN-8026

The TrakMotive CV Axle Shaft SN-8026 is designed for reliable driveline performance in select Chevrolet, Pontiac, and Saturn models. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Chevrolet Cobalt, Pontiac G5, and Saturn Ion.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: SN-8026
• Compatible Makes: Chevrolet, Pontiac, Saturn
• Compatible Models: Cobalt, G4, G5, HHR, Ion, Pursuit
• Overall Compressed Length: 20.67 inches (525 mm)
• Axle Nut Included: Yes, self-locking hex type
• Boot Material: Durable neoprene
• Inboard Joint Type: Female with 34 splines
• Outboard Joint Type: Conventional with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components like neoprene boots and self-locking axle nuts to maintain secure connections and protect against contaminants. The SN-8026 model exemplifies these standards with its female inboard joint and conventional outboard joint, tailored for specific GM vehicles.

Technical Specifications and Features

The SN-8026 CV axle shaft includes a neoprene boot that offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a self-locking hex type, measuring 1 1/6 inches (30 mm) across the flats, with a height of 14 mm (5/9 inch) and a length of 34.6 mm (1 1/3 inch). Thread size is M20 x 1.5, ensuring secure fastening. The inboard joint features 34 splines with a female connection style, while the outboard joint has 33 splines with a conventional connection style. The overall compressed length of 20.67 inches (525 mm) matches OEM dimensions for proper installation and operation.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Chevrolet Cobalt, Pontiac G5, and Saturn Ion
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks and contamination with durable neoprene boot
• Restores driveline stability and smooth power transfer to the wheels

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use the included self-locking axle nut to secure the axle shaft properly
• Inspect surrounding suspension and driveline components during replacement
• Torque axle nut to manufacturer specifications to avoid premature loosening
• Check boot condition and joint movement after installation for proper operation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft SN-8026 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot for long-lasting performance. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment accuracy for Chevrolet, Pontiac, and Saturn vehicles.
