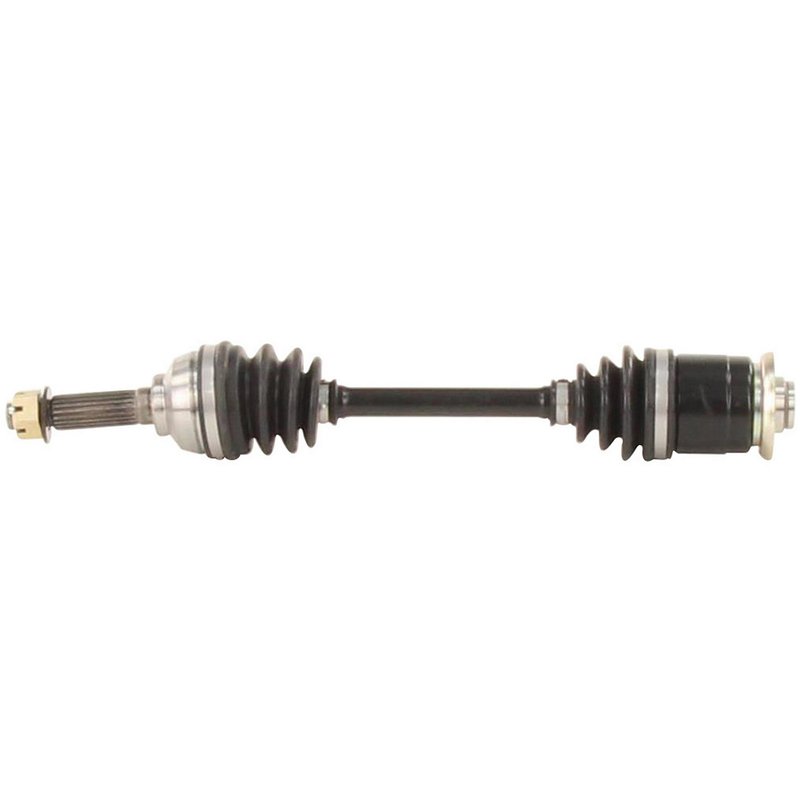

TrakMotive SUZ-7012 CV Axle Assembly - Front Left or Front Right
| Brand | TrakMotive SUZ-7012 |
|---|---|
| Position | Front Right and Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.61 |
| Axle Nut Height (mm) | 15.5 |
| Axle Nut Hex Size (in) | 1.06 |
| Axle Nut Hex Size (mm) | 27 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.23 |
| Axle Nut Length (mm) | 31.17 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M18*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 20 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 17.52 |
| Overall Compressed Length (mm) | 445 |
| Product line | ATV CV Axle Assembly |
| Fits | Suzuki · 52 vehicles |
New replacement part. Built as a fresh CV axle assembly for service replacement.
Neoprene boot. Flexible boot material helps protect the joint from dirt and moisture.
Included axle nut. Supplied with M18 x 1.5 thread, 27 mm hex, and cotter-pin lock.
Cross-references TrakMotive SUZ-7012 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
ATV CV axle assembly for Suzuki
The TrakMotive SUZ-7012 is a new ATV CV axle assembly built for Suzuki front applications with standard-duty fitment. It uses spline connections at both ends, a neoprene boot, and includes an axle nut with cotter-pin locking.
Key features
- Fits Suzuki ATV front left and front right applications listed below.
- New CV axle assembly with 20 inboard splines and 20 outboard splines.
- Neoprene boot material for the axle boot assembly.
- Female inboard joint and conventional outboard joint design.
- Includes axle nut with M18 x 1.5 thread, 27 mm hex size, and cotter-pin lock.
- Part number SUZ-7012 for ordering and cross-reference use.
Detailed description
TrakMotive SUZ-7012 is an ATV CV axle assembly for Suzuki models that require a standard-duty front axle replacement. The axle measures 17.52 inches compressed length and uses spline-style shaft connections on both ends for a direct driveline interface. The neoprene boot material and conventional joint layout support consistent articulation in off-road use, while the included axle nut simplifies matching the correct thread and hex size during service. This part cross-references TrakMotive SUZ-7012 for the same application.
Compatible Suzuki applications include LT-F250 QuadRunner, LT-F250F QuadRunner 4x4, LT-F300F KingQuad 4x4, LT-F500F QuadRunner 4x4, and LT-F160 QuadRunner. Use SUZ-7012 when replacing a front CV axle on these listed Suzuki ATV models.
What it is used for
- Restoring drive to a worn or damaged front CV axle.
- Replacing a booted axle with spline wear or joint looseness.
- Addressing clicking, vibration, or binding during steering and suspension travel.
- Replacing a bent or impact-damaged axle assembly.
- Servicing a Suzuki ATV with the correct axle nut thread and locking style.
Installation notes and tips
Verify the vehicle’s ABS configuration before ordering; this axle is listed for non-ABS applications unless otherwise noted. Confirm the compressed length, spline count, and axle nut specifications against the original part before installation. Fitment includes front left and front right positions only as listed in the application table.
Quality assurance
TrakMotive identifies this axle as a new replacement part and states a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F250F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F250F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F300F KingQuad 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F300F KingQuad 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F500F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2002 | Suzuki | LT-F500F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F250F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F250F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F300F KingQuad 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F300F KingQuad 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F500F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2001 | Suzuki | LT-F500F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F250F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F250F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F300F KingQuad 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F300F KingQuad 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F500F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 2000 | Suzuki | LT-F500F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F250F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F250F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F300F KingQuad 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F300F KingQuad 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F500F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1999 | Suzuki | LT-F500F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F500F QuadRunner 4x4 | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1998 | Suzuki | LT-F500F QuadRunner 4x4 | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1997 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1997 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1997 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1997 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1996 | Suzuki | LT-F160 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1996 | Suzuki | LT-F160 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
| 1996 | Suzuki | LT-F250 QuadRunner | Front Right | Standard Duty; ATV CV Axle Assembly |
| 1996 | Suzuki | LT-F250 QuadRunner | Front Left | Standard Duty; ATV CV Axle Assembly |
