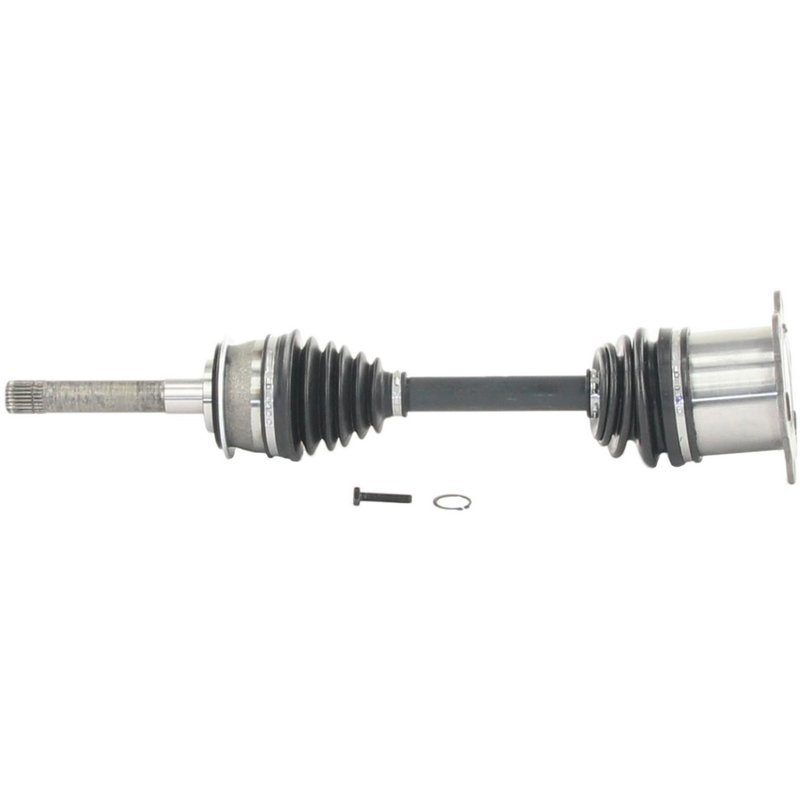

TrakMotive TO-8009 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft TO-8009

The TrakMotive CV Axle Shaft TO-8009 is designed specifically for Toyota T100 models, providing reliable driveline performance. This new axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota T100
• New, not remanufactured
• Neoprene boot material for durability
• Flange type inboard joint and shaft connection
• Male type outboard joint and shaft connection
• Overall compressed length of 617 mm (24.29 in)
• Axle bolt hex size: 13 mm, length: 45.3 mm, thread size: M8*1.25
• Single bolt hole and single outboard shaft bolt
• 26 outboard splines for secure fitment
• Abs tone ring not included
• Axle nut not included

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and robust joint designs, like flange and male connections, to ensure durability and proper drivetrain operation. The TO-8009 model exemplifies this approach by offering a new axle shaft engineered for the Toyota T100, maintaining factory fitment standards.

Technical Description and Specifications

The TO-8009 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, extending the life of the joint. The inboard joint uses a flange type connection, providing a secure and stable attachment to the drivetrain. The outboard joint is a male type, designed to fit precisely with the corresponding components on the Toyota T100. With 26 outboard splines, this axle shaft ensures a tight and reliable fit. The axle bolts have a hex size of 13 mm, a length of 45.3 mm, and a thread size of M8*1.25, matching OEM specifications. The overall compressed length of 617 mm (24.29 inches) is engineered for exact fitment without modification.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota T100
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Addresses grease leakage from torn or damaged boots
• Restores proper driveline function after axle shaft bending or breakage

Installation Notes and Tips

• Ensure compatibility with Toyota T100 model year before installation
• Use proper torque specifications for axle bolts (13 mm hex, M8*1.25 thread)
• Inspect related components such as wheel bearings and seals during replacement
• Grease joints as recommended if applicable, although this part comes pre-lubricated
• Verify the absence of an ABS tone ring as this part does not include one

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8009 is a new, high-quality replacement part manufactured to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in Toyota T100 applications.
