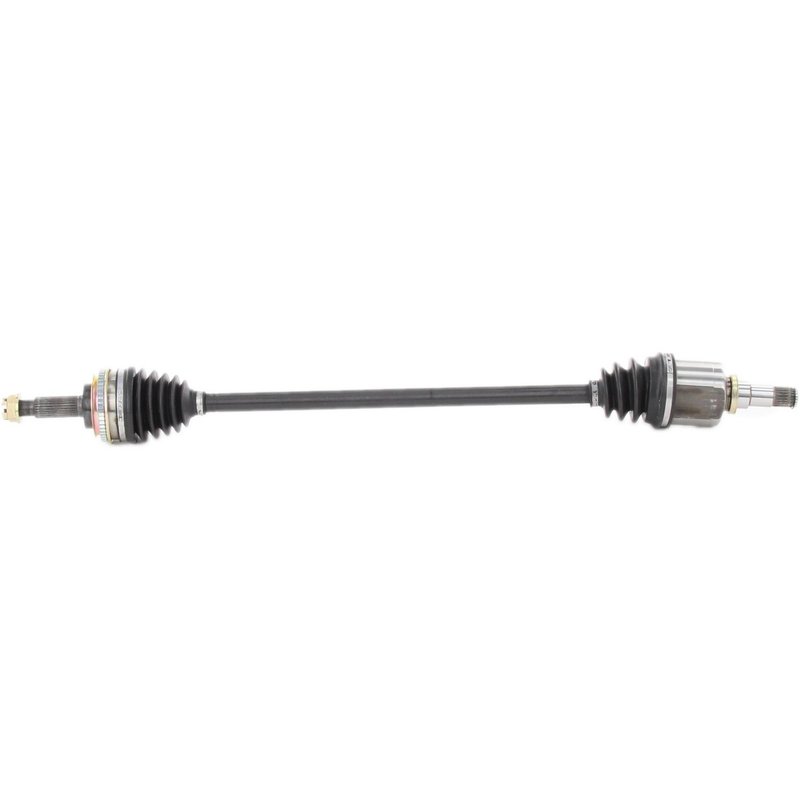

TrakMotive TO-8012 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8012

The TrakMotive CV Axle Shaft TO-8012 is designed for reliable driveline performance in select Chevrolet, Geo, and Toyota vehicles. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for models including the Chevrolet Prizm, Geo Prizm, Toyota Celica, and Toyota Corolla.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: TO-8012
• Compatible with Chevrolet, Geo, and Toyota models: Celica, Corolla, Prizm
• Abs ring with 48 toothed teeth included
• Neoprene boot material for durability
• Hex axle nut included with cotter pin locking
• Overall compressed length: 36.5 inches (927 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match factory specifications. This line includes axle shafts designed with quality materials such as neoprene boots and ABS tone rings to maintain vehicle safety and performance. The TO-8012 model exemplifies this line by incorporating a toothed ABS ring and a cotter pin locking axle nut, ensuring secure installation and reliable operation in compatible vehicles.

Technical Specifications and Features

The TO-8012 CV axle shaft features a 48-tooth ABS ring type that is included with the assembly, supporting accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 5/6 inches (21 mm) and a length of 1 1/3 inches (34.6 mm). It uses an M22x1.5 thread size and locks with a cotter pin for added security. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The inboard joint is male type with 23 splines, while the outboard joint is conventional with 26 splines, ensuring compatibility with the specified vehicle models. The overall compressed length of 36.5 inches (927 mm) fits the driveline requirements of the Chevrolet Prizm, Geo Prizm, Toyota Celica, and Toyota Corolla.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chevrolet, Geo, and Toyota vehicles
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included hex axle nut and cotter pin locking

Installation Notes and Tips

• Ensure compatibility with Chevrolet Celica, Geo Prizm, Toyota Corolla, and related models before installation
• Use proper torque specifications for the M22x1.5 axle nut and secure with the cotter pin
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Verify ABS sensor alignment with the toothed ABS ring to maintain accurate readings
• Handle the neoprene boot carefully to avoid damage during installation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8012 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in compatible Chevrolet, Geo, and Toyota vehicles.
