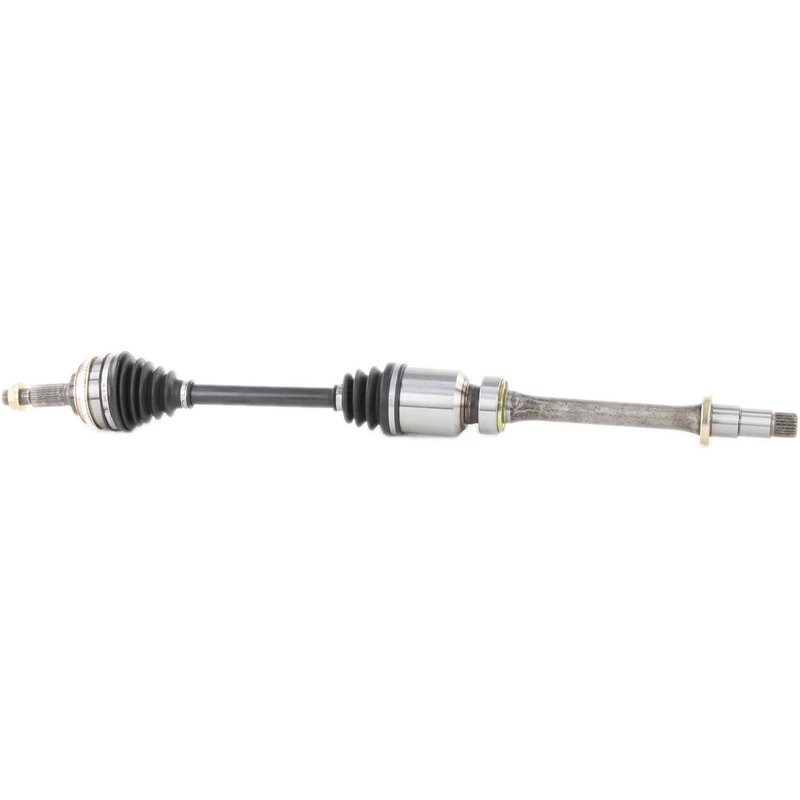

TrakMotive TO-8016 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft TO-8016

The TrakMotive CV Axle Shaft TO-8016 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and smooth operation for models like the Toyota Camry and Lexus ES300.

• Compatible with Lexus and Toyota models including Avalon, Camry, ES300, Sienna, and Solara
• Includes a neoprene boot for enhanced durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring for accurate wheel speed sensing
• Features a hex head axle nut with M22*1.5 thread size and standard locking type
• Overall compressed length of 37.4 inches (950 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes quality materials such as neoprene boots and precise spline counts to ensure compatibility and longevity. The TO-8016 model exemplifies these standards with its robust construction and fitment accuracy for various Lexus and Toyota vehicles.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 24 splines and a conventional outboard joint with 30 splines, providing secure shaft connections. The included ABS tone ring with 48 teeth supports vehicle stability control systems. The axle nut is a hex type measuring 1 1/6 inches (29.8 mm) across flats, with a height of 3/5 inches (15 mm) and length of 1 1/3 inches (34.4 mm), ensuring proper torque and locking.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus ES300 and Toyota Camry
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Addresses axle nut thread damage or loss of locking capability
• Prevents grease leakage and contamination with durable neoprene boot

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. Use proper torque specifications for the M22*1.5 axle nut to maintain secure fitment. Inspect the CV boot for any damage during installation and replace if necessary. It is recommended to use OEM or equivalent tools to avoid damage to the hex head axle nut and splines.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8016 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and comes with a standard axle nut locking mechanism. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
