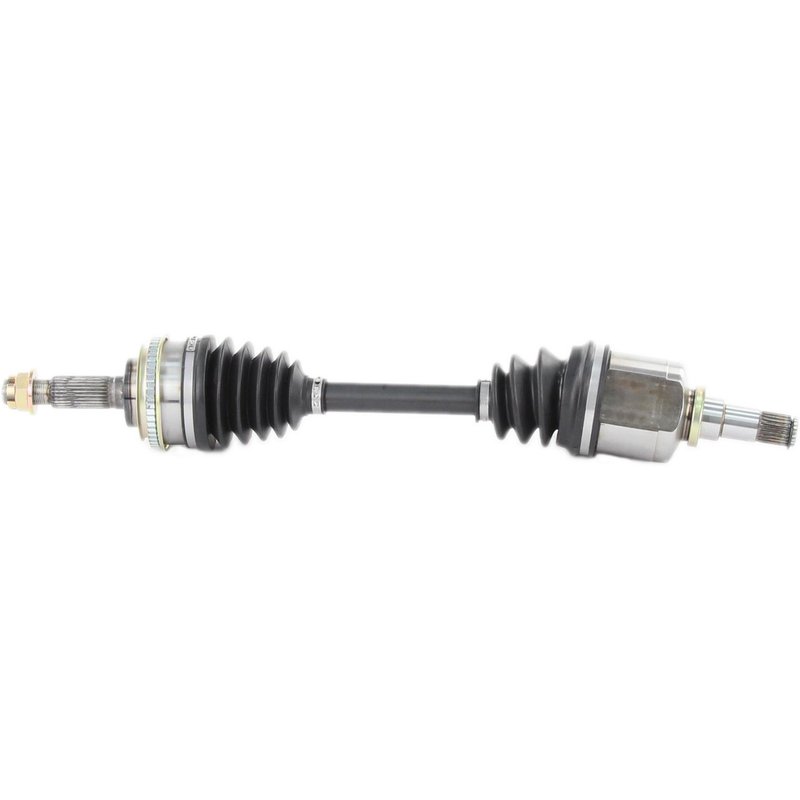

TrakMotive TO-8018 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8018

The TrakMotive CV Axle Shaft TO-8018 is designed for reliable driveline performance in select Chevrolet, Geo, and Toyota vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and durability for models like the Toyota Celica, Corolla, and Geo Prizm.

• Compatible with Chevrolet, Geo, and Toyota Celica, Corolla, and Prizm models
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 48-tooth ABS ring and included tone ring for accurate wheel speed sensing
• Features a hex head axle nut with cotter pin locking for secure installation
• Overall compressed length of 24.06 inches (611 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components that maintain driveline integrity. This line emphasizes quality materials such as neoprene boots and precise spline counts—23 inboard and 26 outboard splines—to ensure smooth rotational movement and long service life. The TO-8018 part exemplifies these standards with its robust construction and included axle nut designed for secure attachment.

Technical Specifications and Features

The TO-8018 CV axle shaft features a toothed ABS ring with 48 teeth and an included tone ring, supporting accurate ABS sensor readings. The axle nut is a hex type measuring 1 1/6 inches (30 mm) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M22x1.5 thread size and locks with a cotter pin for added safety. The inboard joint is a male type with 23 splines, while the outboard joint is conventional with 26 splines, ensuring compatibility with the specified vehicle models. The neoprene boot material offers resistance to wear and environmental factors, extending the axle's operational life.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts in Chevrolet, Geo, and Toyota Celica, Corolla, and Prizm vehicles
• Addresses issues such as axle vibration, clicking noises during turns, and grease leakage from torn boots
• Restores proper ABS sensor function with the included tone ring and ABS ring
• Eliminates axle nut loosening problems with the cotter pin locking mechanism
• Improves driveline stability and power transfer efficiency

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the TO-8018 part number matches the original axle shaft specifications for your Chevrolet, Geo, or Toyota model. Use the included axle nut and cotter pin to secure the shaft properly, tightening to manufacturer torque specifications. Inspect the neoprene boot for any damage during installation and replace if necessary. Proper alignment of the splines is critical to avoid premature wear or driveline noise.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8018 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot and all necessary hardware for installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in compatible Chevrolet, Geo, and Toyota vehicles.
