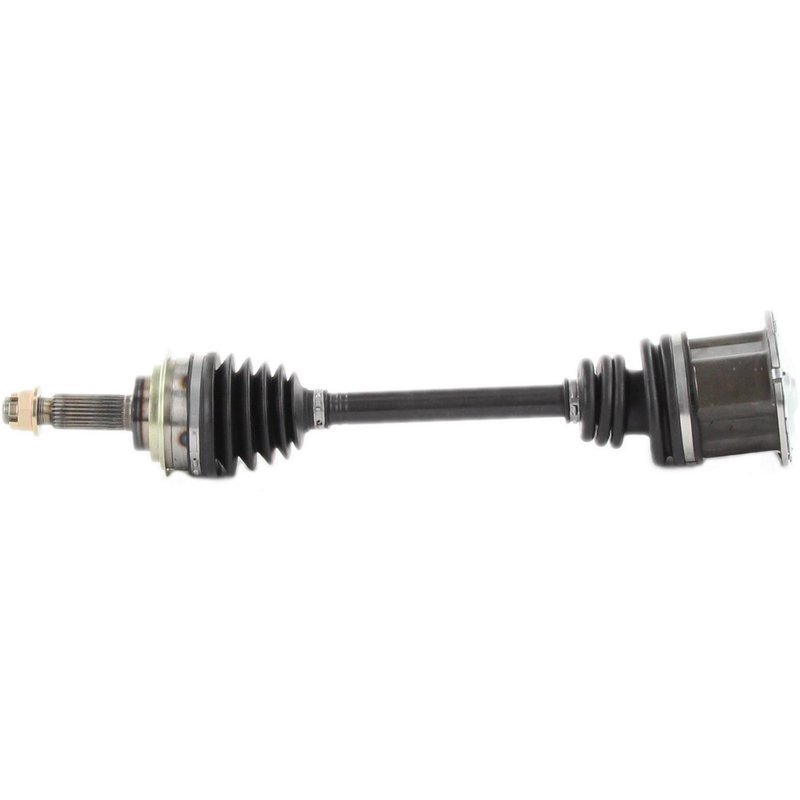

TrakMotive TO-8023 CV Axle Shaft - Front Left or Front Right

Overview of the TrakMotive CV Axle Shaft TO-8023

The TrakMotive CV Axle Shaft TO-8023 is designed specifically for Toyota Camry and Celica models, providing reliable driveline performance. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Camry and Celica models
• Includes axle nut with cotter pin locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Flange type inboard joint and conventional outboard joint for smooth operation
• Overall compressed length of 21.3 inches (541 mm) for precise fitment
• Axle nut hex size of 1 1/6 inches (30 mm) with a height of 5/6 inches (21 mm)
• New, not remanufactured, ensuring long-lasting performance

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, such as the Toyota Camry and Celica, and features components like flange-style inboard joints and conventional outboard joints. The use of neoprene boots and included axle nuts with cotter pin locking mechanisms highlights the attention to durability and secure fitment within this product line.

Detailed Product Description

The TO-8023 CV Axle Shaft from TrakMotive is a new replacement part engineered for Toyota Camry and Celica vehicles. It features a flange-type inboard joint and a conventional outboard joint, connected by a shaft with 26 outboard splines. The neoprene boot material offers resistance to wear and environmental factors, helping to maintain joint integrity over time. The included axle nut has a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 5/6 inches (21 mm), and a thread size of M22*1.5. The axle nut uses a cotter pin locking type to ensure secure fastening during operation. The overall compressed length of 21.3 inches (541 mm) ensures proper fitment and alignment within the driveline assembly.

Common Applications and Issues Addressed

• Replacement of worn or damaged CV axle shafts on Toyota Camry and Celica
• Elimination of clicking or popping noises during turns caused by joint wear
• Resolution of vibration or shuddering issues related to axle imbalance
• Repair of torn or leaking CV boots to prevent grease loss and contamination
• Restoration of driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8023, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the included cotter pin to prevent loosening. Verify the neoprene boot is properly seated to avoid premature wear. The flange-type inboard joint requires correct alignment with the transmission flange, while the conventional outboard joint should be carefully connected to the wheel hub. It is recommended to inspect related suspension and driveline components during installation for any additional wear or damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. TrakMotive ensures consistent quality through rigorous testing and material selection. While specific warranty details are not provided here, new parts typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
