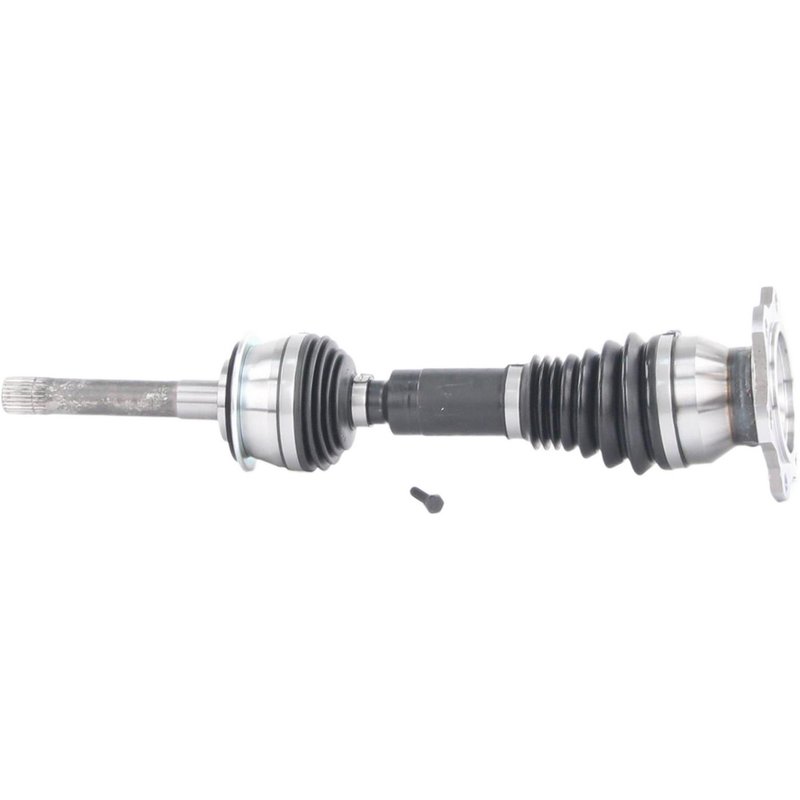

TrakMotive TO-8024XTT CV Axle Shaft - Front Left or Front Right

Reliable CV Axle Shaft for Toyota 4Runner and Pickup

The TrakMotive Extended Travel CV Axle Shaft TO-8024XTT is engineered to provide durable driveline performance for Toyota 4Runner and Pickup models. Designed for extended travel applications, this CV axle shaft ensures reliable power transfer and enhanced suspension articulation.

• Compatible with Toyota 4Runner and Pickup vehicles
• Neoprene boot material for improved durability and flexibility
• Inboard joint features a flange type with bolt-on shaft connection
• Outboard joint includes a raised handle with small bolt and spline shaft connection
• Overall compressed length of 527 mm (20.75 inches) for extended travel fitment
• Axle bolt specifications: 13 mm hex size, 45.3 mm length, M8*1.25 thread size
• New, not remanufactured, ensuring fresh components

About the Extended Travel CV Axle Shaft Line

The Extended Travel CV Axle Shaft line by TrakMotive is designed specifically for vehicles requiring additional axle length to accommodate lifted suspensions or increased wheel travel. This product line focuses on maintaining driveline integrity and smooth operation under extended suspension movement, making it suitable for off-road and modified Toyota 4Runner and Pickup applications.

Product Details and Specifications

The TO-8024XTT CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint uses a flange type connection with a bolt-on shaft style, secured by six bolt holes, providing a solid and reliable attachment. The outboard joint connects via a spline shaft with 26 splines and includes a raised handle with a small bolt for secure fitment. This axle shaft does not include an ABS tone ring or axle nut, and it comes new to ensure optimal performance. The axle bolts required have a 13 mm hex size, 45.3 mm length, and M8*1.25 thread size, with one bolt hole on the outboard shaft and one on the inboard flange.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota 4Runner and Pickup
• Upgrading to accommodate extended suspension travel in lifted vehicles
• Resolving axle vibration or clicking noises during turns
• Addressing boot damage or joint wear to prevent driveline failure
• Ensuring proper axle length for modified suspension setups

Installation Notes and Tips

Ensure compatibility with your specific Toyota 4Runner or Pickup model before installation. The axle bolts required are not included, so verify you have the correct M8*1.25 thread size bolts with 13 mm hex heads and 45.3 mm length. Proper torque specifications should be followed to secure the inboard flange and outboard spline connections. Inspect the surrounding components for wear during installation to maintain overall driveline health.

Quality Assurance and Warranty

The TrakMotive TO-8024XTT CV axle shaft is a new component manufactured to meet OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in demanding automotive applications.
