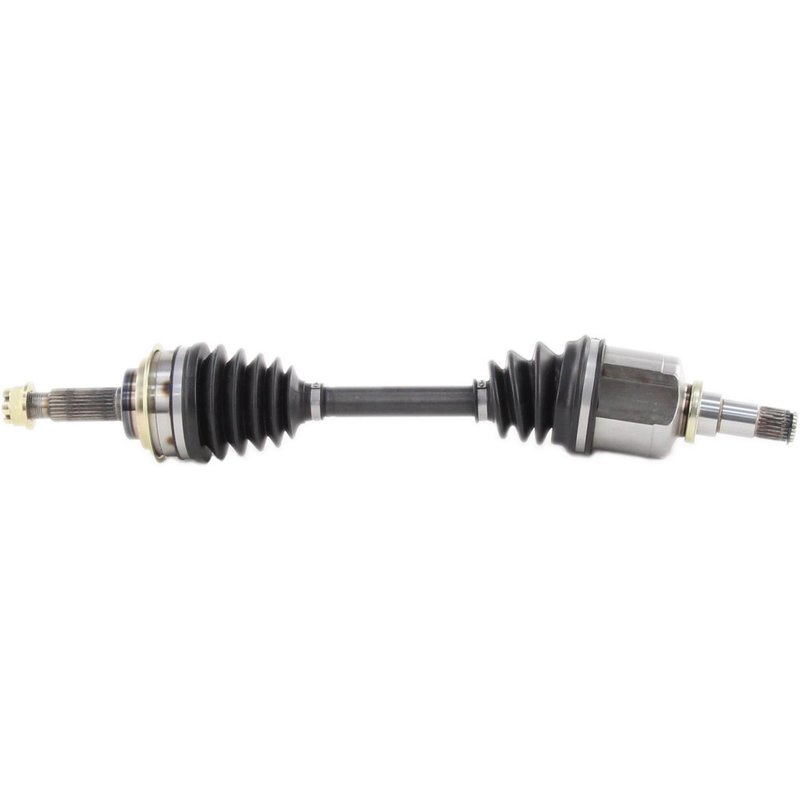

TrakMotive TO-8026 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8026

The TrakMotive CV Axle Shaft TO-8026 is designed for reliable driveline performance in select Chevrolet, Geo, and Toyota vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the Toyota Corolla, Chevrolet Nova, and Geo Prizm.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: TO-8026
• Compatible with Chevrolet, Geo, Toyota (Corolla, Nova, Prizm)
• Overall compressed length: 23.31 inches (592 mm)
• Neoprene boot material for durability
• Includes axle nut with cotter pin locking type
• Axle nut hex size: 1 1/6 inches (30 mm)
• Inboard joint type: Male with 23 splines
• Outboard joint type: Conventional with 26 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and properly sized axle nuts, to ensure long-lasting performance in front-wheel-drive and all-wheel-drive applications. The TO-8026 model is part of this line, offering a direct replacement solution for specific Chevrolet, Geo, and Toyota vehicles.

Technical Specifications and Features

The TO-8026 CV axle shaft features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The inboard joint is a male type with 23 splines, while the outboard joint is conventional with 26 splines, ensuring compatibility with the vehicle’s drivetrain. The included axle nut has a hex head measuring 1 1/6 inches (30 mm) and a height of 5/6 inches (21 mm), secured with a cotter pin locking mechanism for added safety. The overall compressed length of 23.31 inches (592 mm) matches OEM dimensions for proper installation and operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Corolla, Chevrolet Nova, and Geo Prizm
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included cotter pin locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8026, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify spline engagement on both inboard and outboard joints for proper fit. Inspect the surrounding components such as wheel bearings and suspension parts during installation to avoid future driveline issues. The neoprene boot should be checked for proper seating to maintain joint protection.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo quality control inspections to ensure durability and fitment accuracy. While specific warranty details are not provided here, TrakMotive typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
