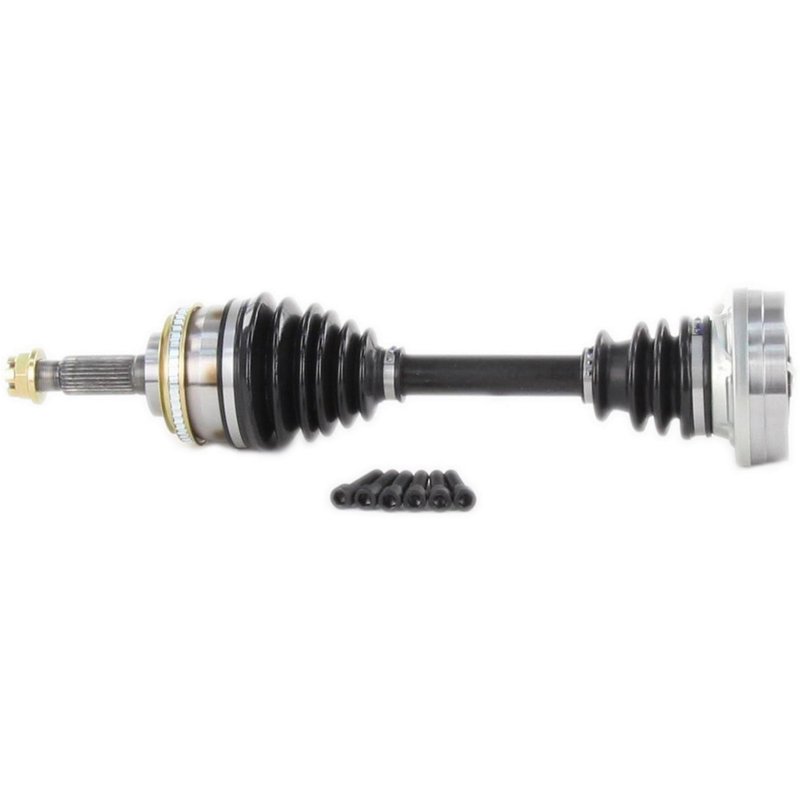

TrakMotive TO-8030 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft TO-8030

The TrakMotive CV Axle Shaft TO-8030 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Camry, Celica, and ES250, this axle shaft ensures precise fitment and durability.

• Compatible with Lexus and Toyota Camry, Celica, and ES250 models
• Includes ABS tone ring with 48 toothed abs ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a hex head axle nut featuring a cotter pin locking mechanism
• Inboard joint uses a bolt-on connection with six bolt holes for secure installation
• Overall compressed length of 20.2 inches (513 mm) for proper fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features like bolt-on inboard joints and conventional outboard joints, ensuring compatibility and ease of installation for vehicles such as the Lexus Camry and Toyota Celica. The inclusion of ABS tone rings and neoprene boots highlights the line’s attention to both performance and longevity.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The axle nut is a hex head type measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm, secured by a cotter pin locking system to prevent loosening. The inboard joint is bolt-on style with six bolt holes and uses M10*1.5 thread size bolts with Allen heads, measuring 55 mm in length. The outboard joint is conventional with 26 splines, providing a secure shaft connection. The neoprene boot material offers resistance to wear and environmental damage, extending the service life of the axle shaft.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus Camry, Toyota Celica, and ES250
• Resolves issues related to ABS sensor errors due to faulty or missing tone rings
• Addresses axle nut loosening problems with a secure cotter pin locking mechanism
• Eliminates boot tears and leaks that cause grease loss and joint contamination
• Restores driveline smoothness and reduces vibrations caused by joint wear

Installation Notes and Tips

Ensure compatibility by verifying vehicle make and model before installation. Use the included axle nut and cotter pin to secure the shaft properly. Torque specifications should be followed according to manufacturer guidelines. The bolt-on inboard joint requires tightening of six M10 bolts with an Allen wrench. Inspect the neoprene boot for proper seating to prevent premature wear. It is recommended to check ABS sensor alignment after installation to confirm tone ring functionality.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8030 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and bolts for a complete installation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliability and performance in compatible Lexus and Toyota vehicles.
