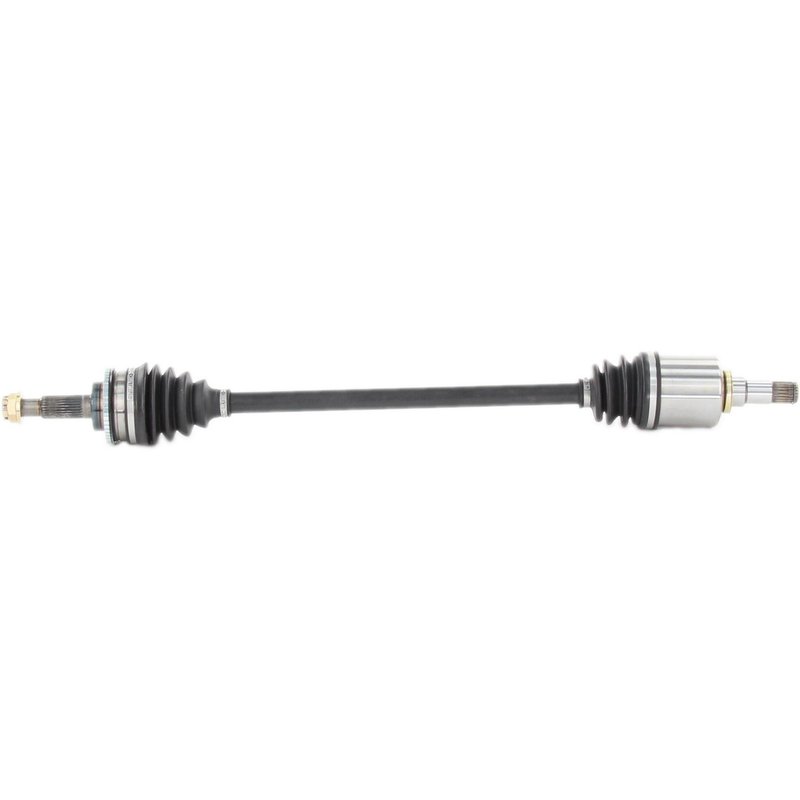

TrakMotive TO-8031 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8031

The TrakMotive CV Axle Shaft TO-8031 is engineered for reliable driveline performance in Toyota Paseo and Tercel models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Toyota Paseo and Tercel models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 33.66 inches (855 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This CV Axle Shaft line features components with precise spline counts and durable materials, ensuring compatibility and longevity for Toyota vehicles such as the Paseo and Tercel. The inclusion of a toothed ABS ring and neoprene boots highlights the line's attention to both performance and protection.

Technical Specifications and Features

This CV Axle Shaft (part number TO-8031) includes a 48-tooth ABS ring designed for accurate wheel speed sensor readings. The ABS tone ring is integrated and toothed, supporting anti-lock braking system functionality. The axle nut is a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It features an M22 x 1.5 thread size and a cotter pin locking mechanism to secure the assembly. The neoprene boot material provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint uses a male connection style with 23 splines, while the outboard joint is conventional with 26 splines. The overall compressed length of 33.66 inches (855 mm) ensures proper fitment within the driveline system.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Paseo and Tercel
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures axle assembly with included hex nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8031, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boots for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Toyota Paseo and Tercel models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8031 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and cotter pin for secure installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
