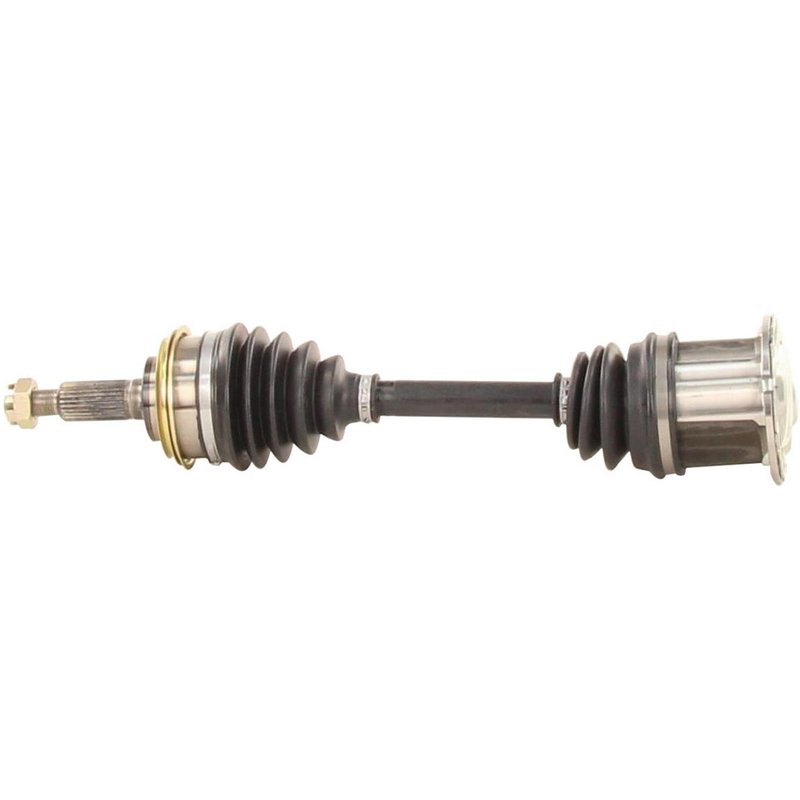

TrakMotive TO-8035 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8035 for Toyota Corolla

The TrakMotive CV Axle Shaft TO-8035 is designed specifically for Toyota Corolla models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Toyota Corolla vehicles
• Includes axle nut with cotter pin locking type
• Neoprene boot material for durability and protection
• Inboard joint features flange connection style
• Outboard joint uses conventional connection with 26 splines
• Overall compressed length of 19.61 inches (498 mm)
• Axle nut specifications: hex head, 30 mm hex size, 17 mm height, M19x1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fitment and durability. This line emphasizes compatibility with specific vehicle makes and models, such as the Toyota Corolla, ensuring that each axle shaft meets OEM standards for joint types, boot materials, and connection styles.

Technical Description and Specifications

The TO-8035 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the internal joints. The inboard joint uses a flange connection style, while the outboard joint is conventional with 26 splines, designed to match the Toyota Corolla's driveline requirements. The included axle nut has a hex head type with a 30 mm hex size and a height of 17 mm, secured by a cotter pin locking mechanism to maintain safe and secure installation. The overall compressed length of 19.61 inches (498 mm) ensures proper fit and function within the vehicle's suspension and drivetrain system.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Corolla
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by maintaining boot integrity with durable neoprene material
• Restores proper wheel alignment and driveline performance

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8035 on a Toyota Corolla, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Inspect the flange and conventional joint connections for proper seating and alignment. Use appropriate tools for the 30 mm hex axle nut to avoid damage. Verify the neoprene boot is properly seated to prevent contamination and premature wear.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for fit and function. TrakMotive provides quality assurance through rigorous manufacturing controls. Please refer to the manufacturer or distributor for specific warranty details applicable to the TO-8035 part number.
