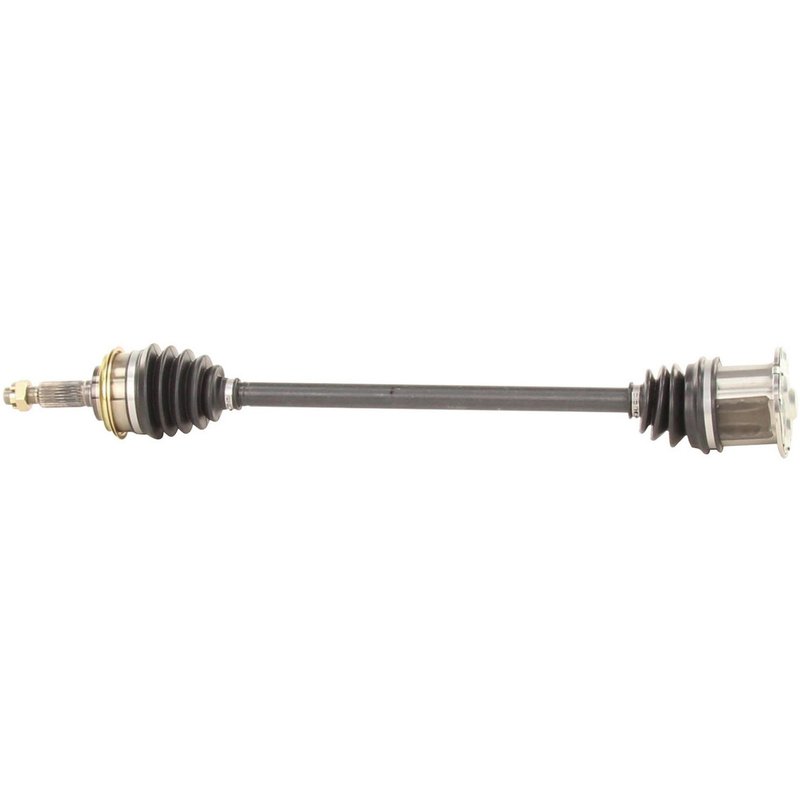

TrakMotive TO-8036 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8036 for Toyota Corolla

The TrakMotive CV Axle Shaft TO-8036 is designed specifically for Toyota Corolla models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Toyota Corolla models
• New, not remanufactured, for consistent quality
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced joint protection
• Overall compressed length of 30.47 inches (774 mm)
• Hex head axle nut with 30 mm (1 1/6 inch) hex size
• Inboard flange joint and conventional outboard joint types
• 26 outboard splines for secure shaft connection

Detailed Specifications of the TO-8036 CV Axle Shaft

This TrakMotive CV Axle Shaft (part number TO-8036) features a neoprene boot that offers resistance to wear and environmental factors, helping to maintain joint integrity. The inboard joint uses a flange connection style, while the outboard joint is conventional, ensuring compatibility with the Toyota Corolla's driveline setup. The included axle nut is a hex head type measuring 30 mm across flats, with a height of 17 mm and a length of 34.6 mm. It uses an M19x1.5 thread size and secures with a cotter pin locking mechanism for added safety. The shaft has 26 outboard splines, providing a secure fit and smooth power transfer.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to meet OEM specifications. This line emphasizes precise fitment and durable materials, such as neoprene boots and robust joint designs, to ensure long-lasting performance in driveline applications. The TO-8036 is part of this line, tailored for Toyota Corolla vehicles requiring dependable CV axle replacements.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Corolla
• Resolves clicking or popping noises during turns caused by joint wear
• Eliminates vibration or shuddering from axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity
• Addresses axle nut loosening issues with included cotter pin locking nut

Installation Notes and Tips

When installing the TrakMotive TO-8036 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. The neoprene boot should be inspected for proper seating to avoid contamination. Verify the flange and conventional joint connections align correctly with the Toyota Corolla's hub and transmission interfaces. It is recommended to replace axle nuts with the included new nut to maintain secure fastening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8036 is a new component manufactured to meet or exceed OEM standards for fit and function. While specific warranty details are not provided, TrakMotive products typically undergo quality control inspections to ensure reliability and durability in automotive driveline applications.
