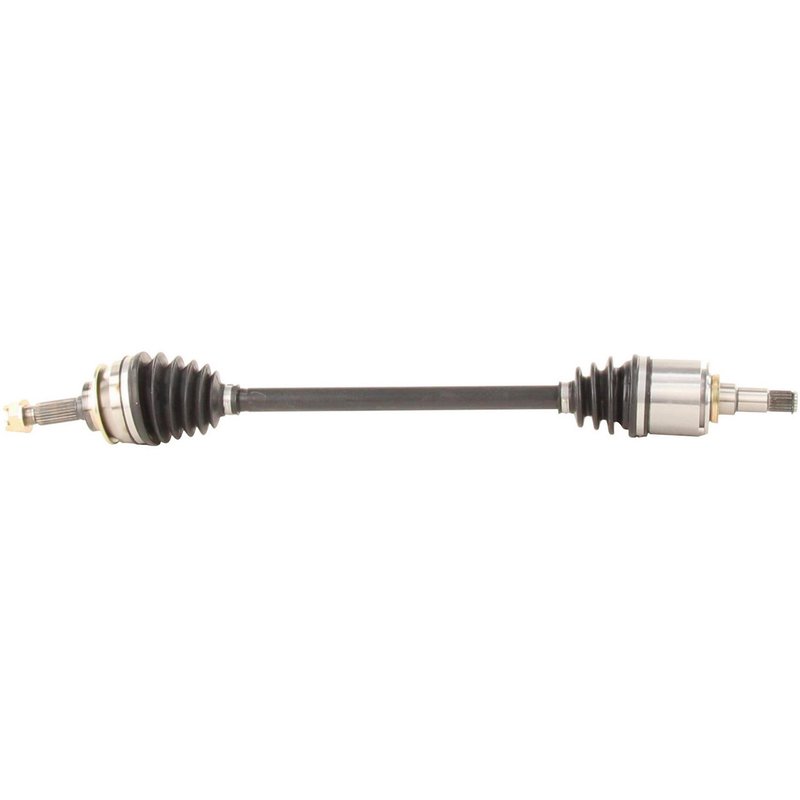

TrakMotive TO-8037 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8037 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.67 |
| Overall Compressed Length (mm) | 779 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 6 vehicles |
New axle shaft. Built as a direct replacement for driveline and CV component applications.
Neoprene boot. Helps resist wear while keeping the joint protected.
Included axle nut. Comes with a hex nut and cotter pin locking type.
Cross-references Bosch 7403, Cardone New 66-5002 and Cardone Reman 60-5002 for the same application. See all 23.
CV Axle Shaft for Toyota Tercel
TrakMotive TO-8037 is a new CV axle shaft for front left applications on 1983-1988 Toyota Tercel models. It is built with a neoprene boot, a hex axle nut, and the included axle nut uses an M20 x 1.5 thread with cotter pin locking.
As part of the TrakMotive CV Axle Shaft line, this replacement axle is built for direct driveline service on the Toyota Tercel platform. The TO-8037 is listed for non-ABS use, and ABS axles fit non-ABS applications unless otherwise noted.
Key Features
- Brand: TrakMotive
- Part number: TO-8037
- New CV axle shaft for front left installation
- Fits 1983-1988 Toyota Tercel, front left
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type
- 20 inboard splines and 23 outboard splines
- Overall compressed length: 30.67 in. (779 mm)
- Axle nut included with hex head, M20 x 1.5 thread, and cotter pin locking
- No ABS tone ring included
Detailed Description
TrakMotive TO-8037 is a CV axle shaft for 1983-1988 Toyota Tercel front left applications. It measures 30.67 inches compressed and uses a male inboard connection with a conventional outboard joint, making it a direct replacement option for the specified driveline layout. The included axle nut features a 30 mm hex size, M20 x 1.5 thread, and cotter pin locking style. This part cross-references Bosch 7403 for the same application.
What This Part Helps Address
- Clicking or popping from a worn outer CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise caused by spline or joint wear
- Front left axle replacement on a Toyota Tercel
Installation Notes and Tips
Verify front left fitment, spline count, and axle length before installation on your Toyota Tercel. Confirm the axle nut thread size and locking style match the vehicle hub hardware. Inspect the hub, seals, and surrounding suspension components during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and backs it with a limited lifetime warranty. The company states that it is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1988 | Toyota | Tercel | Wagon | Front Left | CV Axle Shaft |
| 1987 | Toyota | Tercel | Wagon | Front Left | CV Axle Shaft |
| 1986 | Toyota | Tercel | — | Front Left | CV Axle Shaft |
| 1985 | Toyota | Tercel | — | Front Left | CV Axle Shaft |
| 1984 | Toyota | Tercel | — | Front Left | CV Axle Shaft |
| 1983 | Toyota | Tercel | — | Front Left | CV Axle Shaft |
