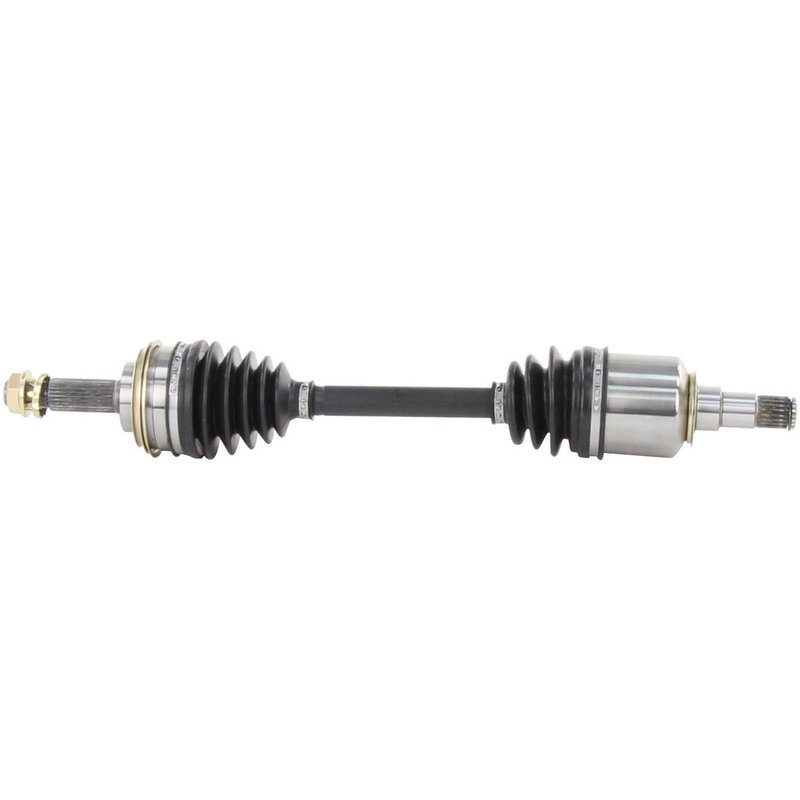

TrakMotive TO-8048 CV Axle Shaft - Front Left, Front Right or Rear Left
| Brand | TrakMotive TO-8048 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.78 |
| Overall Compressed Length (mm) | 604 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 12 vehicles |
New unit. Built as a new CV axle shaft for dependable replacement.
Neoprene boot. Helps protect the joint with durable, flexible material.
Axle nut included. Saves time by providing the matching nut in the box.
Cross-references Cardone Reman 60-5020, TrakMotive TO-8048 and 80-3750 for the same application. See all 15.
CV Axle Shaft for Toyota Applications
TrakMotive TO-8048 is a new CV axle shaft built for specific Toyota front and rear-left applications. It is engineered with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed driveline configurations.
This CV axle shaft fits 1992-1995 Toyota MR2 rear left with ABS, 1990-1993 Toyota Celica front left, and 1986-1989 Toyota Celica front right. The included axle nut uses an M22 x 1.5 thread and a 29.8 mm hex size for service replacement work.
Key Features
- TrakMotive CV Axle Shaft, part number TO-8048
- New replacement axle for driveline and axle service
- Neoprene boot material for CV joint protection
- Male inboard shaft connection with 20 inboard splines
- Conventional outboard shaft connection with 26 outboard splines
- Overall compressed length: 23.78 in. (604 mm)
- Axle nut included with standard locking type
- ABS tone ring not included
Detailed Description
TrakMotive TO-8048 is a CV axle shaft for Toyota MR2 and Toyota Celica driveline repair. It is a new axle assembly with a neoprene boot and the specified spline counts, shaft connections, and compressed length needed for the listed front and rear-left positions. The axle nut is included, and the axle is supplied without an ABS tone ring.
TrakMotive positions the CV Axle Shaft line as a direct-fit driveline solution for service replacement. TO-8048 cross-references Cardone Reman 60-5020 for the same application. This part number is commonly searched as TrakMotive TO-8048 for Toyota Celica front axle replacement and Toyota MR2 rear left axle service.
What It Helps Fix
- Clicking or popping from a worn CV joint during turns
- Vibration caused by a damaged or worn axle shaft
- Torn boot conditions that can lead to grease loss and joint wear
- Axle noise after driveline wear in Toyota Celica or MR2 applications
- Service replacement needs for front left, front right, or rear left axle positions
Installation Notes and Tips
Verify the vehicle position, spline count, axle nut thread size, and compressed length before installation. This axle is listed for 1992-1995 Toyota MR2 rear left with ABS, 1990-1993 Toyota Celica front left, and 1986-1989 Toyota Celica front right. Confirm the axle nut specification of M22 x 1.5 and 29.8 mm hex size during service.
Because ABS tone ring is not included, compare the original axle configuration before removal. Use the vehicle’s service procedure for torque and hub hardware checks during installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The TO-8048 is a new part built for the listed Toyota fitments and driveline specifications.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Toyota | MR2 | — | — | Rear Left | w/ ABS; CV Axle Shaft |
| 1994 | Toyota | MR2 | — | — | Rear Left | w/ ABS; CV Axle Shaft |
| 1993 | Toyota | Celica | ST | Automatic | Front Left | CV Axle Shaft |
| 1993 | Toyota | MR2 | — | — | Rear Left | w/ ABS; CV Axle Shaft |
| 1992 | Toyota | Celica | ST | Automatic | Front Left | CV Axle Shaft |
| 1992 | Toyota | MR2 | — | — | Rear Left | w/ ABS; CV Axle Shaft |
| 1991 | Toyota | Celica | ST | Automatic | Front Left | CV Axle Shaft |
| 1990 | Toyota | Celica | ST | Automatic | Front Left | CV Axle Shaft |
| 1989 | Toyota | Celica | GTS | — | Front Right | CV Axle Shaft |
| 1988 | Toyota | Celica | GTS | — | Front Right | CV Axle Shaft |
| 1987 | Toyota | Celica | GTS | — | Front Right | CV Axle Shaft |
| 1986 | Toyota | Celica | GTS | — | Front Right | CV Axle Shaft |
